Product Details
Place of Origin: Guangdong, China
Brand Name: GS
Model Number: M40C30 V2.1 50KV
Document: Product Brochure PDF
Payment & Shipping Terms
Price: Negotiable
Delivery Time: 6-8
Payment Terms: T/T
Supply Ability: 100
|
Motor Model:
|
M40C30 IPE V2.1
|
Motor Size:
|
D:152 X65 Mm
|
Propeller Mounting Holes:
|
D:50 M6x6
|
Shaft Diameter:
|
IN: 15 Mm
|
Bearing:
|
HR30202]/3202A-2RZTN
|
Cable Length:
|
150 Mm (extended Enameled Wires)
|
Rotor Balance:
|
≤20 Mg
|
Motor Balance:
|
≤30 Mg
|
Motor Mounting Holes:
|
D:50 M6x6
|
Disruptive Test:
|
500 V
|
|
Motor Model:
|
M40C30 IPE V2.1
|
|
Motor Size:
|
D:152 X65 Mm
|
|
Propeller Mounting Holes:
|
D:50 M6x6
|
|
Shaft Diameter:
|
IN: 15 Mm
|
|
Bearing:
|
HR30202]/3202A-2RZTN
|
|
Cable Length:
|
150 Mm (extended Enameled Wires)
|
|
Rotor Balance:
|
≤20 Mg
|
|
Motor Balance:
|
≤30 Mg
|
|
Motor Mounting Holes:
|
D:50 M6x6
|
|
Disruptive Test:
|
500 V
|
| Attribute | Value |
|---|---|
| Motor Model | M40C30 IPE V2.1 |
| Motor Size | D:152 x65 mm |
| Propeller Mounting Holes | D:50 M6x6 |
| Shaft Diameter | IN: 15 mm |
| Bearing | HR30202]/3202A-2RZTN |
| Cable Length | 150 mm (extended Enameled wires) |
| Rotor Balance | ≤20 mg |
| Motor Balance | ≤30 mg |
| Motor Mounting Holes | D:50 M6x6 |
| Disruptive test | 500 V |
| RPMNV | 50 KV |
| Nominal Voltage | 24S lipo battery |
| No Load Current | 2.3A/30V |
| Internal resistance | 20.3mΩ |
| Motor Weight | 2789 g |
| Product Boxed Weight | 4008g(260x210x120 mm) |
| Maximum Current | 197.2 A |
| Maximum Power | 19089W |
| Maximum thrust | 70 kg |
| Maximum Torque | 47.1 Nm |
| Recommended EsC | MAD AMPX 200A(12-24S) |
| Recommended Propellers | 47x13 |

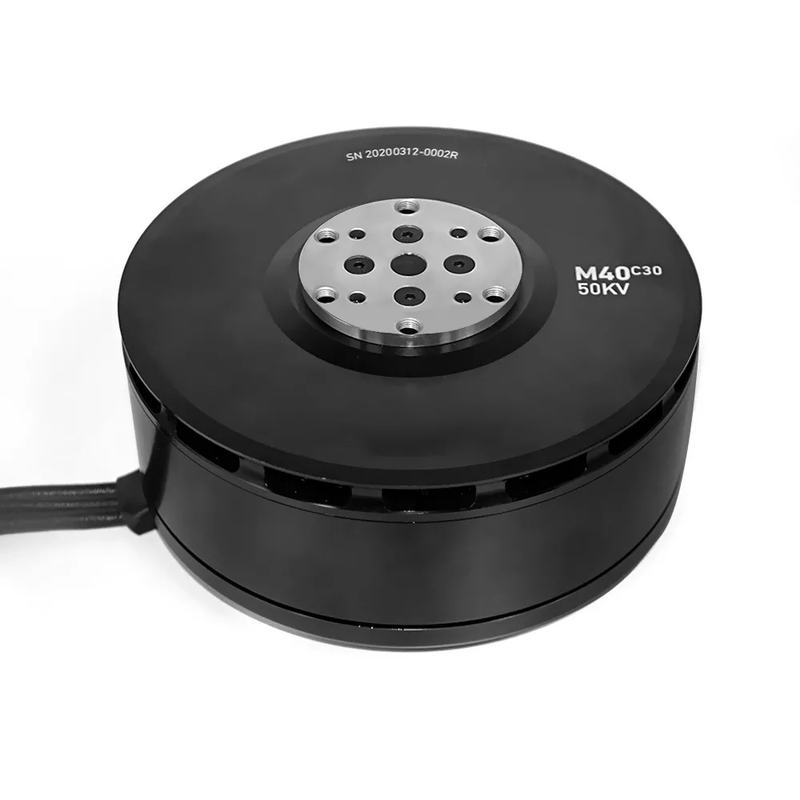

The M40C30 19KW large brushless motor is designed for paramotor paragliders and cargo transport applications. This industrial-grade motor is engineered for unmanned VTOL/Multi-Copter (Hexa, Octo) configurations and Personal Aerial Vehicles (PAV).
