Product Details
Place of Origin: Guangdong, China
Brand Name: GS

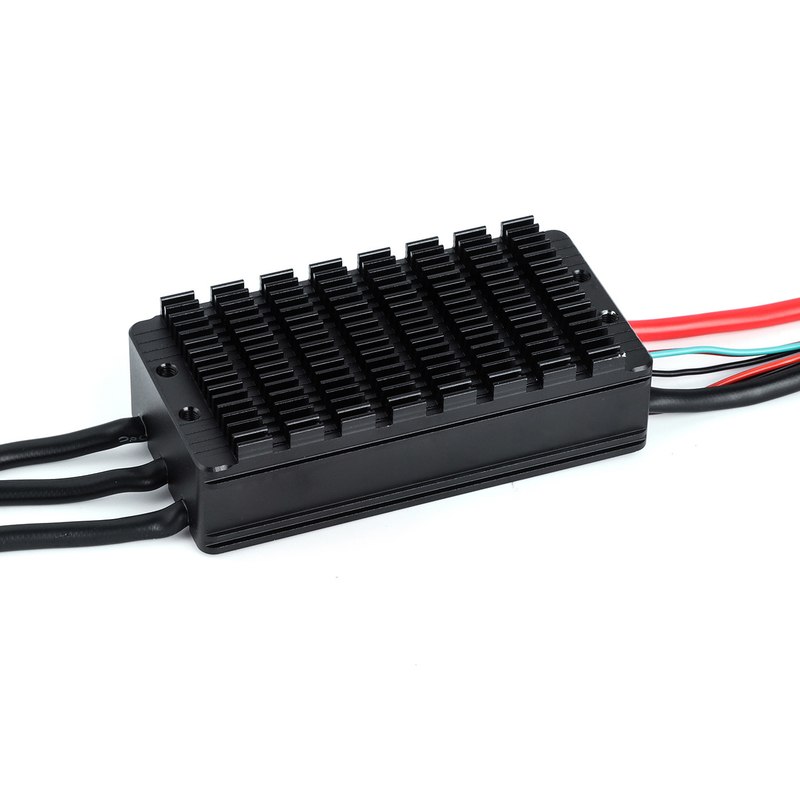

Model Number: AMPX 120A (5-14S)
Document: Product Brochure PDF
Payment & Shipping Terms
Price: Negotiable
|
Model:
|
AMPX 120A ESC
|
BEC:
|
5V/200MA Output
|
PWM Input Signal Voltage:
|
3.3V/5V (compatible)
|
Power Wire / Wire Length:
|
12AWG/800mm
|
Supported Lithium Cell Count:
|
5~14S
|
Dimensions (L*W*H):
|
81.8*41.2*23.2mm
|
Operating Environment Temperature:
|
(-20-65°C)
|
Current Limit:
|
120A
|
|
Model:
|
AMPX 120A ESC
|
|
BEC:
|
5V/200MA Output
|
|
PWM Input Signal Voltage:
|
3.3V/5V (compatible)
|
|
Power Wire / Wire Length:
|
12AWG/800mm
|
|
Supported Lithium Cell Count:
|
5~14S
|
|
Dimensions (L*W*H):
|
81.8*41.2*23.2mm
|
|
Operating Environment Temperature:
|
(-20-65°C)
|
|
Current Limit:
|
120A
|
| Attribute | Value |
|---|---|
| Model | AMPX 120A ESC |
| BEC | 5V/200MA output |
| PWM Input Signal Voltage | 3.3V/5V (compatible) |
| Power Wire / Wire Length | 12AWG/800mm |
| Supported Lithium Cell Count | 5~14S |
| Dimensions (L*W*H) | 81.8*41.2*23.2mm |
| Operating Environment Temperature | -20-65°C |
| Current Limit | 120A |
| Short Circuit Protection | When triggered, ESC shuts down output and automatically restores after 100ms |
| Stall Protection | Requires throttle return to zero to restore operation after stall detection |
| Voltage Protection | Prevents motor start if battery voltage is below 16V or above 64V (disabled during flight) |
| Temperature Protection | Reduces output power at 125°C, cuts off at 140°C, restores when temperature drops below 80°C |
| Throttle Loss Protection | Cuts power if throttle signal is lost for more than 2 seconds |
| Startup Protection | Shuts down output if motor isn't started within 10 seconds of throttle increase |
Connect motor first, push throttle to maximum, then power up. After hearing two beeps, pull throttle to minimum. A "DO Mi so" sound indicates successful throttle range setting.
