Product Details
Place of Origin: Guangdong, China
Brand Name: GS
Model Number: AMPX ESC 150A (12-24S
Document: Product Brochure PDF
Payment & Shipping Terms
Price: Negotiable
|
Model:
|

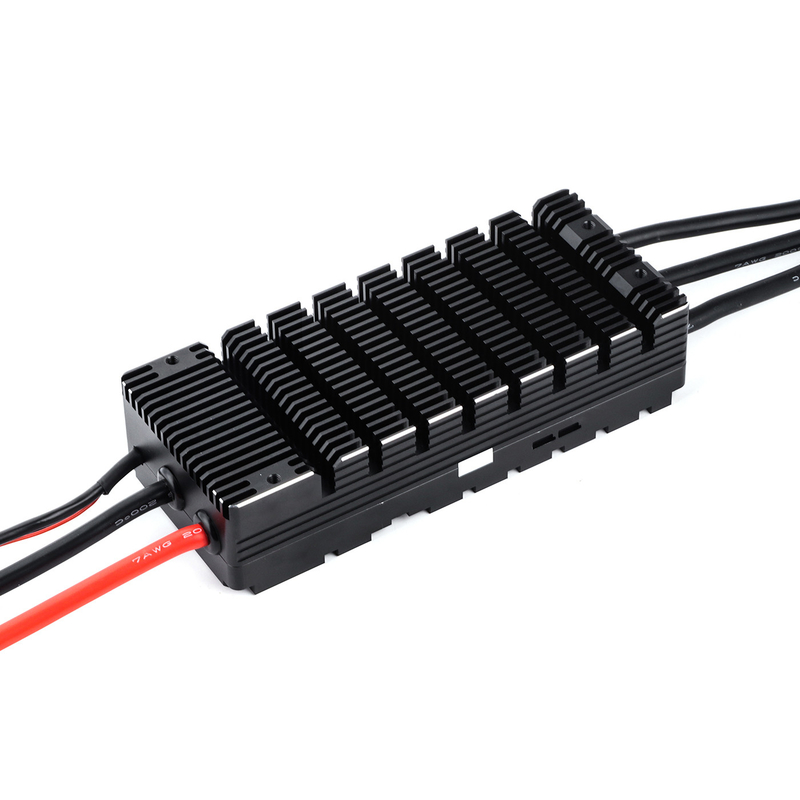

AMPX 150A HV ESC
|
PWM Input Signal Voltage:
|
3.3V/5V (compatible)
|
Power Wire / Wire Length:
|
7AWG/200mm
|
Supported Lithium Cell Count:
|
12~24S
|
Dimensions (L*W*H):
|
176.0*73.0*42.8mm
|
Operating Environment Temperature:
|
(-20-65°C)
|
Current Limit:
|
150A
|
|
Model:
|
AMPX 150A HV ESC
|
|
PWM Input Signal Voltage:
|
3.3V/5V (compatible)
|
|
Power Wire / Wire Length:
|
7AWG/200mm
|
|
Supported Lithium Cell Count:
|
12~24S
|
|
Dimensions (L*W*H):
|
176.0*73.0*42.8mm
|
|
Operating Environment Temperature:
|
(-20-65°C)
|
|
Current Limit:
|
150A
|
| Attribute | Value |
|---|---|
| Model | AMPX 150A HV ESC |
| PWM Input Signal Voltage | 3.3V/5V (compatible) |
| Power Wire / Wire Length | 7AWG/200mm |
| Supported Lithium Cell Count | 12~24S |
| Dimensions (L*W*H) | 176.0*73.0*42.8mm |
| Operating Environment Temperature | -20-65°C |
| Current Limit | 150A |
| Short Circuit Protection | When ESC detects a short circuit, it shuts down output. Requires power cycle to restore operation after troubleshooting. |
| Stall Protection | If motor stall is detected, throttle must be returned to zero and advanced again to restore operation. |
| Voltage Protection | Prevents motor start if battery voltage is below 40V or above 105V at power-up (disabled during flight). |
| Temperature Protection | Reduces output to 50% at 125°C, cuts output at 140°C. Normal operation resumes when temperature drops below 80°C after throttle reset. |
| Throttle Loss Protection | Cuts power if throttle signal is lost for more than 2 seconds, restores power when signal returns. |
| Startup Protection | Shuts down output if motor doesn't start within 10 seconds of throttle increase. Requires throttle reset to restore. |
| Throttle Calibration | Connect motor, push throttle to max, power up. After two beeps, pull throttle to min. "DO Mi SO" sound confirms successful calibration. |
