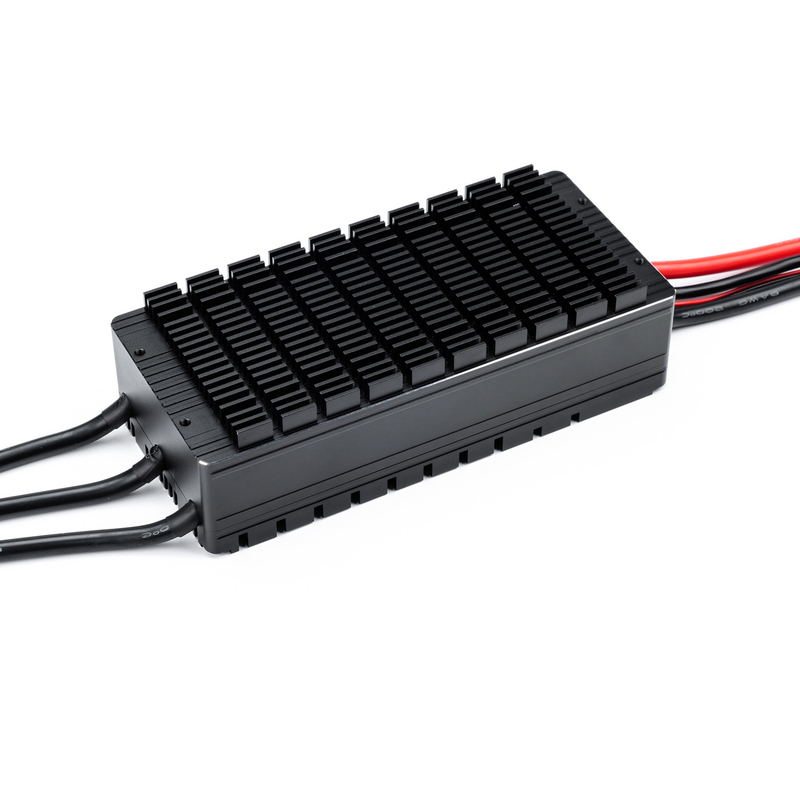

AMPX ESC 200A(12-24S）Electronic Speed Controler

Name: AMPX ESC 200A(12-24S）Electronic Speed Controler
Brand: Guangzhou Gesai Intelligent Electronic Technology Co., Ltd.
SKU: ESC 200A(12-24S）
Price: 7,521.00 USD
Availability: InStock

Product Details

Place of Origin: Guangdong, China

Brand Name: GS

Model Number: ESC 200A(12-24S）

Document: Product Brochure PDF

Payment & Shipping Terms

Price: Negotiable

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                Tethered Drone Power Supply Light Weight, high efficiency Tethered Drone Power Supply


Model:	AMPX 200A HV ESC	PWM Input Signal Voltage:	3.3V/5V (compatible)
Power Wire / Wire Length:	8AWG/190mm	Supported Lithium Cell Count:	12~24S
Dimensions (LWH):	161.072.246.8mm	Operating Environment Temperature:	(-20-65°C)
Current Limit:	200A

Model:	AMPX 200A HV ESC
PWM Input Signal Voltage:	3.3V/5V (compatible)
Power Wire / Wire Length:	8AWG/190mm
Supported Lithium Cell Count:	12~24S
Dimensions (LWH):	161.072.246.8mm
Operating Environment Temperature:	(-20-65°C)
Current Limit:	200A

AMPX ESC 200A(12-24S）Electronic Speed Controler

AMPX ESC 200A(12-24S) Electronic Speed Controller

Product Specifications

Attribute	Value
Model	AMPX 200A HV ESC
PWM Input Signal Voltage	3.3V/5V (compatible)
Power Wire / Wire Length	8AWG/190mm
Supported Lithium Cell Count	12~24S
Dimensions (LWH)	161.072.246.8mm
Operating Environment Temperature	-20-65°C
Current Limit	200A

Key Features

Supports dual throttle (CAN digital throttle + PWM analog throttle) control with CAN digital throttle priority
Quick response time of 0.60 seconds from motor start to full speed operation
Enhanced compatibility and stability with specialized control algorithm for disc motors
Synchronous freewheeling technology improves throttle linearity, driving efficiency, and automatic energy recovery during motor deceleration
Includes output interfaces for RPM and error signals
Features CAN communication interface for real-time communication with flight control (requires compatible flight control)
Convenient installation with screw holes designed for orientation-free mounting
Control signal interface completely isolated from main power supply for enhanced safety and reliability

Protection Functions

Short Circuit Protection

Automatically shuts down output when short circuit is detected, with automatic restart after 100ms delay.

Stall Protection

Detects motor stall and requires throttle reset to zero before normal operation can resume.

Voltage Protection

Prevents motor start if battery voltage is below 40V or above 105V (disabled during flight).

Temperature Protection

Reduces output power to 50% at 125°C and shuts down at 140°C, with gradual power restoration as temperature decreases to 80°C.

Throttle Loss Protection

Cuts power if throttle signal is lost for more than 2 seconds, restoring power when signal returns.

Startup Protection

Shuts down output if motor doesn't start within 10 seconds of throttle increase, requiring throttle reset.

Throttle Calibration

Connect motor first, push throttle to maximum, then power up. After two beeps, pull throttle to minimum. A "DO Mi SO" sound indicates successful throttle range setting.

Our Services

1 Year Warranty included for all purchases
14-day return policy for replacements or refunds (contact required before return)
Defective items within 3 months replaced free of charge or refunded
Defective items after 3 months replaced with customer covering return shipping

Frequently Asked Questions

Q1: Do you support OEM/ODM?

A1: Yes. We can print your logo on the product.

Q2: About samples.

A2: Samples ready in 7 days (10-20 days for OEM/ODM). Sample fee and shipping charged.

Q3: What is the delivery time?

A3: Regular orders ship within 15 days, OEM/ODM within 25-45 days (quantity dependent).

Q4: What is the minimum order quantity?

A4: No MOQ for wholesale (1 piece accepted), including OEM/ODM.

Q5: What are your payment terms?

A5: L.C. or 100% TT payment accepted.

Q6: Can you reduce the shipping cost?

A6: We always select the most economical and secure shipping option available.

Q7: Return policy.

A7: Replacement requests must be made within 7 days of receipt. Items must be in original condition with customer covering return shipping.
