Product Details
Place of Origin: Guangdong, China
Brand Name: GS

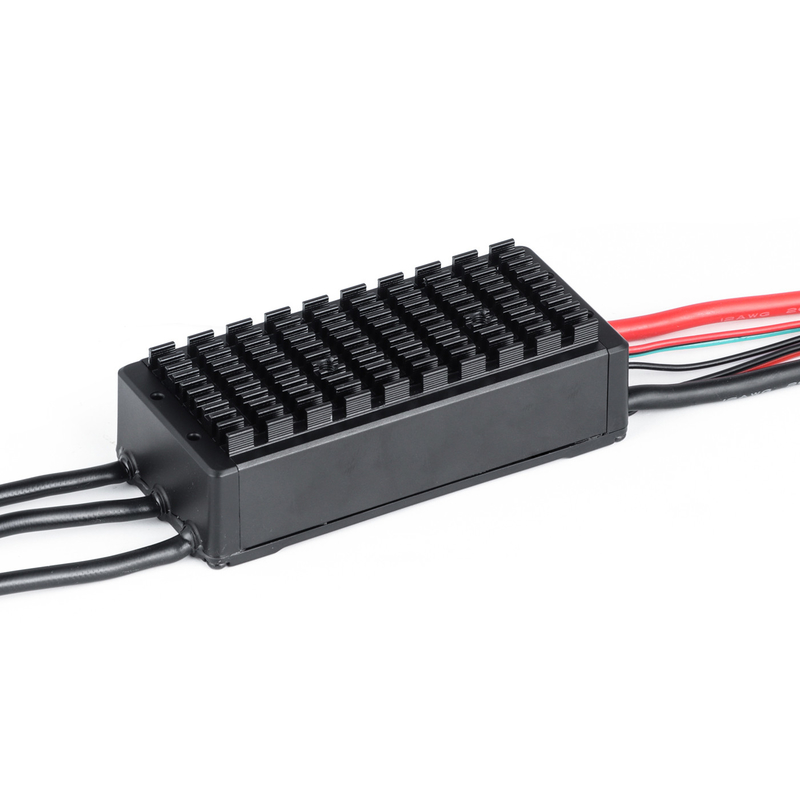

Model Number: AMPX 80A (5-14S)
Document: Product Brochure PDF
Payment & Shipping Terms
Price: Negotiable
|
Model:
|
AMPX 80A ESC
|
BEC:
|
5V/200MA Output
|
PWM Input Signal Voltage:
|
3.3V/5V (compatible)
|
Power Wire / Wire Length:
|
12AWG/800mm
|
Supported Lithium Cell Count:
|
5~14S
|
Dimensions (L*W*H):
|
79.6*36.0*23.5mm
|
Operating Environment:
|
(-20~65°C)
|
Current Limit:
|
84A
|
|
Model:
|
AMPX 80A ESC
|
|
BEC:
|
5V/200MA Output
|
|
PWM Input Signal Voltage:
|
3.3V/5V (compatible)
|
|
Power Wire / Wire Length:
|
12AWG/800mm
|
|
Supported Lithium Cell Count:
|
5~14S
|
|
Dimensions (L*W*H):
|
79.6*36.0*23.5mm
|
|
Operating Environment:
|
(-20~65°C)
|
|
Current Limit:
|
84A
|
| Attribute | Value |
|---|---|
| Model | AMPX 80A ESC |
| BEC | 5V/200MA output |
| PWM Input Signal Voltage | 3.3V/5V (compatible) |
| Power Wire / Wire Length | 12AWG/800mm |
| Supported Lithium Cell Count | 5~14S |
| Dimensions (L*W*H) | 79.6*36.0*23.5mm |
| Operating Environment | -20~65°C |
| Current Limit | 84A |
When triggered, the ESC shuts down output and automatically restarts after 100ms.
Requires throttle return to zero before normal operation can resume.
Prevents motor start if battery voltage is below 16V or above 64V (disabled during flight).
Reduces output power at 125°C and shuts down at 140°C, with gradual power restoration as temperature decreases.
Cuts power after 2 seconds of signal loss, restoring power when signal returns.
Shuts down output if motor doesn't start within 10 seconds of throttle increase.
Set throttle range by powering up at maximum throttle, then moving to minimum when prompted by audio signals.
