Product Details
Place of Origin: Guangdong, China
Brand Name: GS

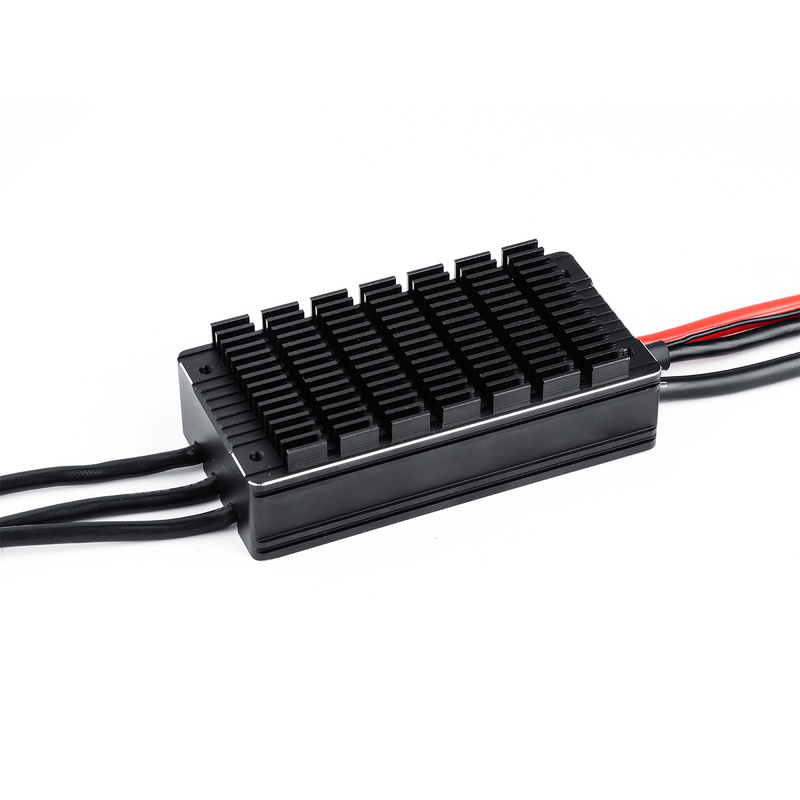

Model Number: AMPX ESC 150A (5-14S）
Document: Product Brochure PDF
Payment & Shipping Terms
Price: Negotiable
|
Model:
|
AMPX 150A ESC
|
PWM Input Signal Voltage:
|
3.3V/5V (compatible)
|
Power Wire / Wire Length:
|
10AWG/800mm
|
Supported Lithium Cell Count:
|
5~14S
|
Dimensions (L*W*H):
|
98.0*50.0*27.9mm
|
Operating Environment Temperature:
|
(-20~65°C)
|
Current Limit:
|
150A
|
|
Model:
|
AMPX 150A ESC
|
|
PWM Input Signal Voltage:
|
3.3V/5V (compatible)
|
|
Power Wire / Wire Length:
|
10AWG/800mm
|
|
Supported Lithium Cell Count:
|
5~14S
|
|
Dimensions (L*W*H):
|
98.0*50.0*27.9mm
|
|
Operating Environment Temperature:
|
(-20~65°C)
|
|
Current Limit:
|
150A
|
| Model | AMPX 150A ESC |
| PWM input Signal Voltage | 3.3V/5V (compatible) |
| Power Wire / Wire Length | 10AWG/800mm |
| Supported Lithium Cell Count | 5~14S |
| Dimensions (L*W*H) | 98.0*50.0*27.9mm |
| Operating Environment Temperature | -20~65°C |
| Current Limit | 150A |
| Short Circuit Protection | When triggered, ESC shuts down output and automatically restarts after 100ms |
| Stall Protection | Requires throttle reset to zero to restore normal operation after stall detection |
| Voltage Protection | Prevents motor start if battery voltage is below 16V or above 64V (disabled during flight) |
| Temperature Protection | Reduces output power at 125°C, cuts off at 140°C, restores gradually when cooling to 80°C |
| Throttle Loss Protection | Cuts power after 2 seconds of signal loss, restores when signal returns |
| Startup Protection | Shuts down output if motor doesn't start within 10 seconds of throttle increase |
| Throttle Calibration | Set by powering up with throttle at maximum, then moving to minimum after confirmation beeps |
