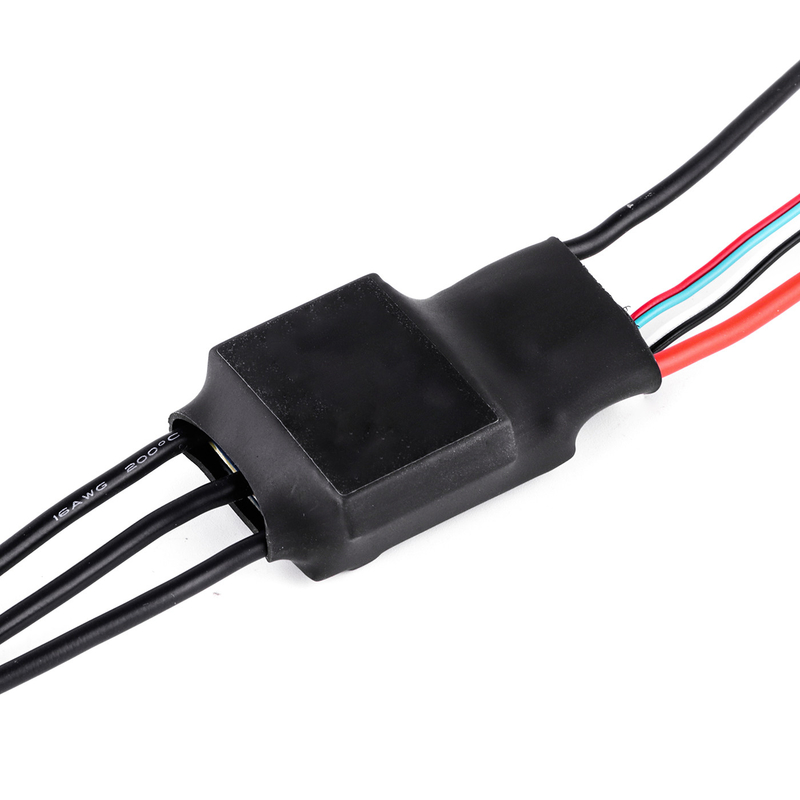

Electronic Speed Controler AMPX 40A (5-14S) Drone ESC W/box

Name: Electronic Speed Controler AMPX 40A (5-14S) Drone ESC W/box
Brand: Guangzhou Gesai Intelligent Electronic Technology Co., Ltd.
SKU: AMPX 40A (5-14S)
Price: 7,521.00 USD
Availability: InStock

Product Details

Place of Origin: Guangdong, China

Brand Name: GS

Model Number: AMPX 40A (5-14S)

Document: Product Brochure PDF

Payment & Shipping Terms

Price: Negotiable

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                22000mAh  li ion drone battery, NCM  12s 22000mah lipo battery, NCM   li ion drone battery


Model:	AMPX 40A ESC HV	Compatible Signal Frequency:	50-500HZ
PWM Input Signal Voltage:	3.3V/5V (compatible)	Power Wire / Wire Length:	16AWG/380mm
Supported Lithium Cell Count:	5~14S	Dimensions (LWH):	62.2.31.016.0mm
Operating Environment Temperature:	(-20-65°C)	Current Limit:	48A
Motor Wire / Wire Length:	16AWG/80 Mm	16AWG/80 Mm:	420 Mm

Model:	AMPX 40A ESC HV
Compatible Signal Frequency:	50-500HZ
PWM Input Signal Voltage:	3.3V/5V (compatible)
Power Wire / Wire Length:	16AWG/380mm
Supported Lithium Cell Count:	5~14S
Dimensions (LWH):	62.2.31.016.0mm
Operating Environment Temperature:	(-20-65°C)
Current Limit:	48A
Motor Wire / Wire Length:	16AWG/80 Mm
16AWG/80 Mm:	420 Mm

Electronic Speed Controler AMPX 40A (5-14S) Drone ESC W/box

Electronic Speed Controler AMPX 40A (5-14S) Drone ESC W/box

Quick response. it will take only 0.25 seconds from starting motor to full speed running
Good compatibility and stability with special control algorithm for disc motors
Synchronous frewheeling technology can bring beter throtle linearity,driving eficiency and automatic energy recovery when lowering motor speed
With CAN communication interface,can be realtime communication with fight control. (Note: This function should be matched with fight control)

Protection Function

short Circuit Protection

When the Esc checks to trigger the short-circuit protection, the Esc shuts down the output, 100ms later the EsC automatically

restores to restart.

Stall Protection

Ifthe Esc detects a motor sta, triggering stalprotection,the throtle must be returned to zero and then advanced again to restore normal operation

Voltage Protection

Upon power-up, if the Esc detects battery voltage below 16V or above 64, it willemit an alarm sound and not start the motor. This

protection is disabled during flight.

Temperature Protection

During flight, if the temperature of the Esc is higher than 125'c, it wil generate a fault signal and start reducing the output power to 50% of themaximum value. lf the temperature continues to rise to 140'c, the Esc will turn of the output, and the normal output will not be restored untilthe throttle setting is reset to zero. When the temperature drops to 80'c, the maximum output power of the esc starts to rise.

Throttle Loss Protection

Ifthe sc detects a loss of throtle signal for more than 2 seconds,it will cut power. Power will be restored to the previous level once the signalis regained.

Startup Protection

If the motor is not stated within 10 seconds after increasing the throttle,the Esc wil shut down the output. Normal operation can be restored

by returning the throttle to zero and then advancing it again.

Throttle Calibratior setting

Connect the motor first, push the throttle to the maximum, then power up. After hearing two "bi bi" sounds, pull the throttle to the minimumWhen you hear a "DO Mi sO" sound, it indicates that the throttle range setting is successful.
