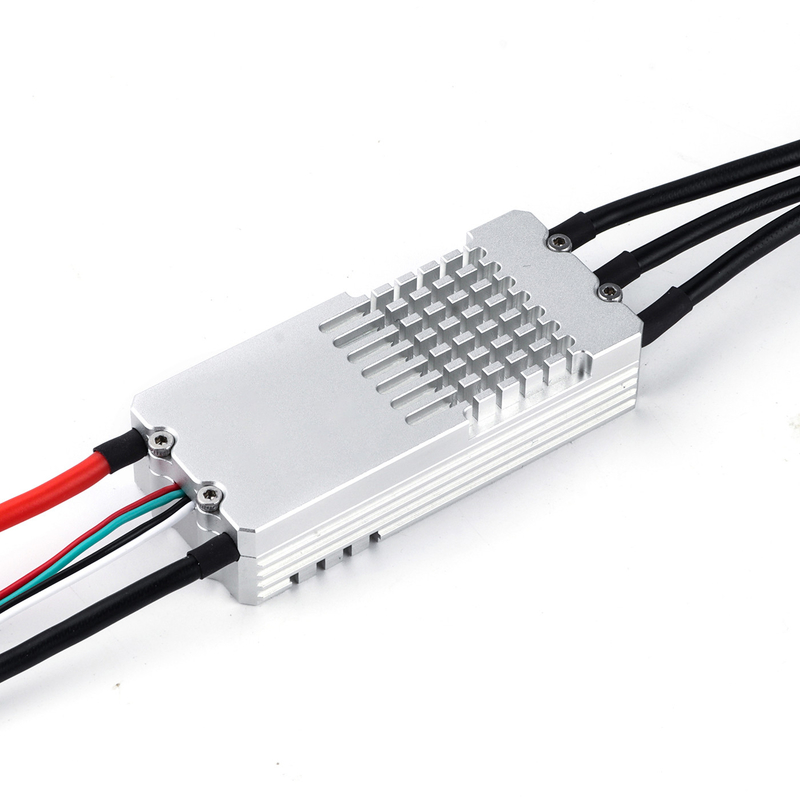

Electronic Speed Controler AMPX 60A (5-14S) Drone ESC

Name: Electronic Speed Controler AMPX 60A (5-14S) Drone ESC
Brand: Guangzhou Gesai Intelligent Electronic Technology Co., Ltd.
SKU: AMPX 60A (5-14S)
Price: 7,521.00 USD
Availability: InStock

Product Details

Place of Origin: Guangdong, China

Brand Name: GS

Model Number: AMPX 60A (5-14S)

Document: Product Brochure PDF

Payment & Shipping Terms

Price: Negotiable

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                Drone Remote Control anti jamming, Qualcomm  Drone Remote Control, anti jamming rc drone control


Model:	AMPX 60A ESC HV	Compatible Signal Frequency:	50-500HZ
PWM Input Signal Voltage:	3.3V/5V (compatible)	Power Wire / Wire Length:	14AWG/800mm
Supported Lithium Cell Count:	5~14S	Dimensions (LWH):	7131.4415.8mm
Operating Environment Temperature:	(-20~65°C)	Current Limit:	72A
Signal Wire Length:	1000 Mm

Model:	AMPX 60A ESC HV
Compatible Signal Frequency:	50-500HZ
PWM Input Signal Voltage:	3.3V/5V (compatible)
Power Wire / Wire Length:	14AWG/800mm
Supported Lithium Cell Count:	5~14S
Dimensions (LWH):	7131.4415.8mm
Operating Environment Temperature:	(-20~65°C)
Current Limit:	72A
Signal Wire Length:	1000 Mm

Electronic Speed Controler AMPX 60A (5-14S) Drone ESC

Electronic Speed Controller AMPX 60A (5-14S) Drone ESC

Product Specifications

Attribute	Value
Model	AMPX 60A ESC HV
Compatible Signal Frequency	50-500HZ
PWM Input Signal Voltage	3.3V/5V (compatible)
Power Wire / Wire Length	14AWG/800mm
Supported Lithium Cell Count	5~14S
Dimensions (LWH)	7131.4415.8mm
Operating Environment Temperature	-20~65°C
Current Limit	72A
Signal wire Length	1000 mm

Advanced Protection Features

Short Circuit Protection

Automatically shuts down output when a short circuit is detected. Requires power cycle to restore normal operation.

Stall Protection

Detects motor stall and requires throttle reset to zero before restoring operation.

Voltage Protection

Prevents motor start if battery voltage is below 16V or above 64V (disabled during flight).

Temperature Protection

Reduces output power to 50% at 125°C and shuts down at 140°C. Resumes normal operation when temperature drops below 80°C.

Throttle Loss Protection

Cuts power if throttle signal is lost for more than 2 seconds, restoring power when signal returns.

Startup Protection

Shuts down output if motor isn't started within 10 seconds of throttle increase.

Throttle Calibration

Connect the motor first
Push throttle to maximum then power up
After hearing two beeps, pull throttle to minimum
"DO Mi so" sound indicates successful throttle range setting

Warranty & Services

1 Year Warranty
14-day return policy for unsatisfied customers
Free replacement for defective items within 3 months
Post-3 month replacements available with shipping fee

Frequently Asked Questions

Do you support OEM/ODM?

Yes. We can print your logo on the product.

About samples

Samples ready in 7 days (10-20 days for OEM/ODM). Sample fee and shipping charged.

What is the delivery time?

Regular orders ship within 15 days, OEM/ODM within 25-45 days. Delays communicated in advance.

What is the minimum order quantity?

No MOQ for wholesale (1 piece accepted), including OEM/ODM.

What are your payment terms?

L/C or TT 100%.

Can you reduce the shipping cost?

We always choose the cheapest safe option. Customers may arrange their own shipping.

Return policy

Contact within 7 days for replacements. Items must be in original condition with customer paying return shipping.
