Product Details
Place of Origin: Guangdong, China
Brand Name: GS

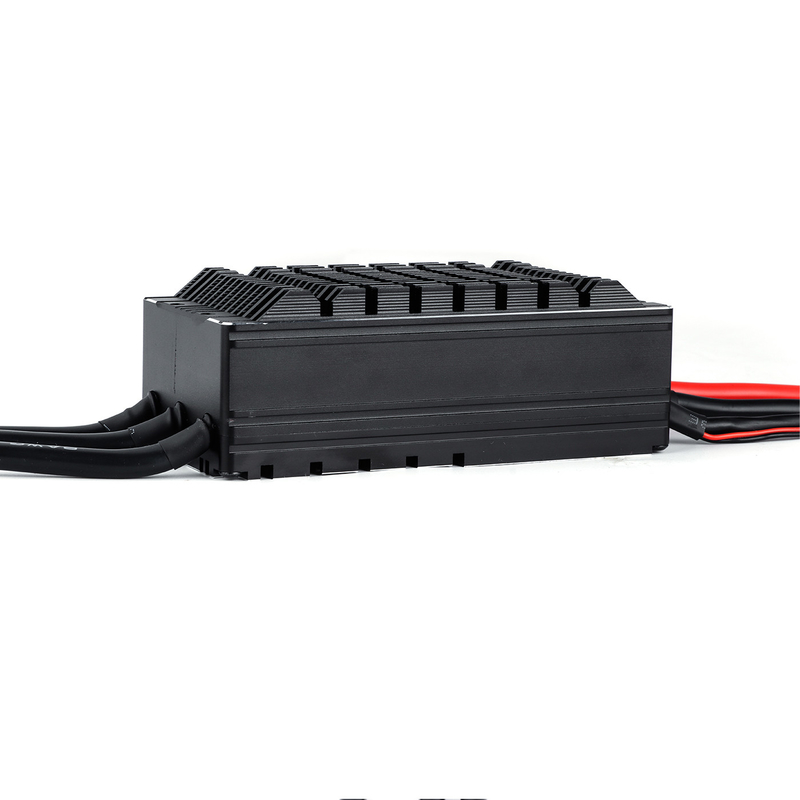

Model Number: AMPX ESC 120A (12-24S)
Document: Product Brochure PDF
Payment & Shipping Terms
Price: Negotiable
|
Model:
|
AMPX 120A HV ESC
|
PWM Input Signal Voltage:
|
3.3V/5V (compatible)
|
Power Wire / Wire Length:
|
8AWG/190mm
|
Supported Lithium Cell Count:
|
12~24S
|
Dimensions (L*W*H):
|
117.5*56.3*42.8mm
|
Operating Environment Temperature:
|
(-20~65°C)
|
Current Limit:
|
120A
|
|
Model:
|
AMPX 120A HV ESC
|
|
PWM Input Signal Voltage:
|
3.3V/5V (compatible)
|
|
Power Wire / Wire Length:
|
8AWG/190mm
|
|
Supported Lithium Cell Count:
|
12~24S
|
|
Dimensions (L*W*H):
|
117.5*56.3*42.8mm
|
|
Operating Environment Temperature:
|
(-20~65°C)
|
|
Current Limit:
|
120A
|
| Attribute | Value |
|---|---|
| Model | AMPX 120A HV ESC |
| PWM Input Signal Voltage | 3.3V/5V (compatible) |
| Power Wire / Wire Length | 8AWG/190mm |
| Supported Lithium Cell Count | 12~24S |
| Dimensions (L*W*H) | 117.5*56.3*42.8mm |
| Operating Environment Temperature | -20~65°C |
| Current Limit | 120A |
| Protection Type | Description |
|---|---|
| Short Circuit Protection | When triggered, ESC shuts down output and automatically restarts after 100ms |
| Stall Protection | Requires throttle return to zero and re-advance to restore operation |
| Voltage Protection | Prevents motor start if battery voltage is below 40V or above 105V (disabled during flight) |
| Temperature Protection | Reduces output power at 125°C, cuts output at 140°C, restores when temperature drops to 80°C |
| Throttle Loss Protection | Cuts power if throttle signal is lost for more than 2 seconds, restores when signal returns |
| Startup Protection | Shuts down output if motor doesn't start within 10 seconds of throttle increase |
| Throttle Calibration | Detailed calibration procedure with audio feedback for successful setup |
