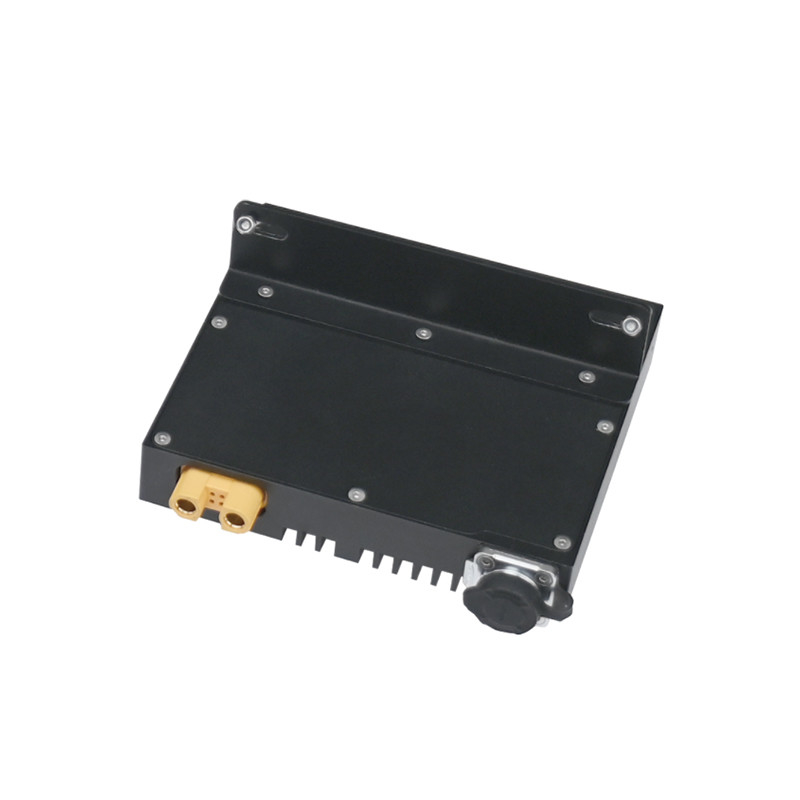

12S 4500W Onboard Module Tethered Power System For Drones DC 24V/48V

Product Details

Brand Name: GS

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: Negotiable

Delivery Time: 6~8

Payment Terms: T/T

Supply Ability: 100

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                4500W  tethered power system for drones, 12S  tethered power system for drones, tethered drone systems 4500W


Dimensions:	165×130×120mm	Shell Material:	Aviation Aluminum Alloy
Airborne Power Supply Weight:	1075g	Rated Power:	4.5kw
Input Voltage Range:	DC 300-400 V	Load Interface Type:	XT60
Load Interface Output Voltage:	DC 24V/48V	Operating Temperature:	-20℃ To 60℃

Dimensions:	165×130×120mm
Shell Material:	Aviation Aluminum Alloy
Airborne Power Supply Weight:	1075g
Rated Power:	4.5kw
Input Voltage Range:	DC 300-400 V
Load Interface Type:	XT60
Load Interface Output Voltage:	DC 24V/48V
Operating Temperature:	-20℃ To 60℃

12S 4500W Onboard Module Tethered Power System For Drones DC 24V/48V

Product Specifications

Dimensions	165×130×120mm
Shell material	aviation aluminum alloy
Airborne power supply weight	1075g
Rated power	4.5kw
Input voltage range	DC 300-400 V
Load interface type	XT60
Load interface output voltage	DC 24V/48V
Operating temperature	-20℃ to 60℃

Product Description

A tethered UAV system with a 12S 4500W onboard module represents a highly capable and powerful setup designed for demanding applications requiring sustained flight and significant power capacity.

Tethered System: A UAV physically connected to a ground station via a tether that supplies power and facilitates data communication, allowing for extended flight durations and secure operations.
12S Configuration: The power system includes 12 cells in series, providing a nominal voltage of 44.4V (fully charged voltage is typically around 50.4V).
4500W Onboard Module: The onboard power module delivers 4500 watts, providing ample power for high-performance UAV operations.

Features comprehensive protection including overcurrent, overvoltage, short circuit, and overtemperature protection. Designed for plug-and-play operation without requiring battery changes. Includes automatic switch to drone battery when tethered power is interrupted.

Our Services

1 Year Warranty included for confident purchases
14-day return policy for replacements or refunds (contact required before return)
Defective items within 3 months replaced at no extra cost
After 3 months, defective items can still be returned for replacement (shipping fee applies)

Frequently Asked Questions

Q1: Do you support OEM/ODM?

A1: Yes. We can print your logo on the product.

Q2: About samples.

A2: Under normal circumstances, samples will be ready within 7 days, and 10-20 days for OEM/ODM orders. Sample fee and shipping will be charged.

Q3: What is the delivery time?

A3: For regular orders, we can ship within 15 days, for OEM/ODM, we can ship within 25-45 days (depending on the quantity). In the event of delays, we will notify you in advance.

Q4: What is the minimum order quantity?

A4: There is no MOQ for wholesale (1 piece accepted), including OEM/ODM.

Q5: What are your payment terms?

A5: L/C.TT100%.

Q6: Can you reduce the shipping cost?

A6: We always choose the most economical and secure shipping option. While we have partnerships with carriers, we cannot control final shipping costs.

Q7: Return policy.

A7: Replacement requests must be made within 7 days of receipt. Items must be in original condition and return shipping is at customer's expense.
