Product Details
Brand Name: GS
Model Number: SF-80X-200M20T
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Delivery Time: 6-8
Payment Terms: T/T
Supply Ability: 100
|
Folding Size Of UAV:
|
820mmx940mmx880mm
|
Diagonal Motor Wheelbase:
|
1790mm
|
Empty Weight:
|
19kg(without Tethered Battery)
|
Maximum Net Load:
|
20kg(excluding Tethered Power Supply And Cable Weight）
|
Tethered Power Consumption Approx:
|
Ground Power Supply :10kw 8.5kw Airborne End
|
RTK Position Accuracy:
|
1cm+1ppm(horizontal)1.5cm+1ppm(vertical)
|
Maximum Wind Speed:
|
Level 6, 13.8m/s
|
Other Configuration:
|
Lighting, Shouting, Throwing, Spraying, Etc.
|
Size Of Mooring Box:
|
500mm*480mm*460mm
|
Equipment Weight:
|
50 + 0.5 Kg
|
Cable Length:
|
≥220m; Cable Diameter ≤6mm; Optical Fiber Containing
|
Output Power And Voltage:
|
Adjustable 20-30kw, Voltage 800-1000vdc
|
Take-up And Pay-off System:
|
The Torque Can Be Adjusted Automatically In Real Time
|
Onboard Module Size:
|
Length 271mm* Width 168mm* Height 56mm
|
Onboard Module Weight:
|
3.3 Kg + 200 G
|
|
Folding Size Of UAV:
|
820mmx940mmx880mm
|
|
Diagonal Motor Wheelbase:
|
1790mm
|
|
Empty Weight:
|
19kg(without Tethered Battery)
|
|
Maximum Net Load:
|
20kg(excluding Tethered Power Supply And Cable Weight）
|
|
Tethered Power Consumption Approx:
|
Ground Power Supply :10kw 8.5kw Airborne End
|
|
RTK Position Accuracy:
|
1cm+1ppm(horizontal)1.5cm+1ppm(vertical)
|
|
Maximum Wind Speed:
|
Level 6, 13.8m/s
|
|
Other Configuration:
|
Lighting, Shouting, Throwing, Spraying, Etc.
|
|
Size Of Mooring Box:
|
500mm*480mm*460mm
|
|
Equipment Weight:
|
50 + 0.5 Kg
|
|
Cable Length:
|
≥220m; Cable Diameter ≤6mm; Optical Fiber Containing
|
|
Output Power And Voltage:
|
Adjustable 20-30kw, Voltage 800-1000vdc
|
|
Take-up And Pay-off System:
|
The Torque Can Be Adjusted Automatically In Real Time
|
|
Onboard Module Size:
|
Length 271mm* Width 168mm* Height 56mm
|
|
Onboard Module Weight:
|
3.3 Kg + 200 G
|
| Attribute | Value |
|---|---|
| Folding size of UAV | 820mm × 940mm × 880mm |
| Diagonal motor wheelbase | 1790mm |
| Empty weight | 19kg (without tethered battery) |
| Maximum net load | 20kg (excluding tethered power supply and cable weight) |
| Tethered power consumption approx | Ground power supply: 10kw 8.5kw airborne end |
| RTK position accuracy | 1cm+1ppm (horizontal) 1.5cm+1ppm (vertical) |
| Maximum wind speed | Level 6, 13.8m/s |
| Other configuration | Lighting, Shouting, throwing, spraying, etc. |
| Size of mooring box | 500mm × 480mm × 460mm |
| Equipment weight | 50 + 0.5 kg |
| Cable length | ≥220m; Cable diameter ≤6mm; Optical fiber containing |
| Output power and voltage | Adjustable 20-30kw, voltage 800-1000vdc |
| Take-up and pay-off system | The torque can be adjusted automatically in real time |
| Onboard module size | Length 271mm × Width 168mm × height 56mm |
| Onboard module weight | 3.3 kg + 200 g |

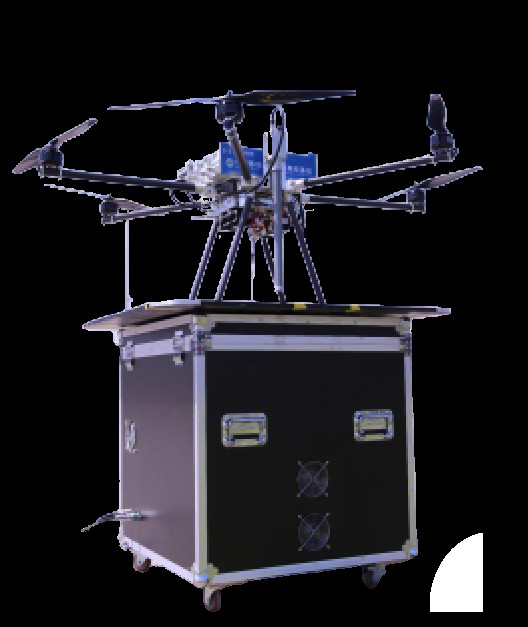

The tethered UAV relay platform system consists of UAV, tethered power supply box and tethered airborne module. The tethered UAV relies on the ground tethered power supply box to continuously supply power for long-term flight operations, with data transmitted back to the ground through optical fibers.
This UAV features dual RTK functionality, offering excellent wind resistance and flight performance to ensure operational safety during extended flight relay transmission tasks.
The tethered relay system is primarily used for emergency signal relay scenarios, with established partnerships with major operators including China Mobile, China Unicom and China Telecom. It can flexibly carry telecommunications equipment, military radios and short-wave communication devices to meet diverse communication needs.
Typical applications include:
