How to Choose a Tethered Drone Power Supply

Name: How to Choose a Tethered Drone Power Supply
Brand: Guangzhou Gesai Intelligent Electronic Technology Co., Ltd.
SKU: WF-1000S60-4K
Price: 7,521.00 USD
Availability: InStock

Product Details

Place of Origin: Made in China

Brand Name: GS

Model Number: WF-1000S60-4K

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: Negotiable

Delivery Time: 6-8

Payment Terms: T/T

Supply Ability: 100

Get Best Price

Product Details

Product Description

Highlight:

External Dimension:	1979575mm	Input Voltage:	800-1000V
Output Voltage:	50V/80A	Input Terminal:	Loose Wire
Output Terminal::	Loose Wire	Weight:	1100grams

External Dimension:	1979575mm
Input Voltage:	800-1000V
Output Voltage:	50V/80A
Input Terminal:	Loose Wire
Output Terminal::	Loose Wire
Weight:	1100grams

How to Choose a Tethered Drone Power Supply

Product Specifications

Attribute	Value
External Dimension	1979575mm
Input voltage	800-1000V
Output voltage	50V/80A
Input terminal	loose wire
Output terminal	loose wire
Weight	1100grams

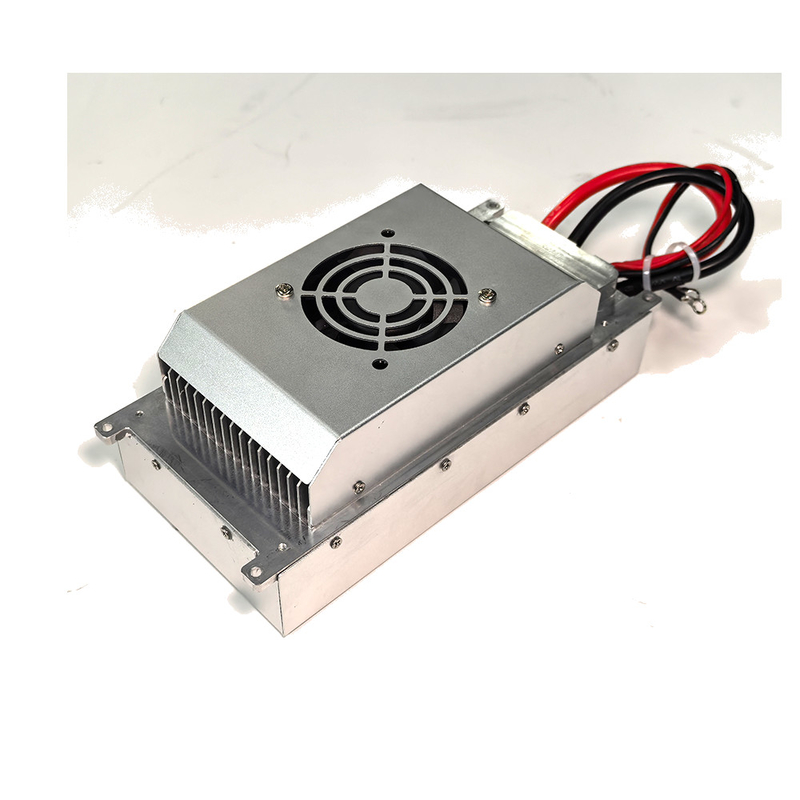

800-1000V High-Voltage DC Power Module

This high-efficiency DC power module delivers 50V/80A continuous output (4KW peak) from an ultra-wide 800-1000V input range, designed to power mission-critical systems like tethered drones, robotics, and mobile charging solutions with military-grade reliability.

Key Specifications

Dimensions: 197×95×75mm (compact palm-sized design)

Input: 800-1000V DC (compatible with PV/industrial HV systems)

Output: 50V/80A (3.5KW continuous / 4KW peak)

Terminals: Flying leads (custom wire gauge/length available)

Weight: 1100g (aerospace aluminum enclosure)

Product Features

DC-DC Isolated Power Converter: Isolates and converts the input 800V DC power to 60V DC power, with a total output power of 4000W.
Features high power density, compact size, and lightweight design.
Designed to meet power supply reliability requirements: Input includes overvoltage/undervoltage protection, while output includes overvoltage protection, current limiting, short-circuit protection, and over-temperature protection functions.
