Product Details
Brand Name: GS
Model Number: SF-90X-100M
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Delivery Time: 6-8
Payment Terms: T/T
Supply Ability: 100
|
Product Material:
|
Carbon Fiber + Aviation Aluminum Alloy
|
Rotor Number:
|
6-rotor
|
Wheelbase:
|
1920 Or Less
|
Expansion Size (mm):
|
1780 * 2070 * 800
|
Folding Size (mm):
|
1000 * 1250 * 800
|
Air Weight:
|
≤18.5KG(excluding Battery Weight)
|
Maximum Load:
|
≤30KG
|
Maximum Take-off Weight:
|
≤58KG
|
Positioning System:
|
GPS Positioning
|
Power Battery:
|
14S 28000mAh*1
|
Remote Control Unit:
|
Has One Pod, Display 5.5 "screen
|
Safe Wind Speed:
|
≤ Lv. 6
|
Operating Temperature:
|
-20℃C To 50℃C
|
Fuselage Protection Class:
|
IP65
|
Nozzle Pressure:
|
12Mpab
|
Injection Distance:
|
More Than 10m
|
Pump Power:
|
7.5 KW
|
Pipe Height:
|
≥100m
|
Mooring Power:
|
12kw
|
Tether Length:
|
120m
|
|
Product Material:
|
Carbon Fiber + Aviation Aluminum Alloy
|
|
Rotor Number:
|
6-rotor
|
|
Wheelbase:
|
1920 Or Less
|
|
Expansion Size (mm):
|
1780 * 2070 * 800
|
|
Folding Size (mm):
|
1000 * 1250 * 800
|
|
Air Weight:
|
≤18.5KG(excluding Battery Weight)
|
|
Maximum Load:
|
≤30KG
|
|
Maximum Take-off Weight:
|
≤58KG
|
|
Positioning System:
|
GPS Positioning
|
|
Power Battery:
|
14S 28000mAh*1
|
|
Remote Control Unit:
|
Has One Pod, Display 5.5 "screen
|
|
Safe Wind Speed:
|
≤ Lv. 6
|
|
Operating Temperature:
|
-20℃C To 50℃C
|
|
Fuselage Protection Class:
|
IP65
|
|
Nozzle Pressure:
|
12Mpab
|
|
Injection Distance:
|
More Than 10m
|
|
Pump Power:
|
7.5 KW
|
|
Pipe Height:
|
≥100m
|
|
Mooring Power:
|
12kw
|
|
Tether Length:
|
120m
|
| Attribute | Value |
|---|---|
| Product material | Carbon fiber + aviation aluminum alloy |
| Rotor number | 6-rotor |
| Wheelbase | 1920 or less |
| Expansion size (mm) | 1780 * 2070 * 800 |
| Folding size (mm) | 1000 * 1250 * 800 |
| Air weight | ≤18.5KG (excluding battery weight) |
| Maximum load | ≤30KG |
| Maximum take-off weight | ≤58KG |
| Positioning system | GPS positioning |
| Power battery | 14S 28000mAh*1 |
| Remote control unit | Has one pod, display 5.5" screen |
| Safe wind speed | ≤ Lv. 6 |
| Operating temperature | -20℃ to 50℃ |
| Fuselage protection class | IP65 |
| Nozzle pressure | 12Mpab |
| Injection distance | More than 10m |
| Pump power | 7.5 KW |
| Pipe height | ≥100m |
| Mooring power | 12kw |
| Tether length | 120m |

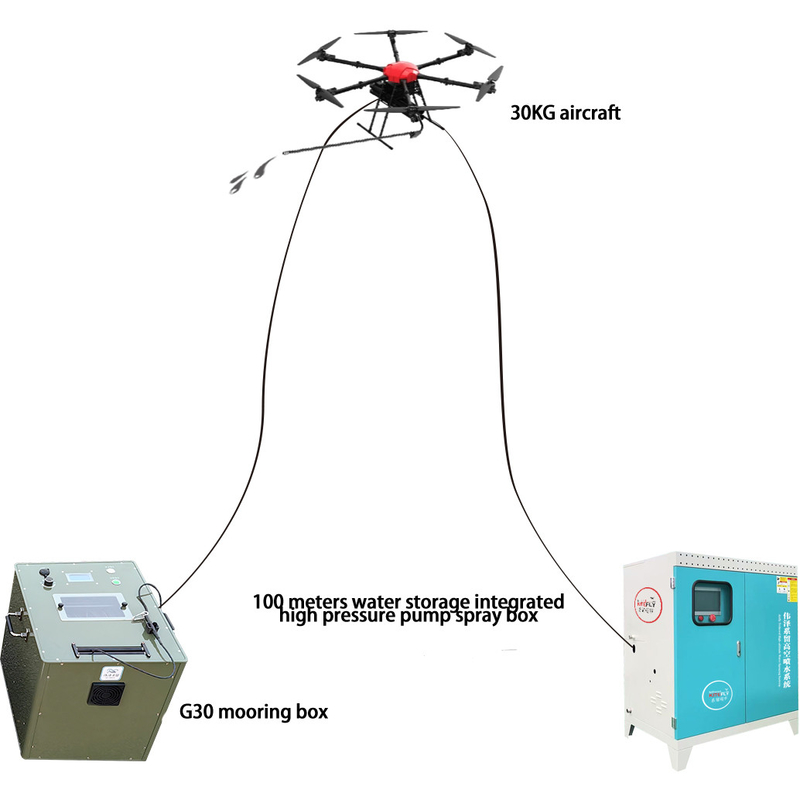

The tethered UAV injection system SF-90X-100M features a six-rotor tethered jet system designed for industrial applications. This advanced system combines tethered power supply, integrated water pump system, and large payload UAV technology.
Primarily used for curtain wall cleaning and spraying applications, this system provides a safer and more efficient alternative to traditional "spider man" methods for facade maintenance of tall buildings, power plants, and chemical plants. The innovative tethered system significantly extends operational endurance, solving the challenge of infinite endurance for the last 100m of vertical operations.
Our mooring solutions offer power supply systems for large load water system cleaning platforms, with customizable height options from 50m to 300m and power ranging from 18kw to 60kw to meet diverse customer requirements.
