Product Details
Place of Origin: Guangdong, China
Brand Name: GS
Model Number: NV16
Document: Product Brochure PDF
Payment & Shipping Terms
Price: Negotiable
Delivery Time: 6-8
Payment Terms: T/T
Supply Ability: 100
Unfold Size: |
1140*1300*575mm |
Folding Size: |
1010*610*575mm |
Diagonal Wheelbase: |
1480mm |
Weight: |
16KG |
Takeoff Weight: |
38KG |
Volume Of Medicine Cabinet: |
16L |
Spraying Flow: |
8L/Min |
Effective Spray Width: |
5-8M |
Flight Speed: |
5-10M/S |
Operation Power: |
58.8V(14S) |
Battery: |
14S 18000mah |
Operating Temperature: |
-10 ℃-- 40℃ |
Storage Mode: |
The Arm Folds Sideways |
Spraying System: |
Centrifugal Nozzle |
Flight Time: |
Empty Tank(20-25Min)Full Tank(7-10Min ) |
Spreader Box Volume: |
33L( Limited 16kg ) |
Unfold Size: |
1140*1300*575mm |
Folding Size: |
1010*610*575mm |
Diagonal Wheelbase: |
1480mm |
Weight: |
16KG |
Takeoff Weight: |
38KG |
Volume Of Medicine Cabinet: |
16L |
Spraying Flow: |
8L/Min |
Effective Spray Width: |
5-8M |
Flight Speed: |
5-10M/S |
Operation Power: |
58.8V(14S) |
Battery: |
14S 18000mah |
Operating Temperature: |
-10 ℃-- 40℃ |
Storage Mode: |
The Arm Folds Sideways |
Spraying System: |
Centrifugal Nozzle |
Flight Time: |
Empty Tank(20-25Min)Full Tank(7-10Min ) |
Spreader Box Volume: |
33L( Limited 16kg ) |

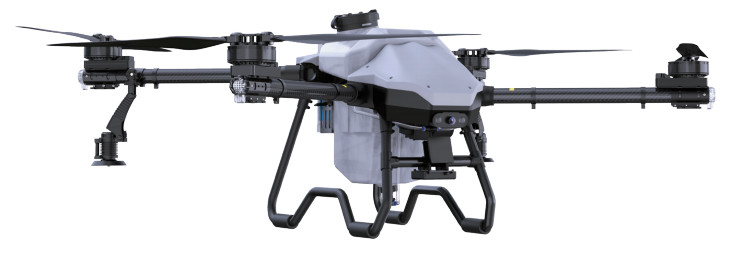

The NV16 drone is equipped with a 16L liquid tank and a 33L spreader box (16kg limit), supporting both liquid spraying and solid spreading tasks. It’s an excellent all-in-one solution for fertilization, pesticide spraying, and seeding.
The NV16 uses a centrifugal nozzle, capable of spraying up to 8L/min. Combined with an effective spray width of 5–8 meters, it ensures wide, uniform coverage for high-efficiency operations on medium to large farms.
The drone includes features such as GPS positioning, radar obstacle avoidance, remote control, and automatic operation. Built with IP-rated waterproof and dustproof protection, it performs reliably in harsh outdoor conditions from –10°C to 40°C.
Despite its strength, the NV16 remains compact with a folded size of 1010×610×575mm, and a diagonal wheelbase of 1480mm. It weighs 16kg empty, and takes off at up to 38kg. It can reach speeds of 5–10 m/s and fly for 7–10 min full load or 20–25 min empty, powered by a 14S 18,000mAh battery.
Q: How efficient is the spraying system?
A: With a centrifugal nozzle, the NV16 delivers up to 8L/min spray rate and covers 5–8 meters per pass, enabling rapid, uniform application.
Q: Is the drone suitable for rough terrain or windy weather?
A: Yes. The NV16 includes GPS positioning, radar obstacle avoidance, and a durable frame with IP-rated protection. It’s designed for outdoor environments and operates reliably between –10°C to 40°C.
Q: What is the battery and flight time?
A: Powered by a 14S 18,000mAh battery, it can fly 20–25 minutes with an empty tank and 7–10 minutes when fully loaded.
Q: How portable is the drone?
A: Very portable. It has a side-folding arm structure, reducing its size significantly for easy transport and quick deployment in the field.
Q:What spraying and spreading functions does the NV16 support?
A: The NV16 has a dual function: it can be used as a sprayer for liquid pesticides or fertilizers (capacity 16L) or as a spreader for solid materials (such as seeds or granules).
