Product Details
Place of Origin: Guangdong, China
Brand Name: GS
Model Number: EV616
Document: Product Brochure PDF
Payment & Shipping Terms
Price: Negotiable
Delivery Time: 6-8
Payment Terms: T/T
Supply Ability: 100
Unfold Size: |
1470*1690*600mm |
Folding Size: |
850*960*600mm |
Diagonal Wheelbase: |
1600mm |
Weight: |
15.5KG |
Takeoff Weight: |
38KG |
Volume Of Medicine Cabinet: |
16L |
Spraying Flow: |
1.5-4 L/Min |
Effective Spray Width: |
3-5m |
Flight Speed: |
3M/S |
Operation Power: |
58.8V(14S) |
Battery: |
14S 18000mah |
Operating Temperature: |
-10 ℃-- 40℃ |
Storage Mode: |
The Arm Folds Sideways |
Spraying System: |
Pressure Nozzle |
Flight Time: |
EmptyTank(20-25Min)Full Tank(7-10Min ) |
Unfold Size: |
1470*1690*600mm |
Folding Size: |
850*960*600mm |
Diagonal Wheelbase: |
1600mm |
Weight: |
15.5KG |
Takeoff Weight: |
38KG |
Volume Of Medicine Cabinet: |
16L |
Spraying Flow: |
1.5-4 L/Min |
Effective Spray Width: |
3-5m |
Flight Speed: |
3M/S |
Operation Power: |
58.8V(14S) |
Battery: |
14S 18000mah |
Operating Temperature: |
-10 ℃-- 40℃ |
Storage Mode: |
The Arm Folds Sideways |
Spraying System: |
Pressure Nozzle |
Flight Time: |
EmptyTank(20-25Min)Full Tank(7-10Min ) |

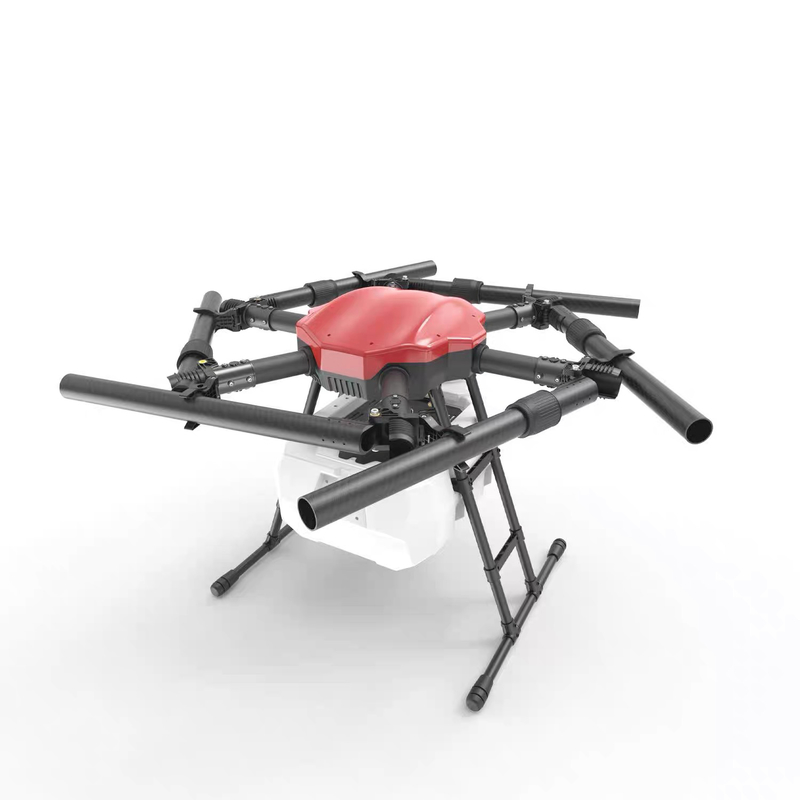

The EV series drones are designed for efficient crop protection operations, supporting payloads from 16L. Whether you're covering orchards, rice fields, or plains, this UAV delivers powerful performance and maximum coverage.
With a foldable arm structure, the drone’s dimensions shrink from 1470 × 1690 × 600 mm (unfolded) to 850 × 960 × 600 mm (folded). This makes transportation and on-site setup simple and space-efficient.
Equipped with a pressure nozzle spraying system, the EV6 delivers 1.5–4L/min flow rate and 3–5m spray width. It ensures uniform atomization for precision agriculture applications like pesticide and fertilizer spraying.
This six-axis platform offers superior flight balance, wind resistance, and reliability. The 16L payload version is suitable for small to medium-sized agricultural tasks.
Q: How long can the drone fly on a full battery?
A: With the 14S 18000mAh battery, the drone can fly 20–25 minutes without load, or 7–10 minutes when fully loaded with 16L of liquid, depending on terrain and wind conditions.
Q: Is the drone easy to transport?
A: Yes. The drone folds down to 850 × 960 × 600 mm for easy transportation. The folding arm design also makes field deployment fast and convenient.
Q: What is the spray system like?
A: The EV616 uses pressure nozzles to deliver a 1.5–4L/min spray rate and a 3–5m coverage width. It’s suitable for field crops, orchards, and small plots requiring precision application.
Q: What payload options are available?
A: The EV616 Series offers multiple versions with 10kg, 16kg, or 22kg load capacity, ideal for different field sizes and spraying volumes.
