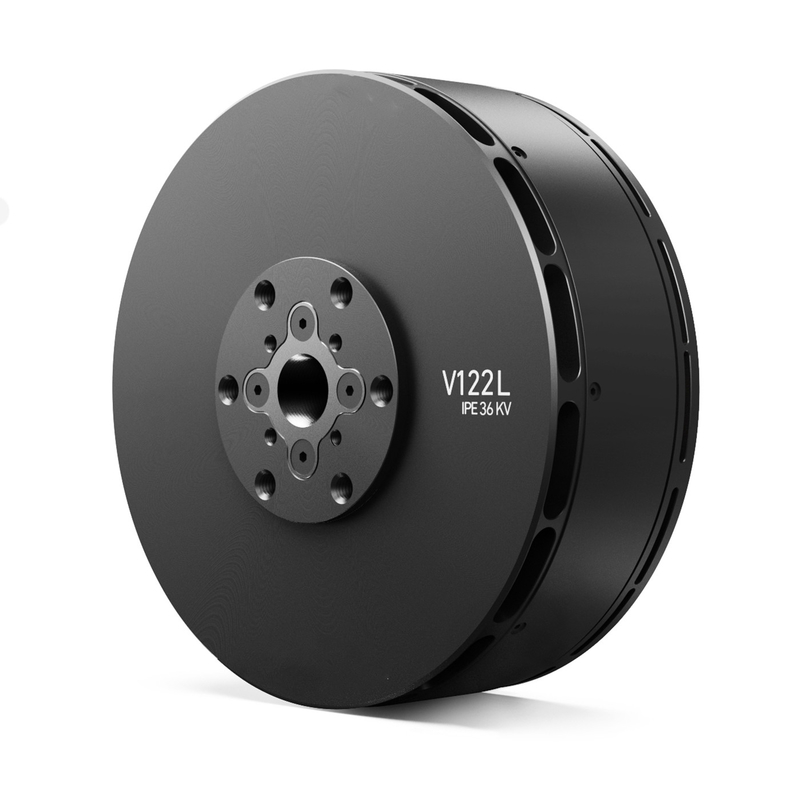

V122L Brushless DC Motor Drone

Name: V122L Brushless DC Motor Drone
Brand: Guangzhou Gesai Intelligent Electronic Technology Co., Ltd.
SKU: V122L 36KV
Price: 42.00 USD
Availability: InStock

Product Details

Place of Origin: Guangdong, China

Brand Name: GS

Model Number: V122L 36KV

Document: Product Brochure PDF

Payment & Shipping Terms

Price: Negotiable

Delivery Time: 6-8

Payment Terms: T/T

Supply Ability: 100

Get Best Price

Chat now

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                    Drone Brushless DC Motor, V122L Brushless DC Motor


Motor Model:	V122L IPE W2.0	Motor Size:	D:144.6x53 Mm
Propeller Mounting Holes:	D:50 M6x6	Shaft Diameter:	IN: 20 Mm
Bearing:	6904ZZ*2	Cable Length:	150 Mm (extended Enameled Wires)
Rotor Balance:	≤10 Mg	Motor Balance:	≤20 Mg
Motor Mounting Holes:	D:50 M6x4	Disruptive Test:	500 V

Motor Model:	V122L IPE W2.0
Motor Size:	D:144.6x53 Mm
Propeller Mounting Holes:	D:50 M6x6
Shaft Diameter:	IN: 20 Mm
Bearing:	6904ZZ*2
Cable Length:	150 Mm (extended Enameled Wires)
Rotor Balance:	≤10 Mg
Motor Balance:	≤20 Mg
Motor Mounting Holes:	D:50 M6x4
Disruptive Test:	500 V

V122L Brushless DC Motor Drone

Product Specifications

Attribute	Value
Motor Model	V122L IPE W2.0
Motor Size	D:144.6x53 mm
Propeller Mounting Holes	D:50 M6x6
Shaft Diameter	IN: 20 mm
Bearing	6904ZZ*2
Cable Length	150 mm (extended Enameled wires)
Rotor Balance	≤10 mg
Motor Balance	≤20 mg
Motor Mounting Holes	D:50 M6x4
Disruptive test	500 V

Product Description

Designed to carry payloads of 18-21kg (39.6-46.29lbs) per rotor with 47.5" carbon propeller. The V122L Brushless DC Motor delivers maximum thrust up to 50kg (110.23lbs) per rotor while weighing only 1620g. Featuring large pitch VOTL CF propellers, this motor provides exceptional load capacity, high efficiency, and reliable performance for professional UAV endurance flights.

RPMNV

36 KV

Nominal Voltage

24S lipo battery

No Load Current

1.06A/30V

Internal resistance

81mΩ

Motor Weight

1620 g

Product Boxed Weight

2600g (260x210x120 mm)

Maximum Current

133 A

Maximum Power

12830W

Maximum thrust

50 kg

Maximum Torque

34 Nm

Recommended ESC

AMPX 200A(12-24S)

Recommended Propellers

47.5x17.4
