Product Details
Place of Origin: Guangdong, China
Brand Name: GS
Model Number: HV50
Document: Product Brochure PDF
Payment & Shipping Terms
Price: Negotiable
Delivery Time: 6-8
Payment Terms: T/T
Supply Ability: 100
Unfold Size: |
1905*1720*815mm |
Folding Size: |
635*1340*815mm |
Diagonal Wheelbase: |
2300mm |
Weight: |
35KG |
Takeoff Weight: |
99KG |
Volume Of Medicine Cabinet: |
50L |
Spreader Box Volume: |
80L ( Limited 50kg ) |
Spraying Flow: |
12L/Min |
Effective Spray Width: |
6-10M |
Flight Speed: |
5-10M/S |
Operation Power: |
75.6V(18S) |
Battery: |
18S 30000mah |
Operating Temperature: |
-10 ℃-- 40℃ |
Storage Mode: |
The Arm Folds Sideways |
Spraying System: |
Centrifugal Nozzle |
Flight Time: |
Empty Tank( 18Min )Full Tank ( 7Min ) |
Unfold Size: |
1905*1720*815mm |
Folding Size: |
635*1340*815mm |
Diagonal Wheelbase: |
2300mm |
Weight: |
35KG |
Takeoff Weight: |
99KG |
Volume Of Medicine Cabinet: |
50L |
Spreader Box Volume: |
80L ( Limited 50kg ) |
Spraying Flow: |
12L/Min |
Effective Spray Width: |
6-10M |
Flight Speed: |
5-10M/S |
Operation Power: |
75.6V(18S) |
Battery: |
18S 30000mah |
Operating Temperature: |
-10 ℃-- 40℃ |
Storage Mode: |
The Arm Folds Sideways |
Spraying System: |
Centrifugal Nozzle |
Flight Time: |
Empty Tank( 18Min )Full Tank ( 7Min ) |

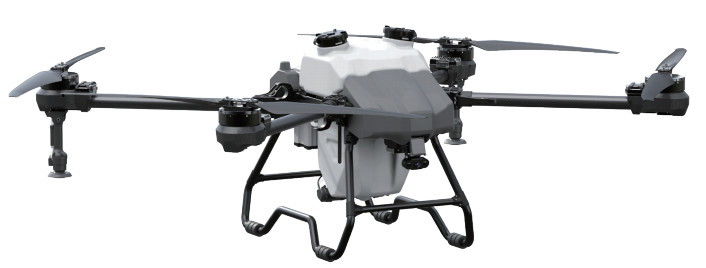

The HV series drones are designed for efficient crop protection operations, supporting payloads from 50L. Whether you're covering orchards, rice fields, or plains, this UAV delivers powerful performance and maximum coverage.
Equipped with RTK high-precision positioning, terrain-following radar, and obstacle avoidance sensors, the HV drone adapts to complex environments and delivers pinpoint accuracy during flight and spraying.
Built-in LED navigation lights and adaptive night spraying modes ensure that the HV series drones can continue their mission after sunset, maximizing your working hours and productivity.
The intelligent control system supports auto-planning, one-key return, resume spraying, and precise waypoint navigation, simplifying the operator’s workload and increasing field efficiency.
Q: What is the flight time?
A: Depending on payload, flight time ranges between 15 to 30 minutes.
Q: Can it perform automatic spraying?
A: Yes, the drone supports intelligent spraying based on GPS routes or RTK mapping.
Q: Is it waterproof?
A: The fuselage is built with IPX6-level waterproof protection for harsh agricultural conditions.
Q: Can it work at night?
A: Yes, it supports night-time operation with LED lighting and stable terrain sensing.
Q: What types of crops can it handle?
A: It is suitable for rice, wheat, corn, sugarcane, cotton, fruit trees, tea fields, and more.
