Product Details
Brand Name: GS

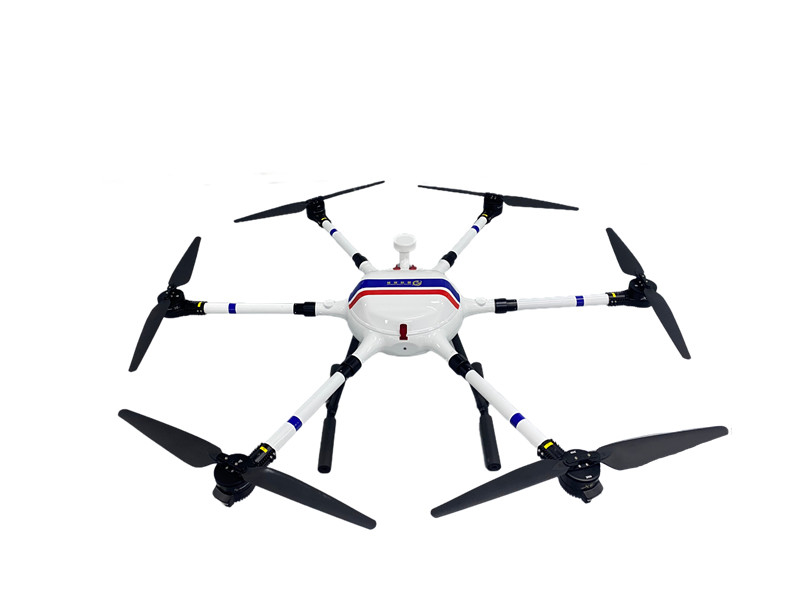

Model Number: HX-330
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Delivery Time: 6~8
Payment Terms: T/T
Supply Ability: 100
|
Body Material:
|
Toray 3K Carbon Fiber
|
Production Process:
|
High Temperature And High Pressure Molding
|
Casing Thickness:
|
Conventional 0.6mm
|
Case Weight:
|
1.75KG
|
Chassis + Power Equipment Weight:
|
5.65KG
|
Equivalent Wheelbase:
|
1290mm
|
Number Of Rotors:
|
6
|
Expansion Size:
|
1390mm*1210mm*550mm
|
Battery Compartment Size:
|
250mm*180mm*150mm
|
Recommended Load:
|
3-5KG
|
No-load Life:
|
> 75min
|
Load 5KG Endurance:
|
> 60min
|
Adaptive Motor:
|
Hao Ying X6 Power Set
|
Suitable Blade:
|
22-24 Inches
|
Take-off And Landing Mode:
|
Vertical Take-off And Landing
|
Operating Temperature:
|
-20℃~60℃
|
Flight Speed:
|
15 M/s
|
Climb Speed:
|
5 M/s (adjusted According To Flight Control)
|
Wind Resistance Grade:
|
6 Wind
|
Rain Protection Grade:
|
Moderate Rain
|
|
Body Material:
|
Toray 3K Carbon Fiber
|
|
Production Process:
|
High Temperature And High Pressure Molding
|
|
Casing Thickness:
|
Conventional 0.6mm
|
|
Case Weight:
|
1.75KG
|
|
Chassis + Power Equipment Weight:
|
5.65KG
|
|
Equivalent Wheelbase:
|
1290mm
|
|
Number Of Rotors:
|
6
|
|
Expansion Size:
|
1390mm*1210mm*550mm
|
|
Battery Compartment Size:
|
250mm*180mm*150mm
|
|
Recommended Load:
|
3-5KG
|
|
No-load Life:
|
> 75min
|
|
Load 5KG Endurance:
|
> 60min
|
|
Adaptive Motor:
|
Hao Ying X6 Power Set
|
|
Suitable Blade:
|
22-24 Inches
|
|
Take-off And Landing Mode:
|
Vertical Take-off And Landing
|
|
Operating Temperature:
|
-20℃~60℃
|
|
Flight Speed:
|
15 M/s
|
|
Climb Speed:
|
5 M/s (adjusted According To Flight Control)
|
|
Wind Resistance Grade:
|
6 Wind
|
|
Rain Protection Grade:
|
Moderate Rain
|
| Attribute | Value |
|---|---|
| Body material | Toray 3K carbon fiber |
| Production process | High temperature and high pressure molding |
| Casing thickness | Conventional 0.6mm |
| Case weight | 1.75KG |
| Chassis + power equipment weight | 5.65KG |
| Equivalent wheelbase | 1290mm |
| Number of rotors | 6 |
| Expansion size | 1390mm*1210mm*550mm |
| Battery compartment size | 250mm*180mm*150mm |
| Recommended load | 3-5KG |
| No-load life | > 75min |
| Load 5KG endurance | > 60min |
| Adaptive motor | Hao Ying X6 power set |
| Suitable blade | 22-24 inches |
| Take-off and landing mode | Vertical take-off and landing |
| Operating temperature | -20℃~60℃ |
| Flight speed | 15 m/s |
| Climb speed | 5 m/s (adjusted according to flight control) |
| Wind resistance grade | 6 wind |
| Rain protection grade | Moderate rain |
The HX-330 features Level 6 wind resistance, enabling stable operation in wind speeds of 50-61 km/h (31-38 MPH). This exceptional capability makes it ideal for professional applications in challenging weather conditions.
Yes. We can print your logo on the product.
Under normal circumstances, samples will be ready within 7 days, and 10-20 days for OEM/ODM orders. Sample fee and shipping will be charged.
For regular orders, we can ship within 15 days, for OEM/ODM, we can ship within 25-45 days (depending on the quantity). In the event of delays, we will notify you in advance.
There is no MOQ for wholesale (1 piece accepted), including OEM/ODM.
L/C.TT100%.
We always choose the most economical and secure shipping method. While we have partnerships with carriers, we cannot further reduce these costs.
Replacements must be requested within 7 days of receipt. Items must be in original condition, and customer is responsible for return shipping.
