Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                Toray Multirotor Drone, Good win X9 Multirotor Drone, 3K carbon Multirotor Drone


Body Material:	Toray 3K Carbon Fiber	Production Process:	High Temperature And High Pressure Molding
Casing Thickness:	Conventional 0.6mm	Case Weight:	5.5KG
Chassis + Power Equipment Weight:	10KG	Equivalent Wheelbase:	1900mm
Number Of Rotors:	6	Expansion Size:	1510mm1735mm610mm
Folding Size:	760mm760mm750mm	Standard Size Of Battery Compartment:	250mm180mm150mm
Recommended Load:	20KG	No-load Life:	> 50min
Load 15KG Endurance:	> 40min	Adaptive Motor:	Haoying X9 Power Set
Suitable Blade:	34 Inches	Take-off And Landing Mode:	Vertical Take-off And Landing

Body Material:	Toray 3K Carbon Fiber
Production Process:	High Temperature And High Pressure Molding
Casing Thickness:	Conventional 0.6mm
Case Weight:	5.5KG
Chassis + Power Equipment Weight:	10KG
Equivalent Wheelbase:	1900mm
Number Of Rotors:	6
Expansion Size:	1510mm1735mm610mm
Folding Size:	760mm760mm750mm
Standard Size Of Battery Compartment:	250mm180mm150mm
Recommended Load:	20KG
No-load Life:	> 50min
Load 15KG Endurance:	> 40min
Adaptive Motor:	Haoying X9 Power Set
Suitable Blade:	34 Inches
Take-off And Landing Mode:	Vertical Take-off And Landing

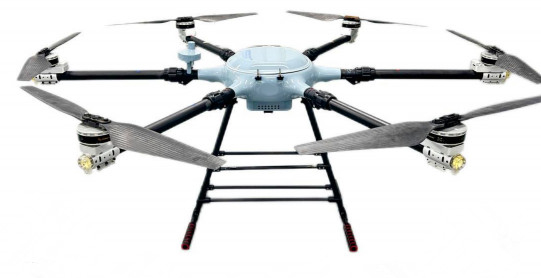

Multirotor Drone Toray 3K Carbon Good Win X9 Power Set

Product Specifications

Attribute	Value
Body material	Toray 3K carbon fiber
Production process	High temperature and high pressure molding
Casing thickness	Conventional 0.6mm
Case weight	5.5KG
Chassis + power equipment weight	10KG
Equivalent wheelbase	1900mm
Number of rotors	6
Expansion size	1510mm1735mm610mm
Folding size	760mm760mm750mm
Standard size of battery compartment	250mm180mm150mm
Recommended load	20KG
No-load life	> 50min
Load 15KG endurance	> 40min
Adaptive motor	Haoying X9 power set
Suitable blade	34 inches
Take-off and landing mode	Vertical take-off and landing

Product Features

Toray 3K Carbon Fiber Frame

Lightweight and robust: Designed for heavy-duty work with optimal balance between weight and strength.
High durability: 3K fiber configuration ensures exceptional rigidity and fatigue resistance for demanding UAV operations.
Aerodynamic efficiency: Optimized design minimizes drag for improved flight performance under heavy payloads.

Application Fields
