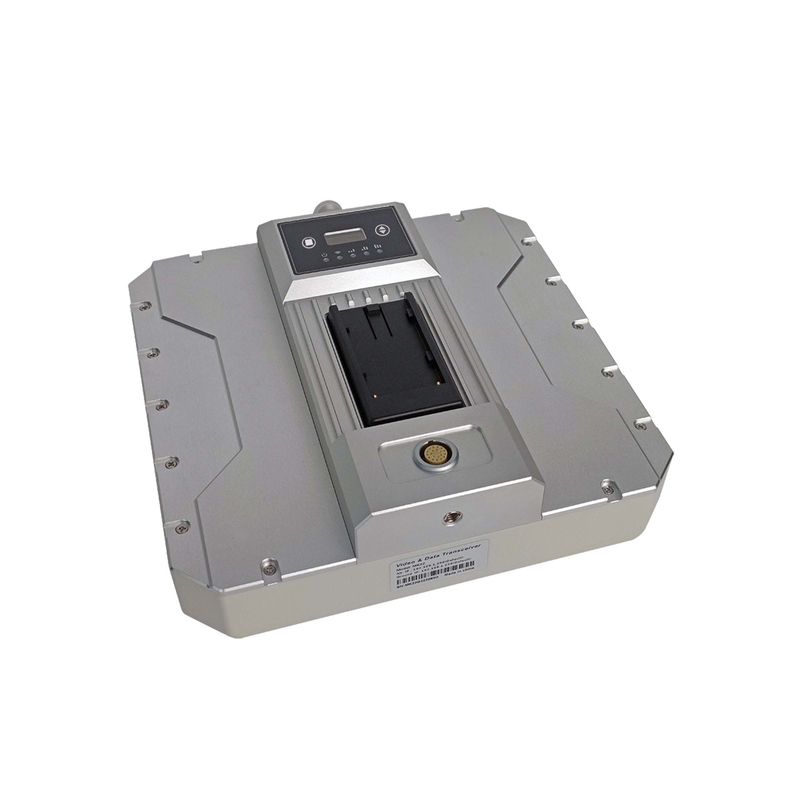

MK55 Remote Uav Data Link Drone Image Transmission System

Name: MK55 Remote Uav Data Link Drone Image Transmission System
Brand: Guangzhou Gesai Intelligent Electronic Technology Co., Ltd.
SKU: MK55
Price: 7,521.00 USD
Availability: InStock

Product Details

Place of Origin: Guangdong, China

Brand Name: GS

Model Number: MK55

Document: Product Brochure PDF

Payment & Shipping Terms

Price: Negotiable

Delivery Time: 6-8

Payment Terms: T/T

Supply Ability: 100

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                MK55 remote uav data link, Drone Image Transmission System, MK55 uav data link


Model Number:	MK22/55	Air Size:	10cmx6.3cmx2.2cm/150g
Ground Size:	25.6cmx25.6cmx9.4cm/1.9kg	Operating Frequency Range:	800MHz/1.4GHz/2.4GHz
Channel Bandwidth:	5MHz/10MHz/20MHz	Modulation Mode:	OFDM
Output Power:	MK22: 30dBm+1dB; MK55: 33dBm+1dB	Sensitivity:	≤-92dBm
Communication Distance:	MK22:22km; MK55: 55km	Air Bitrate:	Max. 30Mbps
Power Supply Range:	DC9-28V(Battery3S~6S)	Power Consumption:	≤8.5W
Operating Temperature:	-40℃~+70℃	Storage Temperature:	-40℃~+85°C

Model Number:	MK22/55
Air Size:	10cmx6.3cmx2.2cm/150g
Ground Size:	25.6cmx25.6cmx9.4cm/1.9kg
Operating Frequency Range:	800MHz/1.4GHz/2.4GHz
Channel Bandwidth:	5MHz/10MHz/20MHz
Modulation Mode:	OFDM
Output Power:	MK22: 30dBm+1dB; MK55: 33dBm+1dB
Sensitivity:	≤-92dBm
Communication Distance:	MK22:22km; MK55: 55km
Air Bitrate:	Max. 30Mbps
Power Supply Range:	DC9-28V(Battery3S~6S)
Power Consumption:	≤8.5W
Operating Temperature:	-40℃~+70℃
Storage Temperature:	-40℃~+85°C

MK55 Remote Uav Data Link Drone Image Transmission System

MK55 Remote UAV Data Link Drone Image Transmission System

Product Specifications

Attribute	Value
Model number	MK22/55
Air Size	10cm × 6.3cm × 2.2cm / 150g
Ground Size	25.6cm × 25.6cm × 9.4cm / 1.9kg
Operating frequency range	800MHz/1.4GHz/2.4GHz
Channel bandwidth	5MHz/10MHz/20MHz
Modulation mode	OFDM
Output power	MK22: 30dBm+1dB; MK55: 33dBm+1dB
Sensitivity	≤-92dBm
Communication distance	MK22: 22km; MK55: 55km
Air Bitrate	Max. 30Mbps
Power supply range	DC9-28V (Battery 3S~6S)
Power consumption	≤8.5W
Operating temperature	-40℃ to +70℃
Storage temperature	-40℃ to +85℃

Key Features

Modular design for flexible configuration
Supports point-to-point networking
High-gain antenna for superior signal strength
Extended transmission distance up to 22KM/48KM
Ultra-low latency for real-time data transmission
Simultaneous multiple video transmission capability

Our Services

1 Year Warranty included for all purchases

14-day return policy for unsatisfied customers (contact required before return)

Free replacement for defective items within 3 months

Post-warranty replacement available (customer covers shipping)

Frequently Asked Questions

Do you support OEM/ODM?

Yes. We can print your logo on the product.

About samples:

Samples ready within 7 days (10-20 days for OEM/ODM). Sample fee and shipping charged.

What is the delivery time?

Regular orders ship within 15 days; OEM/ODM within 25-45 days (quantity dependent).

What is the minimum order quantity?

No MOQ for wholesale (1 piece accepted), including OEM/ODM.

What are your payment terms?

L/C or TT 100% payment accepted.

Can you reduce the shipping cost?

We always select the most economical shipping option available.

Return policy:

Replacements must be requested within 7 days of receipt. Items must be in original condition.
