Highlight:

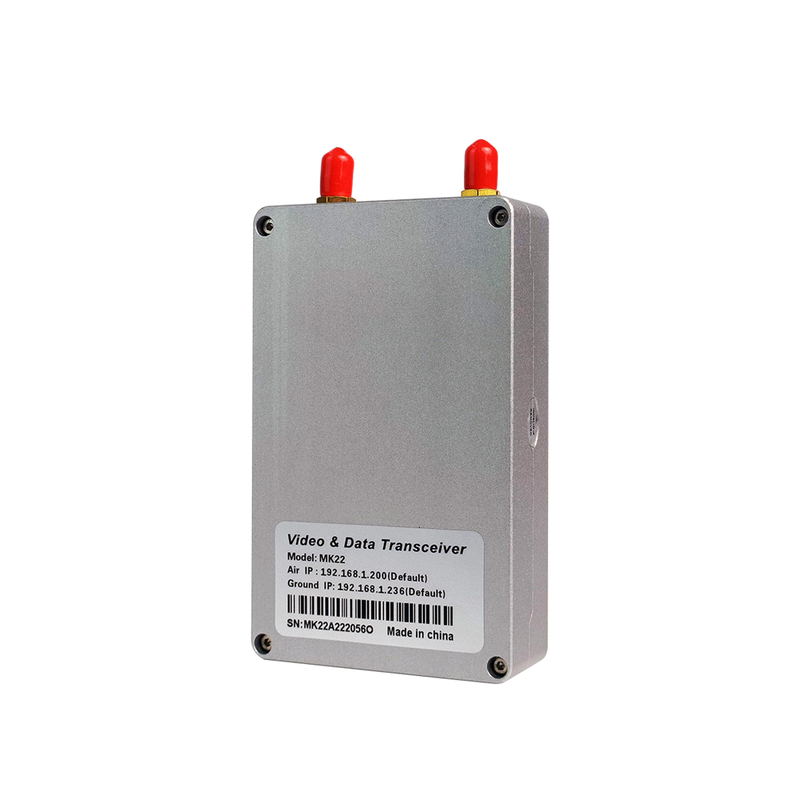

                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                M22 Drone Image Transmission System, 22km Drone Image Transmission, 22km Drone Image Transmission System


Model Number:	MK22/55	Air Size:	10cmx6.3cmx2.2cm/150g
Ground Size:	25.6cmx25.6cmx9.4cm/1.9kg	Operating Frequency Range:	800MHz/1.4GHz/2.4GHz
Channel Bandwidth:	5MHz/10MHz/20MHz	Modulation Mode:	OFDM
Output Power:	MK22: 30dBm+1dB; MK55: 33dBm+1dB	Sensitivity:	≤-92dBm
Communication Distance:	MK22:22km; MK55: 55km	Air Bitrate:	Max. 30Mbps
Power Supply Range:	DC9-28V(Battery3S~6S)	Power Consumption:	≤8.5W
Operating Temperature:	-40℃~+70℃	Storage Temperature:	-40℃~+85°C

Model Number:	MK22/55
Air Size:	10cmx6.3cmx2.2cm/150g
Ground Size:	25.6cmx25.6cmx9.4cm/1.9kg
Operating Frequency Range:	800MHz/1.4GHz/2.4GHz
Channel Bandwidth:	5MHz/10MHz/20MHz
Modulation Mode:	OFDM
Output Power:	MK22: 30dBm+1dB; MK55: 33dBm+1dB
Sensitivity:	≤-92dBm
Communication Distance:	MK22:22km; MK55: 55km
Air Bitrate:	Max. 30Mbps
Power Supply Range:	DC9-28V(Battery3S~6S)
Power Consumption:	≤8.5W
Operating Temperature:	-40℃~+70℃
Storage Temperature:	-40℃~+85°C

M22 Transmissiondistance Up To 22km Drone Image Transmission System

M22 Transmission Distance Up To 22km Drone Image Transmission System

Product Specifications

Attribute	Value
Model number	MK22/55
Air Size	10cm × 6.3cm × 2.2cm / 150g
Ground Size	25.6cm × 25.6cm × 9.4cm / 1.9kg
Operating frequency range	800MHz / 1.4GHz / 2.4GHz
Channel bandwidth	5MHz / 10MHz / 20MHz
Modulation mode	OFDM
Output power	MK22: 30dBm+1dB; MK55: 33dBm+1dB
Sensitivity	≤-92dBm
Communication distance	MK22: 22km; MK55: 55km
Air Bitrate	Max. 30Mbps
Power supply range	DC9-28V (Battery 3S~6S)
Power consumption	≤8.5W
Operating temperature	-40℃ to +70℃
Storage temperature	-40℃ to +85°C

Key Features

Modular design for flexible integration
Supports point-to-point networking
High-gain antenna for superior signal strength
Extended transmission distance up to 22KM/48KM
Ultra-low latency for real-time video transmission
Simultaneous multiple video transmission capability

Our Services

1 Year Warranty: Buy with confidence knowing your purchase is protected.

14-Day Returns: If unsatisfied, return within 14 days for replacement or refund.

3-Month Replacement: Defective items within 3 months replaced at no extra charge.

Extended Support: After 3 months, we still replace defective items (shipping fee applies).

Frequently Asked Questions

Q1: Do you support OEM/ODM?

A1: Yes. We can print your logo on the product.

Q2: About samples.

A2: Samples ready within 7 days (10-20 days for OEM/ODM). Sample fee and shipping charged.

Q3: What is the delivery time?

A3: Regular orders ship within 15 days, OEM/ODM within 25-45 days (quantity dependent).

Q4: What is the minimum order quantity?

A4: No MOQ for wholesale (1 piece accepted), including OEM/ODM.

Q5: What are your payment terms?

A5: L/C or TT 100%.

Q6: Can you reduce the shipping cost?

A6: We always choose the most economical shipping option available.

Q7: Return policy.

A7: Contact us within 7 days for replacements. Items must be in original condition.
