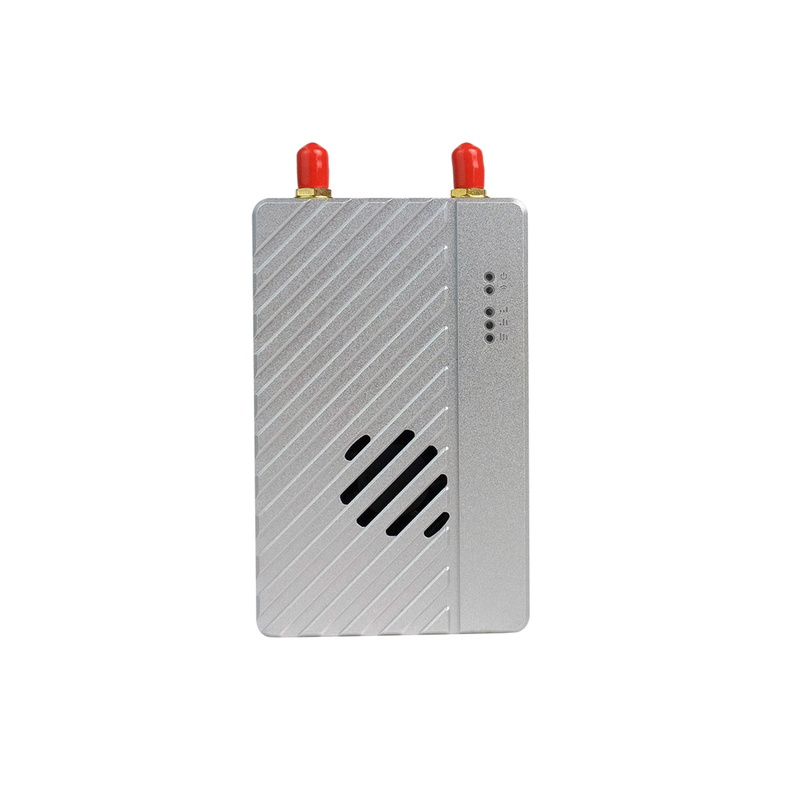

M58 Ultra Long Range Drone Image Transmission System

Product Details

Place of Origin: Guangdong, China

Brand Name: GS

Model Number: M58

Document: Product Brochure PDF

Payment & Shipping Terms

Price: Negotiable

Delivery Time: 6-8

Payment Terms: T/T

Supply Ability: 100

Get Best Price

Chat now

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                    M58 Drone Image Transmission System, Ultra Long Range Drone Image Transmission System


Model Number:	M58	Air Size:	10cmx6.3cmx2.2cm/140g
Ground Size:	45cmx39cmx17cm/5kg	Operating Frequency Range:	800MHz/1.4GHz
Channel Bandwidth:	5MHz/10MHz/20MHz	Modulation Mode:	OFDM
Output Power:	33dBm+1dB	Sensitivity:	≤-92dBm
Communication Distance:	M58:48.5KM	Air Bitrate:	Max. 30Mbps
Power Supply Range:	DC 9-28V(Battery 3S~6S)	Power Consumption:	7W(Air);30w(Ground)
Operating Temperature:	-40℃~+70°C	Storage Temperature:	-40℃~+85°C

Model Number:	M58
Air Size:	10cmx6.3cmx2.2cm/140g
Ground Size:	45cmx39cmx17cm/5kg
Operating Frequency Range:	800MHz/1.4GHz
Channel Bandwidth:	5MHz/10MHz/20MHz
Modulation Mode:	OFDM
Output Power:	33dBm+1dB
Sensitivity:	≤-92dBm
Communication Distance:	M58:48.5KM
Air Bitrate:	Max. 30Mbps
Power Supply Range:	DC 9-28V(Battery 3S~6S)
Power Consumption:	7W(Air);30w(Ground)
Operating Temperature:	-40℃~+70°C
Storage Temperature:	-40℃~+85°C

M58 Ultra Long Range Drone Image Transmission System

Product Specifications

Attribute	Value
Model number	M58
Air Size	10cmx6.3cmx2.2cm/140g
Ground Size	45cmx39cmx17cm/5kg
Operating frequency range	800MHz/1.4GHz
Channel bandwidth	5MHz/10MHz/20MHz
Modulation mode	OFDM
Output power	33dBm+1dB
Sensitivity	≤-92dBm
Communication distance	M58:48.5KM
Air Bitrate	Max. 30Mbps
Power supply range	DC 9-28V(Battery 3S~6S)
Power consumption	7W(Air);30w(Ground)
Operating temperature	-40℃~+70°C
Storage temperature	-40℃~+85°C

Product Features

Continues Maestro series features: high integration, stable performance, and reliability
Fully compatible with M52 interfaces with industry-leading 48.5 km transmission distance
Supports simultaneous transmission of up to four channels of video, data, and control signals
Ultra-high cost performance reduces application limits for long-distance UAVs
Advanced RF technology sets new standards for wireless UAV data links
Rich interface options with two operation modes
Open SDK for customization
Integrated tracking antenna for superior performance

Our Services

1. We provide 1 Year Warranty. Buy with confidence.

2. If you are not satisfied when you receive your item, please return it within 14 days for a replacement or money back. Please contact me before you return it.

3. If item is defective in 3 months, We will send you a replacement without extra charger, or offer refund after we receive the defective item.

4. If item is defective after 3 months, you can still send it back to us. We will send you a new one after receiving the defective item. But you have to pay the extra shipping fee.

Frequently Asked Questions

Q1: Do you support OEM/ODM?

A1: Yes. We can print your logo on the product.

Q2: About samples.

A2: Under normal circumstances, samples will be ready within 7 days, and 10-20 days for OEM/ODM orders. Sample fee and shipping will be charged.

Q3: What is the delivery time?

A3: For regular orders, we can ship within 15 days, for OEM/ODM, we can ship within 25-45 days (depending on the quantity). In the event of delays, we will notify you in advance of the status and resolution.

Q4: What is the minimum order quantity?

A4: There is no MOQ for wholesale (1 piece accepted), including OEM/ODM.

Q5: What are your payment terms?

A5: L/C.TT100%.

Q6: Can you reduce the shipping cost?

A6: When calculating the shipping cost for you, we always choose the cheapest and safest express. Although we have partnerships with shipping companies, we can't keep costs down because it's not us who get paid. If you think it's expensive for you, you can always make your own choice.

Q7: Return policy.

A7: If you want to replace the received item, you must contact us within 7 days after receiving the item. Returned items should be in their original condition and you should pay for additional shipping.
