Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                RC Wireless Transmission System, M51 Video Transmission System, Data Video Transmission System


Model Number:	M51	Air Size:	9.4cmx5.5cmx1.7cm/105g
Ground Size:	11.2cmx6.4cmx1.9cm/143g	Operating Frequency Range:	800MHz/1.4GHz/2.4GHz
Channel Bandwidth:	3MHz/5MHz/10MHz/20MHzOFDM	Modulation Mode:	OFDM
Output Power:	25dBm+1dB	Sensitivity:	≤-92dBm
Communication Distance:	17km	Air Bitrate:	500k~5Mbps
Power Supply Range:	DC9-28V(3S~6S)	Power Consumption:	6.5W(Air);5W(Ground)
Operating Temperature:	-40℃~+70°C	Storage Temperature:	-40℃~+85°C

Model Number:	M51
Air Size:	9.4cmx5.5cmx1.7cm/105g
Ground Size:	11.2cmx6.4cmx1.9cm/143g
Operating Frequency Range:	800MHz/1.4GHz/2.4GHz
Channel Bandwidth:	3MHz/5MHz/10MHz/20MHzOFDM
Modulation Mode:	OFDM
Output Power:	25dBm+1dB
Sensitivity:	≤-92dBm
Communication Distance:	17km
Air Bitrate:	500k~5Mbps
Power Supply Range:	DC9-28V(3S~6S)
Power Consumption:	6.5W(Air);5W(Ground)
Operating Temperature:	-40℃~+70°C
Storage Temperature:	-40℃~+85°C

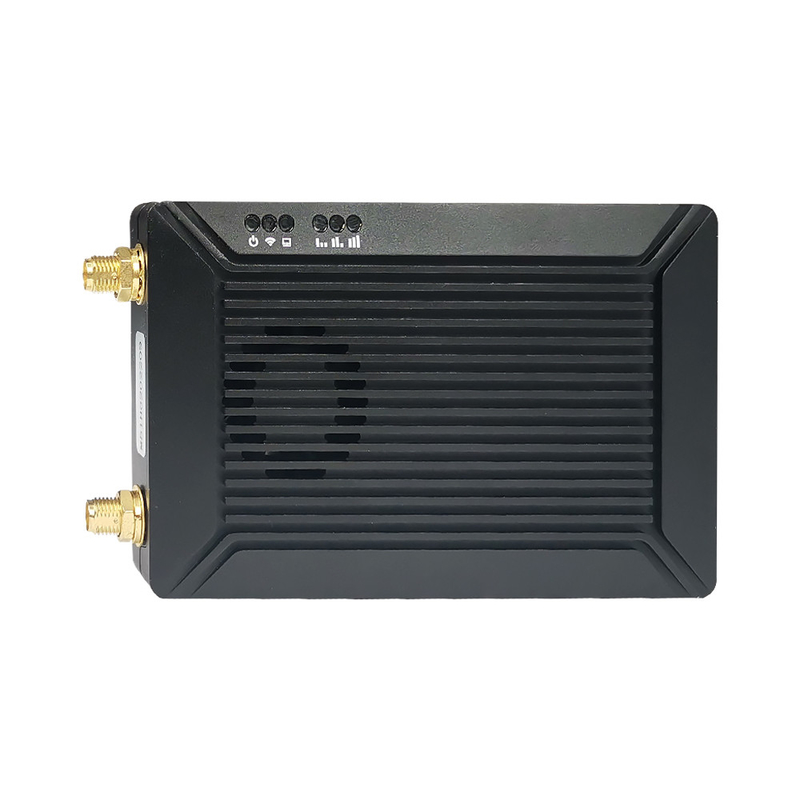

M51 Video Data RC Wireless Transmission System

Product Specifications

Attribute	Value
Model number	M51
Air Size	9.4cm × 5.5cm × 1.7cm / 105g
Ground Size	11.2cm × 6.4cm × 1.9cm / 143g
Operating frequency range	800MHz / 1.4GHz / 2.4GHz
Channel bandwidth	3MHz / 5MHz / 10MHz / 20MHz OFDM
Modulation mode	OFDM
Output power	25dBm +1dB
Sensitivity	≤ -92dBm
Communication distance	17km
Air Bitrate	500k ~ 5Mbps
Power supply range	DC9-28V (3S~6S)
Power consumption	6.5W (Air); 5W (Ground)
Operating temperature	-40℃ ~ +70°C
Storage temperature	-40℃ ~ +85°C
