WF-1000S50-3K Tethered UAV Power Supply 4000W

Name: WF-1000S50-3K Tethered UAV Power Supply 4000W
Brand: Guangzhou Gesai Intelligent Electronic Technology Co., Ltd.
SKU: WF-800S50-4K
Price: 7,521.00 USD
Availability: InStock

Product Details

Place of Origin: Made in China

Brand Name: GS

Model Number: WF-800S50-4K

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: Negotiable

Delivery Time: 6-8

Payment Terms: T/T

Supply Ability: 100

Get Best Price

Product Details

Product Description

Highlight:

External Dimension:	1979575mm	Input Voltage:	680-800V
Output Voltage:	50V/80A	Input Terminal:	Swing The Wire
Output Terminal::	Swing The Wire	Weight:	1000grams

External Dimension:	1979575mm
Input Voltage:	680-800V
Output Voltage:	50V/80A
Input Terminal:	Swing The Wire
Output Terminal::	Swing The Wire
Weight:	1000grams

WF-1000S50-3K Tethered UAV Power Supply 4000W

Technical Specifications

Attribute	Value
External Dimension	1979575mm
Input voltage	680-800V
Output voltage	50V/80A
Input terminal	Swing the wire
Output terminal	Swing the wire
Weight	1000grams

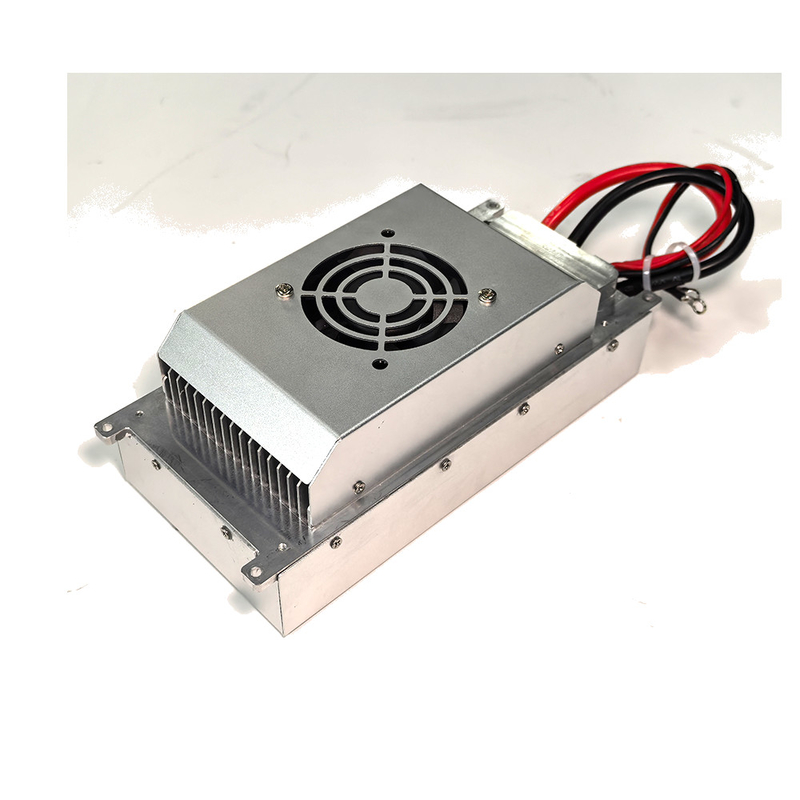

High-Power DC-DC Converter Module

This high-efficiency DC-DC power module is engineered for demanding applications requiring stable, high-current power conversion. With a compact 197×95×75mm footprint, it seamlessly transforms 680-800V high-voltage input into a robust 50V/80A (4KW) output, making it ideal for industrial, aerospace, and specialized equipment.

Key Features

Wide input range: Supports 680-800V DC input, compatible with industrial and renewable energy systems
High-current output: Delivers 50V/80A(4KW) for power-hungry applications
Optimized efficiency: Advanced topology ensures >92% efficiency, reducing energy waste
Flexible wiring: Flying lead terminals for easy integration into custom setups
Robust build: Industrial-grade components withstand harsh environments (-40°C to +85°C)

Advanced Protection Features

DC-DC isolated power converter: Isolates and converts 800V DC input to 50V DC output with a total output power of 4000W
High power density, small size, and light weight design
Comprehensive protection: Input features overvoltage/undervoltage protection, output features overvoltage protection, current limiting, short-circuit protection, and over-temperature protection
