Home > products > Drone Camera > Drone Camera 48-megapixel Dual Output Quad Light Small Pod

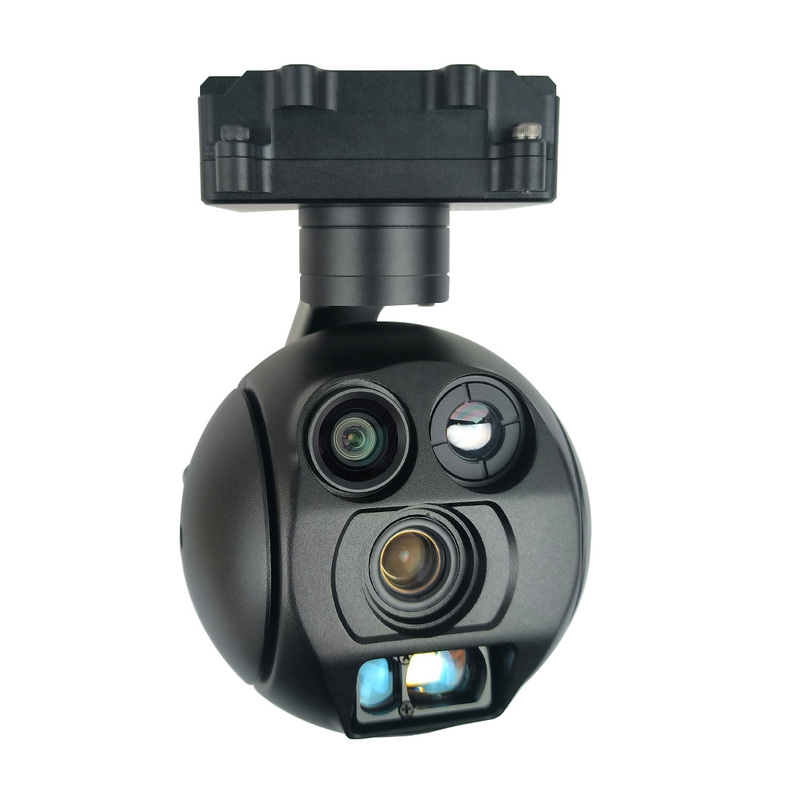

Drone Camera 48-megapixel Dual Output Quad Light Small Pod

Product Details

Place of Origin: Made in China

Brand Name: GS

Model Number: EHP03G6S90D15

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: Negotiable

Delivery Time: 6-8

Payment Terms: T/T

Supply Ability: 100

Get Best Price
Highlight:

small pod Drone Camera

,

48 megapixel Drone Camera

,

quad light Drone Camera

Voltage:
DC12V-26.2V
Power:
Dynamic 8W
Roll Angle Range:
﹣45°~ ﹢45°
Pitch Angle Range:
﹣40°~ ﹢100°
Yaw Angle Action Range:
﹣140°~ ﹢140°
Support Mode:
1080P@30fps
Measuring Range:
5m~1500m
Resolution:
640*512 Pixel
Wavelength Coverage:
8~14μm
Weight:
360±20g
Smallest Recognizable Size:
32 × 32 Pixels
Voltage:
DC12V-26.2V
Power:
Dynamic 8W
Roll Angle Range:
﹣45°~ ﹢45°
Pitch Angle Range:
﹣40°~ ﹢100°
Yaw Angle Action Range:
﹣140°~ ﹢140°
Support Mode:
1080P@30fps
Measuring Range:
5m~1500m
Resolution:
640*512 Pixel
Wavelength Coverage:
8~14μm
Weight:
360±20g
Smallest Recognizable Size:
32 × 32 Pixels
Drone Camera 48-megapixel Dual Output Quad Light Small Pod


Drone Camera 48-megapixel dual-output quad-light small pod


Description




EHP03G6S90D15 is a high-precision 3-axis gimbal that integrates 3x optical zoom, 1080P fixed focus, 640x512 thermal imaging, and 1500m laser rangefinder. It adopts a compact design and features high stability, high integration, and low power consumption. The visible light camera uses a 48 million effective pixels COMS sensor; the thermal imaging uses a vanadium oxide 640*512 resolution detector with a built-in baffle. The system supports network RTSP video stream output in picture-in-picture mode, various pseudo color display, and overall temperature measurement. The camera and gimbal both can be controlled via Serial port, Network, S.BUS, supports TF memory card dual-channel local recording and photography. The focal length of the thermal imaging lens is 9.1 mm.



Structure


Drone Camera 48-megapixel Dual Output Quad Light Small Pod 0

argument


3x optical zoom EO

1080P fixed focus EO

640 thermal imaging:9.1mm focal length IR

1500m LRF

48MP COMS sensor

Network/UART/S.BUS control

AI target detection and tracking

3-Axis stabilized gimbal


Product drawing
Drone Camera 48-megapixel Dual Output Quad Light Small Pod 1
