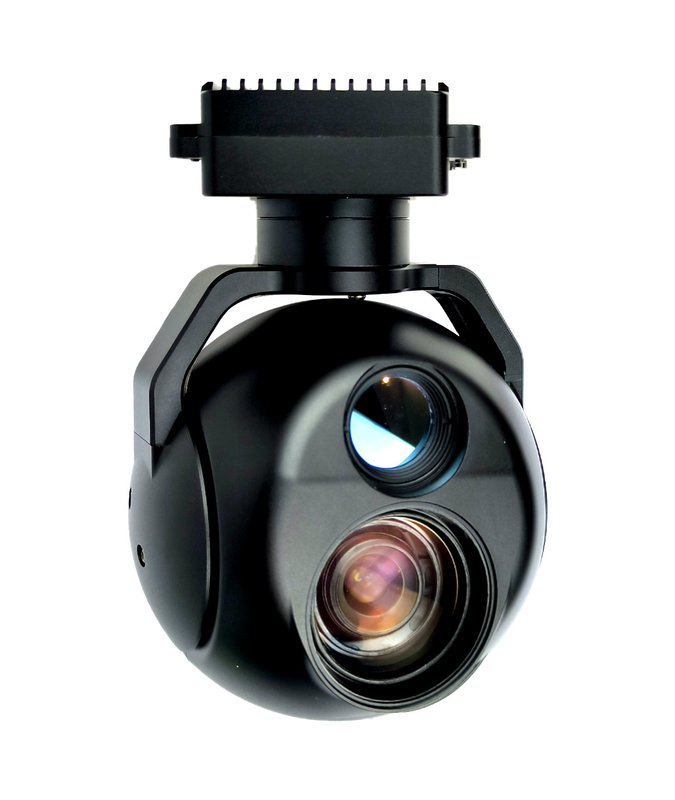

10x Visible Light Optical Zoom Camera 2-Axis Stabilized IP Output Gimbal

Name: 10x Visible Light Optical Zoom Camera 2-Axis Stabilized IP Output Gimbal
Brand: Guangzhou Gesai Intelligent Electronic Technology Co., Ltd.
SKU: DYD10G613
Price: 1,030.00 USD
Availability: InStock

Product Details

Place of Origin: Made in China

Brand Name: GS

Model Number: DYD10G613

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: Negotiable

Delivery Time: 6-8

Payment Terms: T/T

Supply Ability: 100

Get Best Price

Chat now

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                    2-Axis Stabilized IP Output Gimbal, 10x visible light Optical zoom camera, Optical Zoom Camera


Voltage:	DC 12V-26.2V	Power:	Dynamic 6.5W
Pitch Action Range:	-25~+110°	Yaw Angle Action Range:	-140°～ +140°
Support Mode:	1080P 30 Fps	Resolution Ratio:	640×512 Pixel
Wavelength Range:	8～14μm	Minimum Tracking Target Size:	16×16 Pixels
Maximum Tracking Target Size:	256×256 Pixels	Maximum Occlusion Time:	2 Seconds

Voltage:	DC 12V-26.2V
Power:	Dynamic 6.5W
Pitch Action Range:	-25~+110°
Yaw Angle Action Range:	-140°～ +140°
Support Mode:	1080P 30 Fps
Resolution Ratio:	640×512 Pixel
Wavelength Range:	8～14μm
Minimum Tracking Target Size:	16×16 Pixels
Maximum Tracking Target Size:	256×256 Pixels
Maximum Occlusion Time:	2 Seconds

10x Visible Light Optical Zoom Camera 2-Axis Stabilized IP Output Gimbal

Product Specifications

Attribute	Value
Voltage	DC 12V-26.2V
Power	Dynamic 6.5W
Pitch action range	-25~+110°
Yaw angle action range	-140°～ +140°
Support mode	1080P 30 fps
Resolution ratio	640×512 pixel
Wavelength Range	8～14μm
Minimum tracking target size	16×16 pixels
Maximum tracking target size	256×256 pixels
Maximum occlusion time	2 seconds

Product Overview

The DYD10G613 is an advanced integrated dual sensor camera system featuring:

10x optical zoom CMOS sensor with 9x digital zoom (90x total hybrid zoom)
13mm focal length 640×512 uncooled thermal imaging sensor with 9x digital zoom
Professional high-precision two-axis stabilization gimbal
Ethernet IP output and IP control

Key Features

90x hybrid zoom	640×512 thermal imaging
4 picture-in-picture modes	Menu adjustment parameters
10 thermal imaging pseudo-color modes	Micro-sd card dual-channel recording

Technical Specifications

2-Axis stabilized PTZ
10X Optical Zoom, 9x Digital Zoom
640×512 Thermal Imaging Sensor
AI Target Detection and Tracking (Tracking version)
TF card Recording & Photograph
Includes ground control software/App for real-time monitoring and control

Product Structure

Product Diagram

Warranty & Services

1 Year Warranty included

14-day return policy for unsatisfied customers

Free replacement for defective items within 3 months

Post-warranty repair service available (shipping fee applies)

Frequently Asked Questions

Q: Do you support OEM/ODM?

A: Yes. We can print your logo on the product.

Q: About samples.

A: Samples ready within 7 days (10-20 days for OEM/ODM). Sample fee and shipping charged.

Q: What is the delivery time?

A: Regular orders ship within 15 days, OEM/ODM within 25-45 days.

Q: What is the minimum order quantity?

A: No MOQ - wholesale orders accepted from 1 piece.

Q: What are your payment terms?

A: L/C or TT 100% payment accepted.
