Home > products > Drone Camera > DYD40G635L40 140 Hybird Zoom EO IP Camera With 2-Axis Gimbal Drone Camera

DYD40G635L40 140 Hybird Zoom EO IP Camera With 2-Axis Gimbal Drone Camera

Product Details

Place of Origin: Made in China

Brand Name: GS

Model Number: DYD40G635L40

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: Negotiable

Delivery Time: 6-8

Payment Terms: T/T

Supply Ability: 100

Get Best Price
Highlight:

2-Axis Gimbal Drone Camera

,

DYD40G635L40 Drone Camera

,

140 Hybird Zoom EO IP Camera

Voltage:
DC 12V-26.2V
Power Supply:
Dynamic 8W
Pitch Angle:
-20~+100°
Yaw Angle:
±360°*N
Angle Jitter In Pitch And Roll:
±0.02°
Horizontal Angle Jitter:
±0.03°
Min Tracking Target Size:
16×16 Pixels
Max Tracking Target Size:
256×256 Pixels
Target Memory Time:
2 Seconds
Resolution:
640×512
Voltage:
DC 12V-26.2V
Power Supply:
Dynamic 8W
Pitch Angle:
-20~+100°
Yaw Angle:
±360°*N
Angle Jitter In Pitch And Roll:
±0.02°
Horizontal Angle Jitter:
±0.03°
Min Tracking Target Size:
16×16 Pixels
Max Tracking Target Size:
256×256 Pixels
Target Memory Time:
2 Seconds
Resolution:
640×512
DYD40G635L40 140 Hybird Zoom EO IP Camera With 2-Axis Gimbal Drone Camera


DYD40G635L40 140 Hybird Zoom EO +35mm 640 IR +4000m LRF

IP Camera with 2-Axis Gimbal

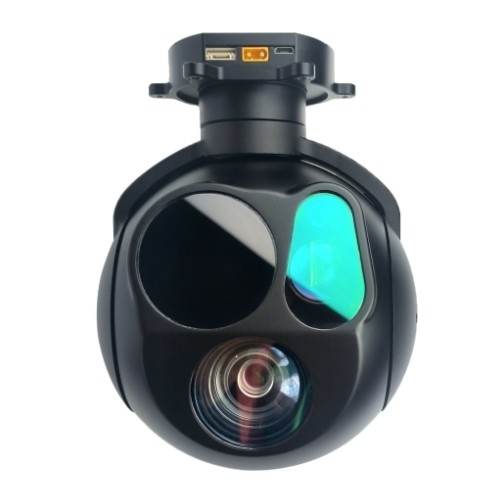

DYD40G635L40 is a three-sensor two-axis stabilization gimbal camera system that integrates an 8MP 140 hybrid zoom, 2x lossless zoom visible light sensor, a 35mm focal length 640*512 thermal sensor, and an up to 4000-meter laser rangefinder. The gimbal uses high-precision encoder FOC control scheme, characterized by high stability, small size, light weight, and low power consumption, supporting network RTSP video output. The visible light sensor employs a high sensitivity, high dynamic range CMOS sensor with an effective pixel of 8 million. The camera supports IP RTSP streaming output, Picture-in-Picture modes and pseud-color modes. Both network and serial port as well as S.BUS can control the camera and gimbal, and it supports local TF card storage.



Rapid Focusing

AI Target Detection and Tracking

High Precision, High Coordination Control Algorithm

Card reading online - HTTP read pictures and videos

Thermal Imaging with Digital Zoom

Provides Integrated Ground Station Software


DYD40G635L40 140 Hybird Zoom EO  IP Camera With 2-Axis Gimbal Drone Camera 0


140X hybrid zoom, 2x lossless zoom

35mm focal length 640 thermal imaging

4000 meter laser ranging, video overlay

AI Target Detection and Tracking (Tracking version)

Ten false color patterns

Network and serial port synchronization control

Two-axis stabilization PTZ

TF dual-channel video recording , network operation TF card


DYD40G635L40 140 Hybird Zoom EO  IP Camera With 2-Axis Gimbal Drone Camera 1
