Product Details
Place of Origin: Made in China
Brand Name: GS
Model Number: DIY10S90
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Delivery Time: 6-8
Payment Terms: T/T
Supply Ability: 100
|
Voltage:
|
DC12V-26.2V
|
Power Supply:
|
Dynamic 5W
|
Roll Angle:
|
-45°～ +45°
|
Pitch Angle:
|
-45°～ +120°
|
Yaw Angle:
|
-285°～ +285°
|
Pitch And Roll Jitter Angle:
|
±0.02°
|
Horizontal Jitter Angle:
|
±0.03°
|
Min Tracking Target Size:
|
16×16 Pixels
|
Max Tracking Target Size:
|
256×256 Pixels
|
|
Voltage:
|
DC12V-26.2V
|
|
Power Supply:
|
Dynamic 5W
|
|
Roll Angle:
|
-45°～ +45°
|
|
Pitch Angle:
|
-45°～ +120°
|
|
Yaw Angle:
|
-285°～ +285°
|
|
Pitch And Roll Jitter Angle:
|
±0.02°
|
|
Horizontal Jitter Angle:
|
±0.03°
|
|
Min Tracking Target Size:
|
16×16 Pixels
|
|
Max Tracking Target Size:
|
256×256 Pixels
|
| Attribute | Value |
|---|---|
| Voltage | DC12V-26.2V |
| Power Supply | Dynamic 5W |
| Roll Angle | -45°～ +45° |
| Pitch Angle | -45°～ +120° |
| Yaw Angle | -285°～ +285° |
| Pitch and Roll Jitter Angle | ±0.02° |
| Horizontal Jitter Angle | ±0.03° |
| Min tracking target size | 16×16 pixels |
| Max tracking target size | 256×256 pixels |

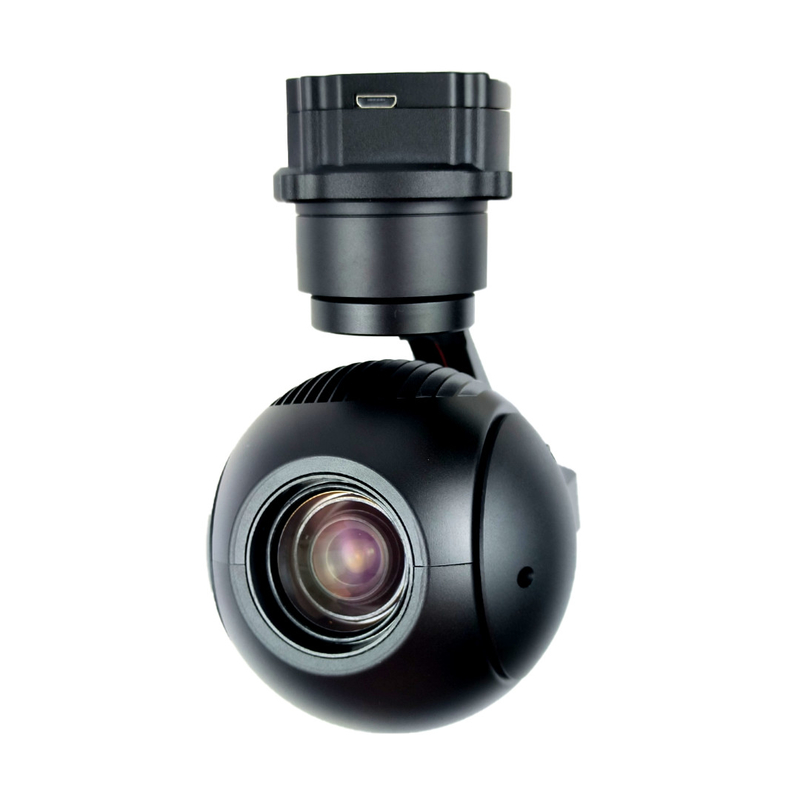

The DIY10S90 is an advanced drone gimbal system featuring 90x hybrid zoom and 3-axis stabilized PTZ with IP output. Utilizing a high-precision encoder FOC control scheme, this system offers exceptional stability in a compact, lightweight design with low power consumption.
The camera features a COMS SENSOR with 2 megapixel resolution, supporting 1080P network RTSP code stream output. Control is available via both UART and IP interfaces, with local TF storage capability.
