Product Details
Place of Origin: Guangdong, China
Brand Name: GS
Model Number: 5320 235KV 360KV 400KV
Document: Product Brochure PDF
Payment & Shipping Terms
Price: Negotiable
Delivery Time: 6-8
Payment Terms: T/T
Supply Ability: 100
|
Motor Model:
|
VAX 5320 EEE V1.0
|
Motor Size:
|
D:61.1 X53 Mm
|
Propeller Mounting Holes:
|
D:12 M3x4, D:20 M3x4, D:31 M3x4
|
Shaft Diameter:
|
IN: 8 Mm
|
Bearing:
|
EZ0 688ZZ*2/NMB 1980*1
|
Cable Length:
|
EZ0 688ZZ*2/NMB 1980*1
|
Rotor Balance:
|
≤5 Mg
|
Motor Balance:
|
≤10 Mg
|
Motor Mounting Holes:
|
D:30 M4x4, D:44 M4x4
|
Disruptive Test:
|
500 V
|
|
Motor Model:
|
VAX 5320 EEE V1.0
|
|
Motor Size:
|
D:61.1 X53 Mm
|
|
Propeller Mounting Holes:
|
D:12 M3x4, D:20 M3x4, D:31 M3x4
|
|
Shaft Diameter:
|
IN: 8 Mm
|
|
Bearing:
|
EZ0 688ZZ*2/NMB 1980*1
|
|
Cable Length:
|
EZ0 688ZZ*2/NMB 1980*1
|
|
Rotor Balance:
|
≤5 Mg
|
|
Motor Balance:
|
≤10 Mg
|
|
Motor Mounting Holes:
|
D:30 M4x4, D:44 M4x4
|
|
Disruptive Test:
|
500 V
|
| Attribute | Value |
|---|---|
| Motor Model | VAX 5320 EEE V1.0 |
| Motor Size | D:61.1 x53 mm |
| Propeller Mounting Holes | D:12 M3x4, D:20 M3x4, D:31 M3x4 |
| Shaft Diameter | IN: 8 mm |
| Bearing | EZ0 688ZZ*2/NMB 1980*1 |
| Cable Length | EZ0 688ZZ*2/NMB 1980*1 |
| Rotor Balance | ≤5 mg |
| Motor Balance | ≤10 mg |
| Motor Mounting Holes | D:30 M4x4, D:44 M4x4 |
| Disruptive test | 500 V |

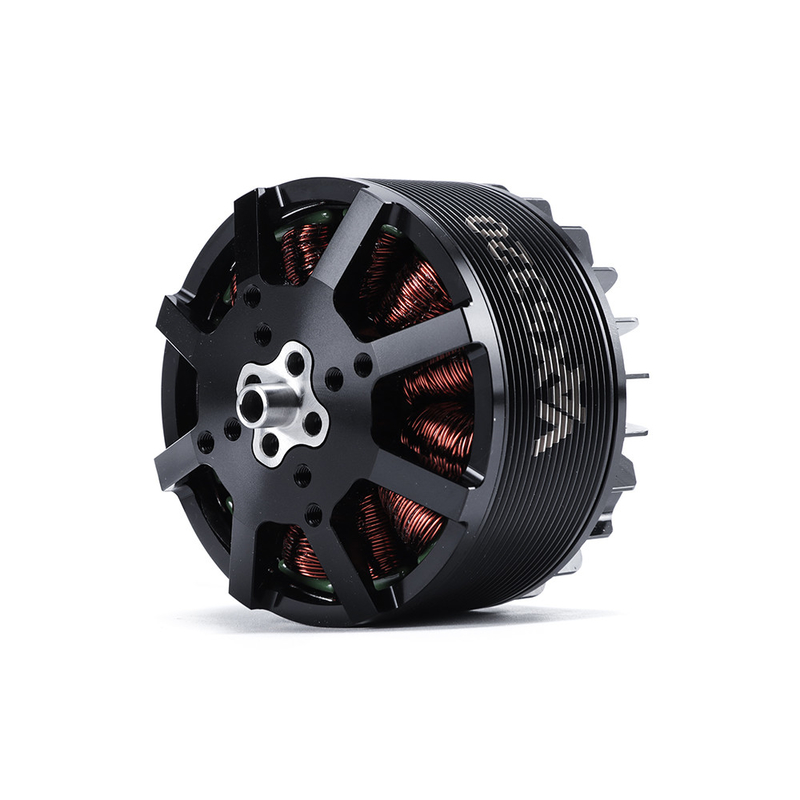

The VAX 5320 with thrust bearing is engineered for VTOL, AIRCRAFT, and XCLASS applications with a payload capacity of 8-10 kg and supports 12S voltage.
This improved model delivers enhanced reliability and stability for long-range flights while maintaining the excellent performance characteristics of previous generations. The motor features increased safety and extended service life to meet rigorous industrial requirements.
