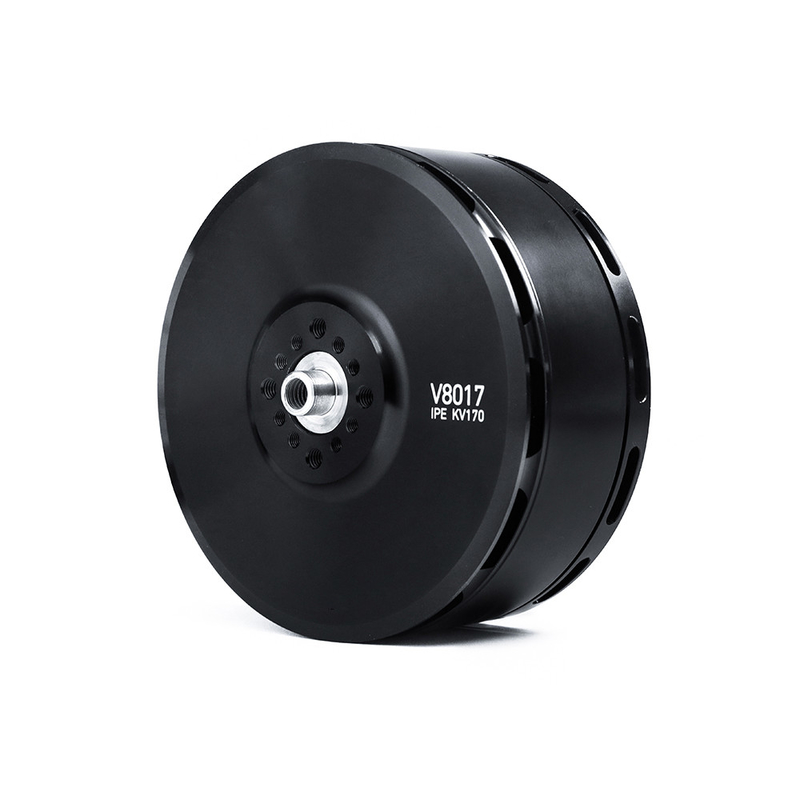

V8017 IPE V1.0 Brushless DC Motor Drone

Name: V8017 IPE V1.0 Brushless DC Motor Drone
Brand: Guangzhou Gesai Intelligent Electronic Technology Co., Ltd.
SKU: V8017 IPE V1.0 100KV
Price: 42.00 USD
Availability: InStock

Product Details

Place of Origin: Guangdong, China

Brand Name: GS

Model Number: V8017 IPE V1.0 100KV

Document: Product Brochure PDF

Payment & Shipping Terms

Price: Negotiable

Delivery Time: 6-8

Payment Terms: T/T

Supply Ability: 100

Get Best Price

Chat now

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                    Drone Brushless DC Motor, V8017  Brushless DC Motor Drone


Motor Model:	V8017 IPE W1.0	Motor Size:	D:88.5 X46.2 Mm
Propeller Mounting Holes:	D:20 M3x4，D:23 M4x4	Shaft Diameter:	IN: 12 Mm
Bearing:	6901ZZ*2	Cable Length:	1000 Mm 14# Awg(Black) Silicone
Rotor Balance:	<25 Mg	Motor Balance:	≤10 Mg
Motor Mounting Holes:	D:40 M4x4	Disruptive Test:	500 V

Motor Model:	V8017 IPE W1.0
Motor Size:	D:88.5 X46.2 Mm
Propeller Mounting Holes:	D:20 M3x4，D:23 M4x4
Shaft Diameter:	IN: 12 Mm
Bearing:	6901ZZ*2
Cable Length:	1000 Mm 14# Awg(Black) Silicone
Rotor Balance:	<25 Mg
Motor Balance:	≤10 Mg
Motor Mounting Holes:	D:40 M4x4
Disruptive Test:	500 V

V8017 IPE V1.0 Brushless DC Motor Drone

Product Specifications

Attribute	Value
Motor Model	V8017 IPE W1.0
Motor Size	D:88.5 x46.2 mm
Propeller Mounting Holes	D:20 M3x4，D:23 M4x4
Shaft Diameter	IN: 12 mm
Bearing	6901ZZ*2
Cable Length	1000 mm 14# Awg(Black) silicone
Rotor Balance	<25 mg
Motor Balance	≤10 mg
Motor Mounting Holes	D:40 M4x4
Disruptive test	500 V

Product Description

The V8107 motor is our most classic VTOL UAV motor. The MAD V8017 IPE stands out as one of the most efficient models in this series, widely used for high-end aerial photography, exploration, archaeology, remote sensing, and surveying applications. Designed for harsh conditions with oversized durable bearings for extended motor life.

RPMNV: 170KV

Nominal Voltage: 12S lipo battery

No Load Current: 3.9A/ 30V

Internal resistance: 17.5mΩ

Motor Weight: 680 g

Product Boxed Weight: 1008g (150 x150 x 65 mm)

Maximum Current: 132.4 A

Maximum Power: 6325 W

Maximum thrust: 21.4 kg

Maximum Torque: 7.33 Nm

Recommended ESC: AMPX 200A (5-14S)

Recommended Propellers: 27X8.1 28X8.4

Our Services

1 Year Warranty included for worry-free purchase
14-day return policy for unsatisfied customers (contact required before return)
3-month replacement policy for defective items (no extra charge)
Post-3-month replacement available with customer covering return shipping

Frequently Asked Questions

Q1: Do you support OEM/ODM?

A1: Yes. We can print your logo on the product.

Q2: About samples.

A2: Samples ready in 7 days (10-20 days for OEM/ODM). Sample fee and shipping charged.

Q3: What is the delivery time?

A3: Regular orders ship in 15 days, OEM/ODM in 25-45 days. Delays communicated in advance.

Q4: What is the minimum order quantity?

A4: No MOQ - wholesale orders accepted from 1 piece, including OEM/ODM.

Q5: What are your payment terms?

A5: L/C or 100% TT payment accepted.

Q6: Can you reduce the shipping cost?

A6: We always select the most economical shipping option. Customers may arrange their own shipping if preferred.

Q7: Return policy.

A7: Replacement requests must be made within 7 days of receipt. Items must be in original condition with customer covering return shipping.

RPMNV: 9 KV

Nominal Voltage: 354~400V

No Load Current: 1.44A 140V

Internal resistance: 40.5mΩ

Motor Weight: 12.7 kg

Product Boxed Weight: 14 kg

Maximum Current: 150.8 A

Maximum Power: 55.6 KW

Maximum thrust: 200.1 kg

Maximum Torque: 178.9 Nm

Recommended ESC: SineSic Pro 160A 30KW(150V~435V)

Recommended Propellers: 72x31
