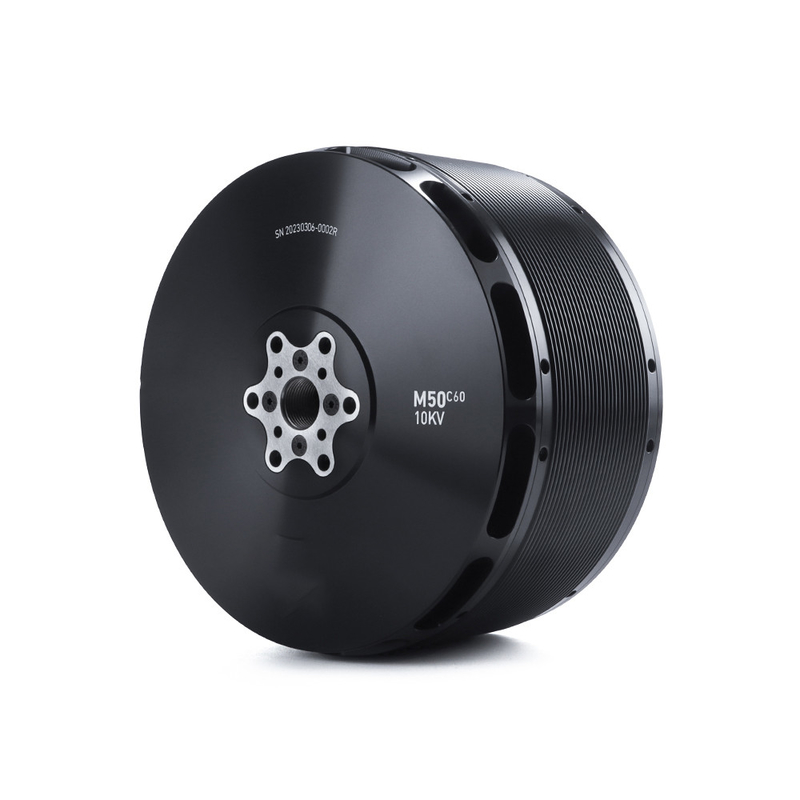

M50C60 PRO IPE Brushless DC Motor Manned Drone

Name: M50C60 PRO IPE Brushless DC Motor Manned Drone
Brand: Guangzhou Gesai Intelligent Electronic Technology Co., Ltd.
SKU: M50C60 PRO IPE 10KV
Price: 42.00 USD
Availability: InStock

Product Details

Place of Origin: Guangdong, China

Brand Name: GS

Model Number: M50C60 PRO IPE 10KV

Document: Product Brochure PDF

Payment & Shipping Terms

Price: Negotiable

Delivery Time: 6-8

Payment Terms: T/T

Supply Ability: 100

Get Best Price

Chat now

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                    M50C60 PRO IPE Brushless DC Motor, Manned Drone DC Motor


Motor Model:	M40C30 IPE V2.1	Motor Size:	D:196x120.5 Mm
Propeller Mounting Holes:	D:50 M6x6	Shaft Diameter:	IN: 25 Mm
Bearing:	6805ZZ*2/6818ZZ	Cable Length:	200 Mm (extended Enameled Wires)
Rotor Balance:	≤20 Mg	Motor Balance:	≤30 Mg
Motor Mounting Holes:	D:80 M6x6	Disruptive Test:	500 V

Motor Model:	M40C30 IPE V2.1
Motor Size:	D:196x120.5 Mm
Propeller Mounting Holes:	D:50 M6x6
Shaft Diameter:	IN: 25 Mm
Bearing:	6805ZZ*2/6818ZZ
Cable Length:	200 Mm (extended Enameled Wires)
Rotor Balance:	≤20 Mg
Motor Balance:	≤30 Mg
Motor Mounting Holes:	D:80 M6x6
Disruptive Test:	500 V

M50C60 PRO IPE Brushless DC Motor Manned Drone

Product Specifications

Attribute	Value
Motor Model	M40C30 IPE V2.1
Motor Size	D:196x120.5 mm
Propeller Mounting Holes	D:50 M6x6
Shaft Diameter	IN: 25 mm
Bearing	6805ZZ*2/6818ZZ
Cable Length	200 mm (extended Enameled wires)
Rotor Balance	≤20 mg
Motor Balance	≤30 mg
Motor Mounting Holes	D:80 M6x6
Disruptive test	500 V

Product Description

The M50C60 PRO IPE Brushless DC Motor delivers a power output of 32 kW (43 hp), designed specifically for manned drone applications.

Recommended ESC and propeller: HB60-63X22, HB60-64X22.

Technical Specifications

RPMNV: 10 KV

Nominal Voltage: 354~400V

No Load Current: 1.5A/30V

Internal resistance: 65mΩ

Motor Weight: 7200 g

Product Boxed Weight: 8750g (330x265x135 mm)

Maximum Current: 70.7 A

Maximum Power: 27673W

Maximum thrust: 123 kg

Maximum Torque: 83.4 Nm

Recommended ESC: SineSic Pro 80A 16KW(150V~435V)

Recommended Propellers: 63x22, 64X20
