Product Details
Place of Origin: Guangdong, China
Brand Name: GS
Model Number: M13 EEE 90KV
Document: Product Brochure PDF
Payment & Shipping Terms
Price: Negotiable
Delivery Time: 6-8
Payment Terms: T/T
Supply Ability: 100
|
Motor Model:
|
M13 EEE V1.0
|
Motor Size:
|
D:116 X 35 Mm
|
Propeller Mounting Holes:
|
D:20 M3x4, D:23 M4x4
|
Shaft Diameter:
|
IN: 15 Mm
|
Bearing:
|
6802ZZ*2
|
Cable Length:
|
150 Mm(extended Enameled Wires)
|
Rotor Balance:
|
≤10 Mg
|
Motor Balance:
|
≤20 Mg
|
Motor Mounting Holes:
|
D:50 M5x4
|
Disruptive Test:
|
500 V
|
|
Motor Model:
|
M13 EEE V1.0
|
|
Motor Size:
|
D:116 X 35 Mm
|
|
Propeller Mounting Holes:
|
D:20 M3x4, D:23 M4x4
|
|
Shaft Diameter:
|
IN: 15 Mm
|
|
Bearing:
|
6802ZZ*2
|
|
Cable Length:
|
150 Mm(extended Enameled Wires)
|
|
Rotor Balance:
|
≤10 Mg
|
|
Motor Balance:
|
≤20 Mg
|
|
Motor Mounting Holes:
|
D:50 M5x4
|
|
Disruptive Test:
|
500 V
|
| Attribute | Value |
|---|---|
| Motor Model | M13 EEE V1.0 |
| Motor Size | D:116 x 35 mm |
| Propeller Mounting Holes | D:20 M3x4, D:23 M4x4 |
| Shaft Diameter | IN: 15 mm |
| Bearing | 6802ZZ*2 |
| Cable Length | 150 mm(extended Enameled wires) |
| Rotor Balance | ≤10 mg |
| Motor Balance | ≤20 mg |
| Motor Mounting Holes | D:50 M5x4 |
| Disruptive test | 500 V |

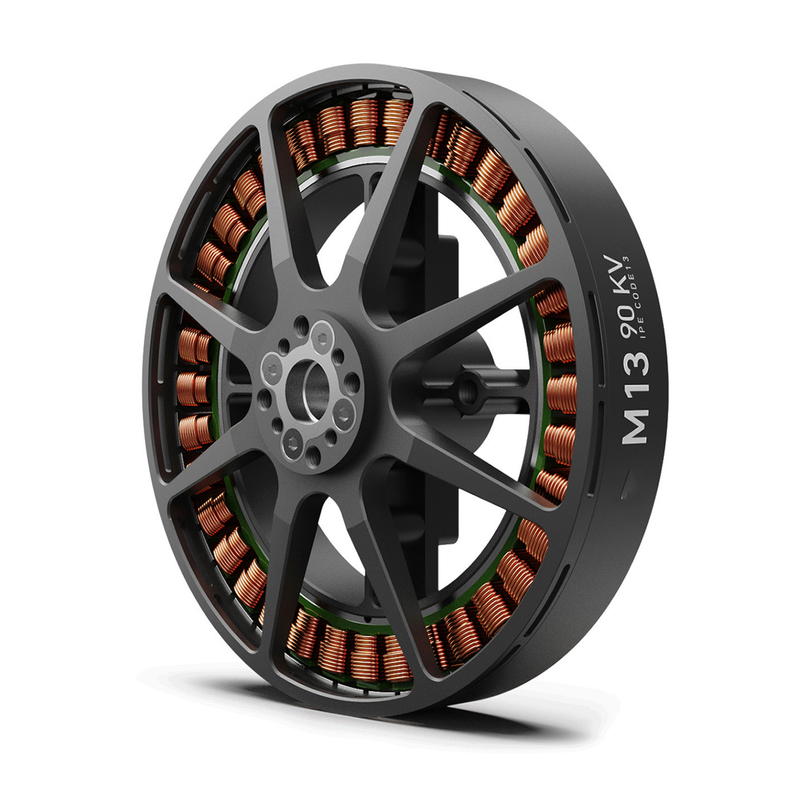

M13 EEE 90KV Brushless DC Motor Drone
M Series motors are industrial-grade propulsion systems designed for large multi-rotor applications including electric paragliders, agricultural tethered VTOLs, and UAVs. Ideal for professional applications such as aerial photography, mapping, agricultural spraying, and surveying.
| RPMNV | 90 KV | Nominal Voltage | 12s lipo battery |
| No Load Current | 2.0A/20V | Internal resistance | 35mΩ |
| Motor Weight | 615 g | Product Boxed Weight | 9658(200x150 x70 mm) |
| Maximum Current | 88 A | Maximum Power | 4189W |
| Maximum thrust | 20.5 kg | Maximum Torque | 8.8 Nm |
| Recommended EsC | MAD AMPX 120A (5-14S) | Recommended Propellers | 36x11.5 |
