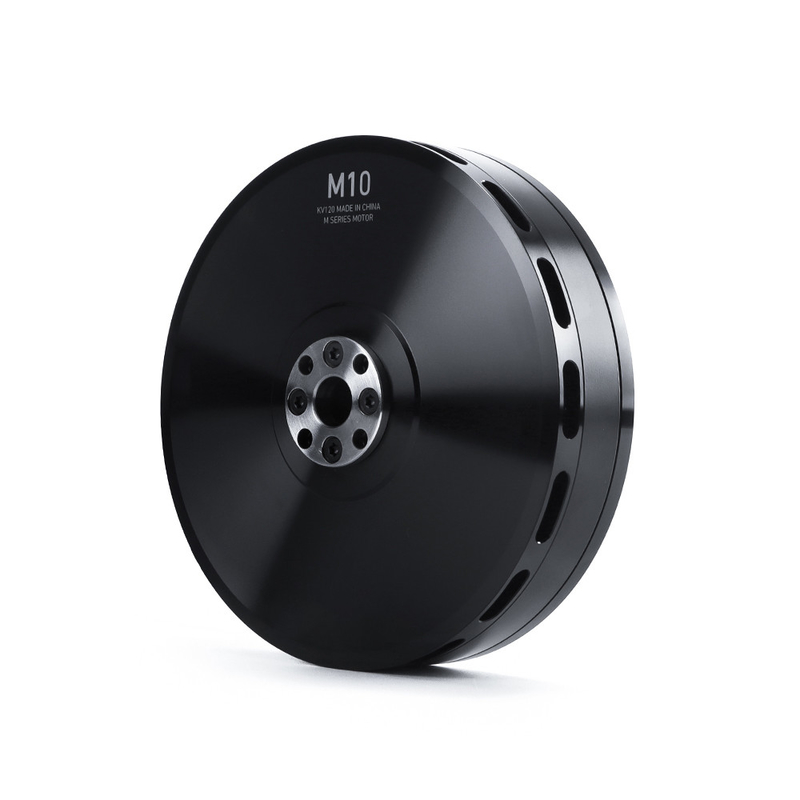

M10 IPE V2.0 Angular Contact Ball Bearing Brushless DC Motor Drone

Product Details

Place of Origin: Guangdong, China

Brand Name: GS

Model Number: M10 IPE V2.0 90KV 100KV 120KV 150KV 180KV

Document: Product Brochure PDF

Payment & Shipping Terms

Price: Negotiable

Delivery Time: 6-8

Payment Terms: T/T

Supply Ability: 100

Chat now
Highlight:

Drone Brushless DC Motor

,

M10 IPE V2.0 Brushless DC Motor

Motor Model:
M1O IPE V2.0
Motor Size:
D:118 X 34 Mm
Propeller Mounting Holes:
D:23 M3x4
Shaft Diameter:
IN: 15 Mm
Bearing:
6902ZZ/7902CTYNSULP4
Cable Length:
150 Mm(extended Enameled Wires)
Rotor Balance:
≤10 Mg
Motor Balance:
≤20 Mg
Motor Mounting Holes:
D:50 M4x4. D:76 M4x4
Disruptive Test:
500 V
Motor Model:
M1O IPE V2.0
Motor Size:
D:118 X 34 Mm
Propeller Mounting Holes:
D:23 M3x4
Shaft Diameter:
IN: 15 Mm
Bearing:
6902ZZ/7902CTYNSULP4
Cable Length:
150 Mm(extended Enameled Wires)
Rotor Balance:
≤10 Mg
Motor Balance:
≤20 Mg
Motor Mounting Holes:
D:50 M4x4. D:76 M4x4
Disruptive Test:
500 V
M10 IPE V2.0 Angular Contact Ball Bearing Brushless DC Motor Drone
M10 IPE V2.0 Angular Contact Ball Bearing Brushless DC Motor Drone
Product Specifications
Attribute Value
Motor Model M1O IPE V2.0
Motor Size D:118 x 34 mm
Propeller Mounting Holes D:23 M3x4
Shaft Diameter IN: 15 mm
Bearing 6902ZZ/7902CTYNSULP4
Cable Length 150 mm(extended Enameled wires)
Rotor Balance ≤10 mg
Motor Balance ≤20 mg
Motor Mounting Holes D:50 M4x4. D:76 M4x4
Disruptive test 500 V
Product Description

The M Series motors are flagship propulsion systems designed specifically for large multi-rotor electric paragliders, agricultural tethered VTOLs, and professional UAV applications. These industrial-grade motors are ideal for aerial photography, mapping, agricultural spraying, surveying, and other demanding applications requiring reliable, long-duration operation.

Key Features of Angular Contact Ball Bearings
  • Superior Load Handling: Engineered to withstand high radial and axial loads, ensuring optimal motor performance across diverse flight conditions.
  • Extended Service Life: Advanced bearing design minimizes wear and significantly increases motor operational lifespan.
  • Precision Operation: Reduced bearing play enhances motor accuracy, resulting in smoother, more stable drone performance.
M10 IPE V2.0 Angular Contact Ball Bearing Brushless DC Motor Drone 0 M10 IPE V2.0 Angular Contact Ball Bearing Brushless DC Motor Drone 1 M10 IPE V2.0 Angular Contact Ball Bearing Brushless DC Motor Drone 2 M10 IPE V2.0 Angular Contact Ball Bearing Brushless DC Motor Drone 3 M10 IPE V2.0 Angular Contact Ball Bearing Brushless DC Motor Drone 4
Our Services
  • 1 Year Warranty for worry-free purchasing
  • 14-day return policy for unsatisfied customers (contact required before return)
  • 3-month free replacement for defective items
  • Post-3-month replacement available (customer responsible for return shipping)
M10 IPE V2.0 Angular Contact Ball Bearing Brushless DC Motor Drone 5
Frequently Asked Questions
Q1: Do you support OEM/ODM?

A1: Yes. We can print your logo on the product.

Q2: About samples.

A2: Samples available within 7 days (10-20 days for OEM/ODM). Sample fee and shipping charges apply.

Q3: What is the delivery time?

A3: Regular orders ship within 15 days; OEM/ODM orders within 25-45 days (quantity dependent). We notify customers of any delays.

Q4: What is the minimum order quantity?

A4: No MOQ - wholesale orders accepted from 1 piece, including OEM/ODM.

Q5: What are your payment terms?

A5: L/C or 100% TT payment accepted.

Q6: Can you reduce the shipping cost?

A6: We always select the most economical and secure shipping option. Customers may arrange their own shipping if preferred.

Q7: Return policy.

A7: Replacement requests must be made within 7 days of receipt. Items must be in original condition, with return shipping at customer's expense.
