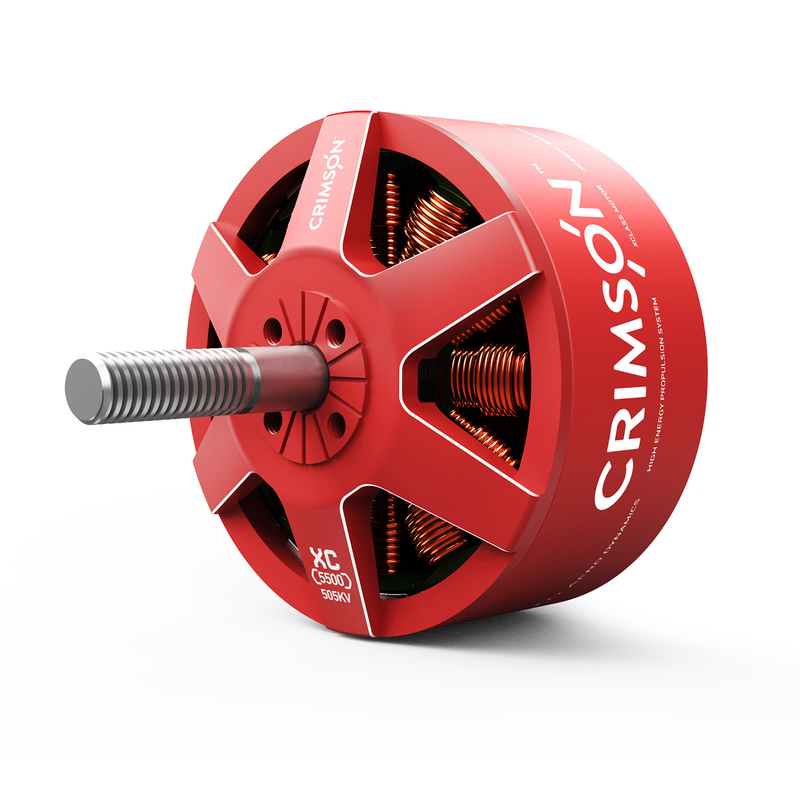

FPV POLAR XC5500 Brushless DC Motor First-Person View

Product Details

Place of Origin: Guangdong, China

Brand Name: GS

Model Number: XC5500 505KV 635KV

Document: Product Brochure PDF

Payment & Shipping Terms

Price: Negotiable

Delivery Time: 6-8

Payment Terms: T/T

Supply Ability: 100

Chat now
Highlight:

POLAR XC5500 Brushless DC Motor

,

FPV Brushless DC Motor

,

First-Person View Brushless DC Motor

Motor Model:
Crimson Xc5500 V1.0
Motor Size:
D:50x67.9 Mm
Propeller Mounting Holes:
D:12 M3x4/ M6 Nut
Shaft Diameter:
IN: 6 Mm
Bearing:
686ZZ*2/696ZZ
Rotor Balance:
≤5mg
Motor Balance:
≤10 Mg
Motor Mounting Holes:
D:25 M3x4, D:30 M4x4
Cable Length:
750 Mm 14# Awg(Black) Silicone
Motor Model:
Crimson Xc5500 V1.0
Motor Size:
D:50x67.9 Mm
Propeller Mounting Holes:
D:12 M3x4/ M6 Nut
Shaft Diameter:
IN: 6 Mm
Bearing:
686ZZ*2/696ZZ
Rotor Balance:
≤5mg
Motor Balance:
≤10 Mg
Motor Mounting Holes:
D:25 M3x4, D:30 M4x4
Cable Length:
750 Mm 14# Awg(Black) Silicone
FPV POLAR XC5500 Brushless DC Motor First-Person View
FPV POLAR XC5500 Brushless DC Motor First-Person View
Product Specifications
Attribute Value
Motor Model Crimson xc5500 V1.0
Motor Size D:50x67.9 mm
Propeller Mounting Holes D:12 M3x4/ M6 Nut
Shaft Diameter IN: 6 mm
Bearing 686ZZ*2/696ZZ
Rotor Balance ≤5mg
Motor Balance ≤10 mg
Motor Mounting Holes D:25 M3x4, D:30 M4x4
Cable Length 750 mm 14# Awg(Black) silicone
Product Description

The XC5500 and XC5000 motors are engineered for high-performance X-class drones, including 800-1200mm multi-rotor aircraft, VTOL aircraft, and agricultural copters with 2-3kg load capacity per rotor.

  • Weighs 324g with 3 durable bearings
  • Maximum thrust of 6.1kg
  • Enhanced power output: Delivers superior acceleration and performance for freestyle flight
  • High efficiency: Optimized energy conversion extends flight time
  • Durable construction: Brushless design withstands intensive FPV use
  • Precise throttle control: Excellent speed and power management for aerial maneuvers
  • Cooling optimization: Advanced thermal design prevents overheating
  • Compact and lightweight: Enhances drone agility and control
FPV POLAR XC5500 Brushless DC Motor First-Person View 0 FPV POLAR XC5500 Brushless DC Motor First-Person View 1 FPV POLAR XC5500 Brushless DC Motor First-Person View 2 FPV POLAR XC5500 Brushless DC Motor First-Person View 3
