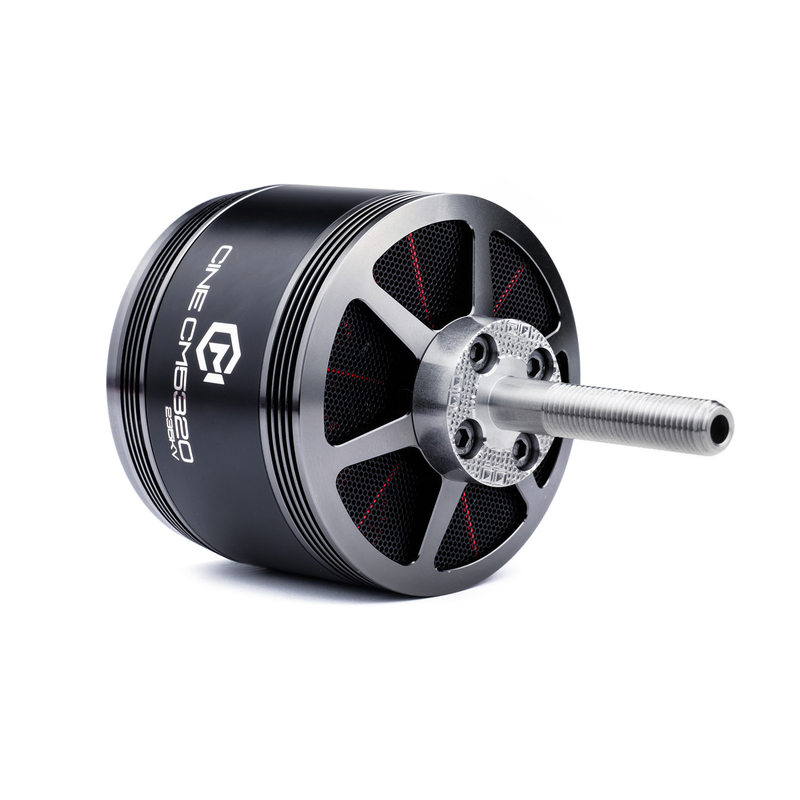

Name: FPV CM 5320 Brushless DC Motor First-Person View
Brand: Guangzhou Gesai Intelligent Electronic Technology Co., Ltd.
SKU: CM 5320 235KV
Price: 42.00 USD
Availability: InStock

Product Details

Place of Origin: Guangdong, China

Brand Name: GS

Model Number: CM 5320 235KV

Document: Product Brochure PDF

Payment & Shipping Terms

Price: Negotiable

Get Best Price

Chat now

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                            FPV CM 5320 Brushless DC Motor, First-Person View Brushless DC Motor


Motor Model:	CINE CM5320 V1.0	Motor Size:	D:61.1 X 56.5 Mm
Propeller Mounting Holes:	M8 Nut D:12 M3x2	Shaft Diameter:	IN: 8 Mm
Bearing:	688 *4	Number Of Pole Pairs:	7
Varnished Wire Degree:	180°C	Motor Balance:	150°C
Cable Length:	750 Mm 14# Awg Silicone	Motor Mounting Holes:	D:44 M4x4, D:30 M4x4
Disruptive Test:	500 V

Motor Model:	CINE CM5320 V1.0
Motor Size:	D:61.1 X 56.5 Mm
Propeller Mounting Holes:	M8 Nut D:12 M3x2
Shaft Diameter:	IN: 8 Mm
Bearing:	688 *4
Number Of Pole Pairs:	7
Varnished Wire Degree:	180°C
Motor Balance:	150°C
Cable Length:	750 Mm 14# Awg Silicone
Motor Mounting Holes:	D:44 M4x4, D:30 M4x4
Disruptive Test:	500 V

FPV CM 5320 Brushless DC Motor First-Person View

Product Specifications

Attribute	Value
Motor Model	CINE CM5320 V1.0
Motor Size	D:61.1 x 56.5 mm
Propeller Mounting Holes	M8 Nut D:12 M3x2
Shaft Diameter	IN: 8 mm
Bearing	688 *4
Number of pole pairs	7
Varnished wire Degree	180°C
Motor Balance	150°C
Cable Length	750 mm 14# Awg silicone
Motor Mounting Holes	D:44 M4x4, D:30 M4x4
Disruptive test	500 V

Product Description

The CM motor is optimized for X8 coaxial twin propeller installation with enhanced features:

Two ultra-thin stainless steel dust filters inside the stator
Split exhaust blade integrated inside the rotor

RPMNV

235KV

Nominal Voltage

12s lipo battery

No Load Current

2.84A/20V

Internal resistance

37.5mΩ

Motor Weight

481 g

Product Boxed Weight

777g (118 x 118 x107 mm)

Maximum Current

69.7 A

Maximum Power

3198W

Maximum thrust

9.1 kg

Maximum Torque

2.47 Nm

Recommended Esc

MAD AMPX 60A(5-14S)80A(5-14S)

Recommended Propellers

15x7x3 16x8x3 17x8x3

Our Services

1 Year Warranty included for worry-free purchase
14-day return policy for unsatisfied customers (contact required before return)
3-month defective item replacement with no extra charge
Post-3-month defective item replacement available (customer covers return shipping)

Frequently Asked Questions

Q: Do you support OEM/ODM?

A: Yes. We can print your logo on the product.

Q: About samples.

A: Samples ready in 7 days (10-20 days for OEM/ODM). Sample fee and shipping charged.

Q: What is the delivery time?

A: Regular orders ship in 15 days, OEM/ODM in 25-45 days (quantity dependent). Delays communicated in advance.

Q: What is the minimum order quantity?

A: No MOQ for wholesale (1 piece accepted), including OEM/ODM.

Q: What are your payment terms?

A: L/C.TT100%.

Q: Can you reduce the shipping cost?

A: We always select the most economical and secure shipping option. Customers may choose alternative shipping if preferred.

Q: Return policy.

A: Replacement requests must be made within 7 days of receipt. Items must be in original condition with customer covering return shipping.
