Universal Joint 30x Optical Zoom UAV Drone Camera With 3000 Meter Laser Ranging

Name: Universal Joint 30x Optical Zoom UAV Drone Camera With 3000 Meter Laser Ranging
Brand: Guangzhou Gesai Intelligent Electronic Technology Co., Ltd.
SKU: KIP30L30A
Price: 1,030.00 USD
Availability: InStock

Product Details

Brand Name: GS

Model Number: KIP30L30A

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: Negotiable

Delivery Time: 6~8

Payment Terms: T/T

Supply Ability: 100

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                30x optical zoom UAV drone camera, Universal Joint  UAV drone camera, Universal Joint   fpv drone camera


SENSOR Pixel:	2M Pixel	IP Grade:	IP54
Storage Capacity:	16-128G Card；calss10 Or Above ；fat32 Format	Image Output Interface:	RTSP 1080P30FPS Picture In Picture Output
Pitch Angle Action Range:	-45°～ +120°（The Bottom Is Positive）	Roll Angle Range Of Action:	-45°to +45°
Yaw Angle Operating Range:	360°Polar Rotation	Power Supply Voltage:	DC 12V-26.2V③
Power Consumption:	Dynamic 8W	Weight:	880±20g
Size:	162.41mm*173.83mm

SENSOR Pixel:	2M Pixel
IP Grade:	IP54
Storage Capacity:	16-128G Card；calss10 Or Above ；fat32 Format
Image Output Interface:	RTSP 1080P30FPS Picture In Picture Output
Pitch Angle Action Range:	-45°～ +120°（The Bottom Is Positive）
Roll Angle Range Of Action:	-45°to +45°
Yaw Angle Operating Range:	360°Polar Rotation
Power Supply Voltage:	DC 12V-26.2V③
Power Consumption:	Dynamic 8W
Weight:	880±20g
Size:	162.41mm*173.83mm

Universal Joint 30x Optical Zoom UAV Drone Camera With 3000 Meter Laser Ranging

Product Specifications

Attribute	Value
SENSOR pixel	2M pixel
IP Grade	IP54
Storage capacity	16-128G card；class10 or above；fat32 format
Image output interface	RTSP 1080P30FPS Picture in picture output
Pitch Angle action range	-45°～ +120°（The bottom is positive）
Roll Angle range of action	-45°to +45°
Yaw Angle operating range	360°Polar rotation
Power Supply Voltage	DC 12V-26.2V
Power Consumption	Dynamic 8W
Weight	880±20g
Size	162.41mm*173.83mm

Product Overview

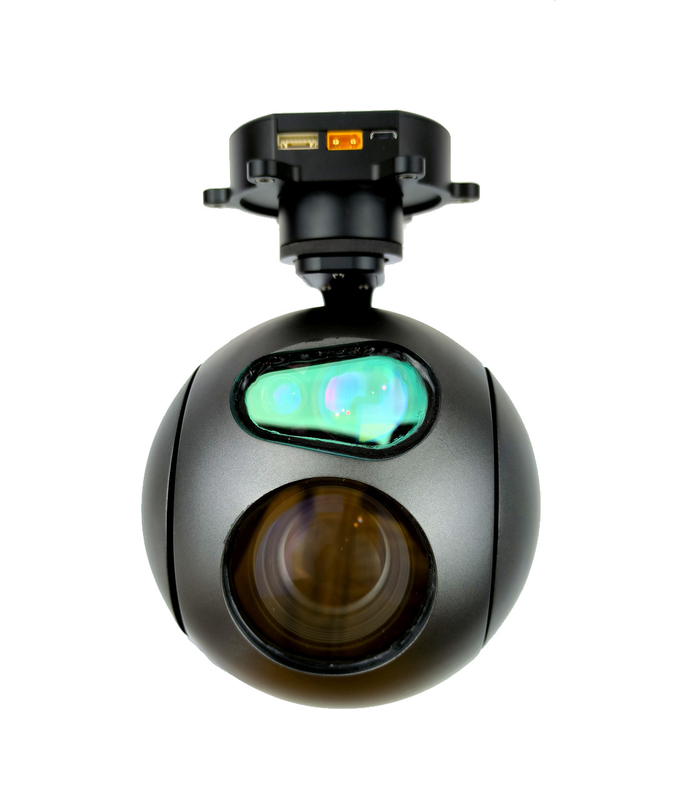

The KIP30L30A is an integrated 30x optical zoom camera with 9x digital zoom, 3000m laser range finder and professional 3-axis stabilization PTZ. Designed with compact size, light weight, high stabilization and low power consumption, this gimbal features a 2MP HD CMOS sensor and 3000m high precision LFR.

Key Features

270x Mixed Zoom

High precision with advanced collaborative control algorithm

3000m Laser Range Finder

Network and UART synchronization control

Fast Focusing

Quick and accurate focus adjustment

Double Recording

TF card storage with network operation capability

Applications

This integrated PTZ system is ideal for public security emergency response, fire rescue operations, power line inspection, military reconnaissance, and field search applications. The system combines optical zoom, video recording, photography, PTZ stabilization and control into one complete solution.

Operation Guide

Preparation and Inspection

Check the gimbal structure for normal condition, deformation or looseness
Clean lens with proper lens cloth if dirty
Verify mechanical installation after mounting
Confirm electrical connections are proper
Test imaging and functions on ground before flight

Safety Precautions

Avoid exceeding power supply voltage range or operating beyond normal environmental conditions.

Standard Operation

After powering on, control all pod functions through UAV handheld terminal buttons or joysticks.

Post-Operation Procedures

Disconnect power first, then separate pod from fuselage in static-free environment. Store in dry, ventilated area or protective case for long-term storage.

Our Services

1 Year Warranty - Buy with confidence

14-day return policy for replacements or refunds

3-month defective item replacement at no extra cost

Post-warranty replacement available (shipping fee applies)

Frequently Asked Questions

Q: Do you support OEM/ODM?

A: Yes. We can print your logo on the product.

Q: About samples

A: Samples ready in 7 days (10-20 days for OEM/ODM). Sample fee and shipping charged.

Q: What is the delivery time?

A: Regular orders ship within 15 days, OEM/ODM within 25-45 days depending on quantity.

Q: What is the minimum order quantity?

A: No MOQ - wholesale orders accepted from 1 piece, including OEM/ODM.

Q: What are your payment terms?

A: L/C or TT100% payment accepted.
