Product Details
Brand Name: GS
Model Number: KIY10S4K
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Delivery Time: 6~8
Payment Terms: T/T
Supply Ability: 100
|
Voltage:
|
DC12V-26.2V
|
Power Supply:
|
Dynamic 5W
|
Roll Angle:
|
-45°～ +45°
|
Pitch Angle:
|
-45°～ +120°
|
Yaw Angle:
|
-290°～ +290°
|
Pitch And Roll Jitter Angle:
|
±0.02°
|
Horizontal Jitter Angle:
|
±0.03°
|
One-Click Restore:
|
One-click Restore To The Initial Position
|
Control Way:
|
IP,SBUS,UART Control (Optional With PWM Control)
|
Device Size:
|
φ148mm H:132mm
|
Work Condition:
|
-10℃ To +55℃ / 20% To 80% RH
|
Storage Condition:
|
-20℃ To +60℃ / 20% To 95% RH
|
Mainly Usage:
|
UAV Aerial Photography
|
Weight (Not Including Dampers):
|
360±10g
|
|
Voltage:
|
DC12V-26.2V
|
|
Power Supply:
|
Dynamic 5W
|
|
Roll Angle:
|
-45°～ +45°
|
|
Pitch Angle:
|
-45°～ +120°
|
|
Yaw Angle:
|
-290°～ +290°
|
|
Pitch And Roll Jitter Angle:
|
±0.02°
|
|
Horizontal Jitter Angle:
|
±0.03°
|
|
One-Click Restore:
|
One-click Restore To The Initial Position
|
|
Control Way:
|
IP,SBUS,UART Control (Optional With PWM Control)
|
|
Device Size:
|
φ148mm H:132mm
|
|
Work Condition:
|
-10℃ To +55℃ / 20% To 80% RH
|
|
Storage Condition:
|
-20℃ To +60℃ / 20% To 95% RH
|
|
Mainly Usage:
|
UAV Aerial Photography
|
|
Weight (Not Including Dampers):
|
360±10g
|
| Attribute | Value |
|---|---|
| Voltage | DC12V-26.2V |
| Power Supply | Dynamic 5W |
| Roll Angle | -45°～ +45° |
| Pitch Angle | -45°～ +120° |
| Yaw Angle | -290°～ +290° |
| Pitch and Roll Jitter Angle | ±0.02° |
| Horizontal Jitter Angle | ±0.03° |
| One-Click Restore | One-click restore to the initial position |
| Control Way | IP,SBUS,UART control (Optional with PWM control) |
| Device Size | φ148mm H:132mm |
| Work Condition | -10℃ to +55℃ / 20% to 80% RH |
| Storage Condition | -20℃ to +60℃ / 20% to 95% RH |
| Mainly usage | UAV aerial photography |
| Weight (Not including dampers) | 360±10g |

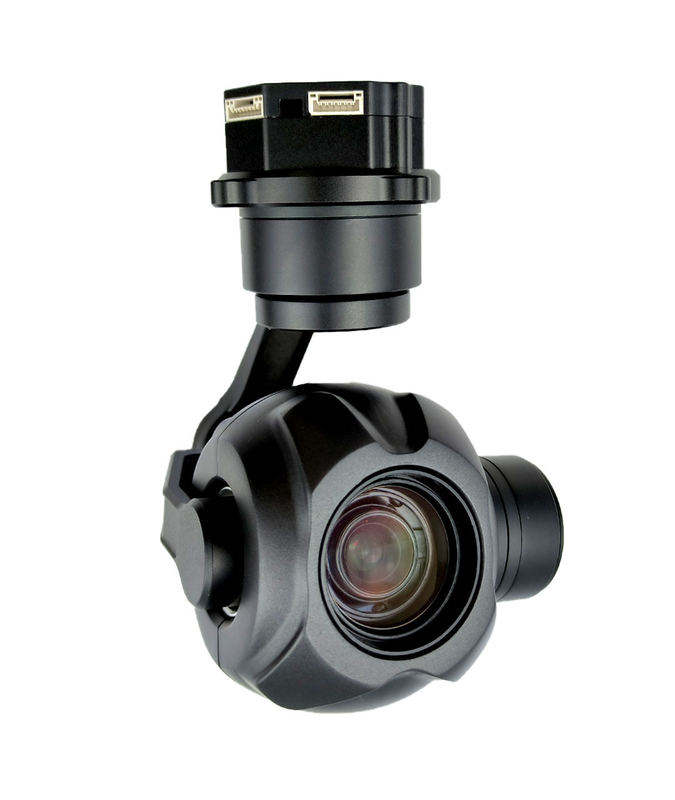

The KIY10S4K is a compact single EO gimbal system integrating a 4K resolution 70x mixed zoom camera with a high-precision 3-axis stabilizing PTZ. Featuring network IP output and control, this system delivers exceptional performance for professional aerial imaging applications.
