Product Details
Brand Name: GS
Model Number: KHY10S90
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Delivery Time: 6~8
Payment Terms: T/T
Supply Ability: 100
|
CMOS SENSOR Pixel:
|
2 Mega Pixels
|
Focal Length:
|
5.15±5%~47.38±5%mm
|
Zoom Method:
|
Electric Zoom And Continuously Adjustable
|
Images:
|
Jpeg Format; Multiple Pixels For Selection
|
Video:
|
H.264, H.265 Format; 1080P Video Stream
|
Storage Capacity:
|
32G-128G TF Card (FAT32 Format)
|
Image Output Interface:
|
Network H.264 Code Stream Output
|
Roll Angle:
|
- 45 ° To +45 °
|
Pitch Angle:
|
- 45 ° To +120 °
|
Yaw Angle:
|
- 280 ° To +280 °
|
Pitch And Roll Direction:
|
± 0.02 ° Horizontal Direction: ± 0.03 °
|
Power Consumption:
|
Dynamic 5w
|
Weight:
|
396± 10 G
|
|
CMOS SENSOR Pixel:
|
2 Mega Pixels
|
|
Focal Length:
|
5.15±5%~47.38±5%mm
|
|
Zoom Method:
|
Electric Zoom And Continuously Adjustable
|
|
Images:
|
Jpeg Format; Multiple Pixels For Selection
|
|
Video:
|
H.264, H.265 Format; 1080P Video Stream
|
|
Storage Capacity:
|
32G-128G TF Card (FAT32 Format)
|
|
Image Output Interface:
|
Network H.264 Code Stream Output
|
|
Roll Angle:
|
- 45 ° To +45 °
|
|
Pitch Angle:
|
- 45 ° To +120 °
|
|
Yaw Angle:
|
- 280 ° To +280 °
|
|
Pitch And Roll Direction:
|
± 0.02 ° Horizontal Direction: ± 0.03 °
|
|
Power Consumption:
|
Dynamic 5w
|
|
Weight:
|
396± 10 G
|
| Attribute | Value |
|---|---|
| CMOS SENSOR Pixel | 2 Mega pixels |
| Focal length | 5.15±5%~47.38±5%mm |
| Zoom method | Electric zoom and continuously adjustable |
| Images | JPEG format; Multiple pixels for selection |
| Video | H.264, H.265 format; 1080P video stream |
| Storage capacity | 32G-128G TF card (FAT32 format) |
| Image output interface | Network H.264 code stream output |
| Roll angle | -45° to +45° |
| Pitch angle | -45° to +120° |
| Yaw angle | -280° to +280° |
| Pitch and roll direction | ±0.02° Horizontal direction: ±0.03° |
| Power consumption | Dynamic 5W |
| Weight | 396±10g |

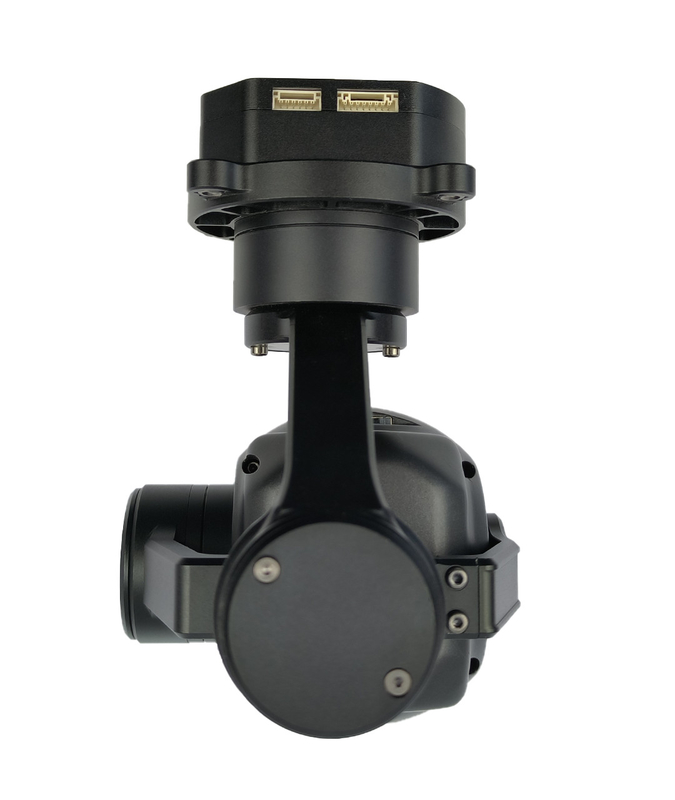

The KHY10S90 is a single EO drone gimbal system integrating a 10x optical zoom camera with IRCUT function and high-precision professional 3-axis stabilized PTZ. It features:
After normal power-on, control operations are performed via mouse or touch screen through the UAV ground station software.
Record any issues encountered during use and save corresponding image data.
