X500 V2 Frame Kit Professional Flight Controller Lightweight Easy To Assemble

Product Details

Brand Name: GS

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: Negotiable

Delivery Time: 6~8

Payment Terms: T/T

Supply Ability: 100

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                Flight Controller Easy To Assemble, Lightweight professional flight controller, X500 V2  professional flight controller


Wheelbase:	500mm	Motor Mount Pattern:	16x16mm
Frame Body:	144x144mm, 2mm Thick	Landing Gear Height:	215mm
Space Between Top And Bottom Plates:	28mm	Weight:	610g
Flight Time:	~18 Minutes Hover With No Additional Payload. Tested With 5000mAh Battery.	Payload:	1500g (without Battery, 70% Throttle)
Battery Recommendation:	4S 3000-5000mAh 20C+ With XT60 Lipo Battery (Not Included)

Wheelbase:	500mm
Motor Mount Pattern:	16x16mm
Frame Body:	144x144mm, 2mm Thick
Landing Gear Height:	215mm
Space Between Top And Bottom Plates:	28mm
Weight:	610g
Flight Time:	~18 Minutes Hover With No Additional Payload. Tested With 5000mAh Battery.
Payload:	1500g (without Battery, 70% Throttle)
Battery Recommendation:	4S 3000-5000mAh 20C+ With XT60 Lipo Battery (Not Included)

X500 V2 Frame Kit Professional Flight Controller Lightweight Easy To Assemble

Product Specifications

Attribute	Value
Wheelbase	500mm
Motor mount pattern	16x16mm
Frame Body	144x144mm, 2mm thick
Landing gear height	215mm
Space between top and bottom plates	28mm
Weight	610g
Flight time	~18 minutes hover with no additional payload. Tested with 5000mAh Battery.
Payload	1500g (without Battery, 70% Throttle)
Battery Recommendation	4S 3000-5000mAh 20C+ with XT60 Lipo Battery (Not Included)

Product Description

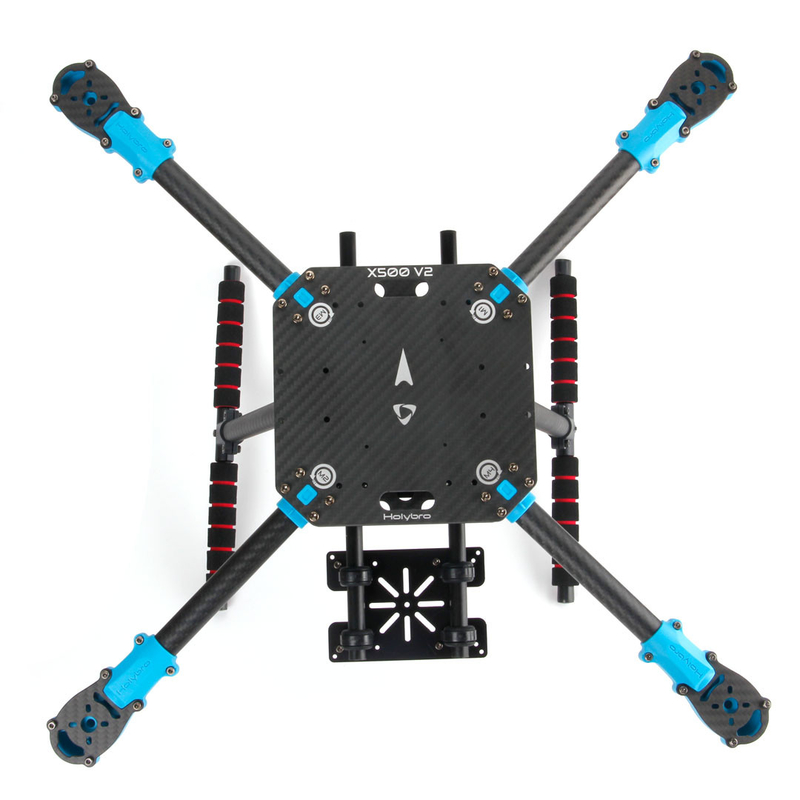

The X500 V2 ARF (Almost Ready-to-Fly) Kit is an affordable, lightweight, and robust carbon fiber professional drone kit that is easy to assemble (less than 15 minutes). It comes with the X500 V2 Frame Kit and motors, ESCs, power distribution boards and propellers preinstalled. It is perfectly compatible with various flight controllers such as the Holybro Pixhawk series, Durandal, Pix32 V5, etc.

Frame Features

X500 V2 Frame: Made from lightweight and durable carbon fiber or glass fiber materials designed to support hexacopter components while maintaining optimal flight performance.

Arms and Center Plates

Hexacopter Arms: Six identical arms included for easy assembly and balance.
Center Plates: Includes top and bottom plates that connect arms and provide mounting platforms for flight controller, ESCs, batteries, and other electronics.
