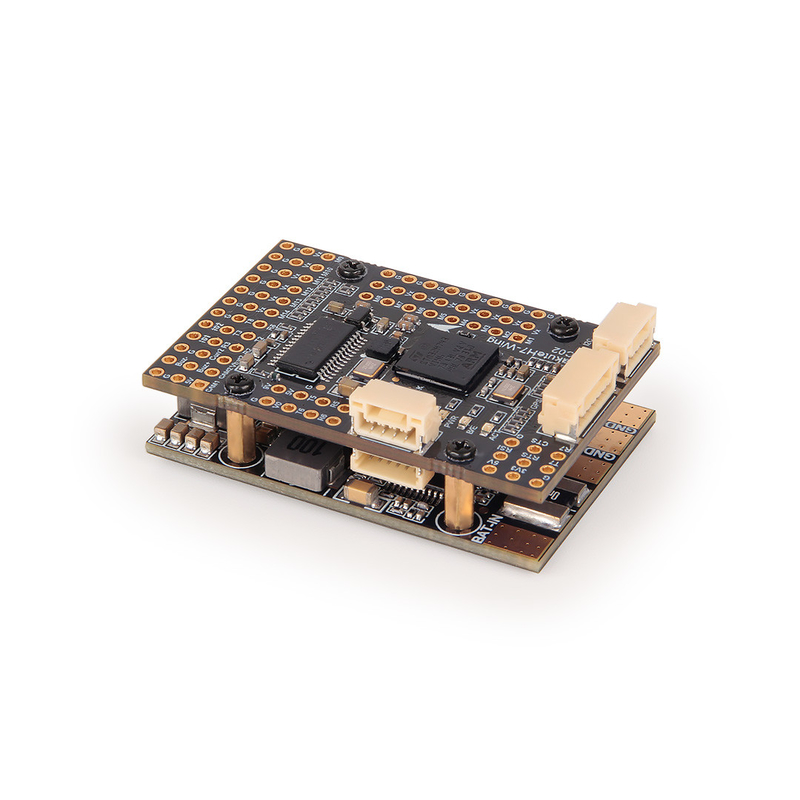

Durable Kakute H743-Wing Flight Controller FPV High Precision

The Kakute H743-Wing is a specialized flight controller board designed by Holybro for fixed-wing aircraft, specifically optimized for FPV (First-Person View) wings and planes.

The Holybro Kakute H743 Wing is a full-featured flight controller with a layout specifically designed for fixed wing & VTOL applications. It features:

• STM32 H743 Processor running at 480 MHz
• CAN Bus support
• Dual camera support & switch
• ON/OFF Pit Switch
• 5V, 6V/8V, 9V/12 BEC options
• Plug-and-play GPS, CAN, I2C ports

• MCU: STM32H743, 480 MHz, 1MB RAM, 2MB Flash
• IMU: ICM-42688P (SPI3)
• Baro: BMP280 (I2C4)
• OSD: AT7456E (SPI2)
• Blackbox: MicroSD card slot on SDMMC2
• Connectivity: 7x Uarts (1,2,3,5,6,7,8) with built-in inversion
• Outputs: 14x PWM outputs, 1x CAN, 5x ADC (Bat1/Curr1, Bat2/Curr2 and RSSI)
• I2C: 3x I2C (I2C1 and I2C2 for external devices, I2C4 for onboard sensors)
• LED Indicators: 3x LEDs for FC STATUS (Blue, Red) and 3.3V indicator (Green)
• USB: USB/DFU Key Extender with USB Type-C
• Camera: Dual Camera Inputs switch
• Power: 5V/9V(12V) for Camera/VTX power switch
• Current Sense: High-precision (90A continuous, 220A peak)
• Battery Voltage Sensor: 5K:25.5K (Scale 1800 in INAV, BATT_VOLT_MULT 18.18 in ArduPilot)
• Power Consumption: Static power 160mA@5V
