Kakute H7 V1.3 Stacks Rc Plane Flight Controller High Performance

Product Details

Brand Name: GS

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: Negotiable

Delivery Time: 6~8

Payment Terms: T/T

Supply Ability: 100

Get Best Price

Chat now

Product Details

Product Description

Highlight:
                                                                                                            High Performance   Rc Flight Controller, Plane Flight Controller High Performance, Kakute H7  Plane Flight Controller


BetaFlight:	KakuteH7 (v4.2.11 And Above)	INAV:	KakuteH7 (4.0.0 & Above) SD Card Support Added In 4.1.0
ArduPilot:	KakuteH7 (4.2.0 & Above)

BetaFlight:	KakuteH7 (v4.2.11 And Above)
INAV:	KakuteH7 (4.0.0 & Above) SD Card Support Added In 4.1.0
ArduPilot:	KakuteH7 (4.2.0 & Above)

Kakute H7 V1.3 Stacks Rc Plane Flight Controller High Performance

Kakute H7 V1.3 Stacks RC Plane Flight Controller High Performance

Product Attributes

Attribute	Value
BetaFlight	KakuteH7 (v4.2.11 and above)
INAV	KakuteH7 (4.0.0 & above) SD card support added in 4.1.0
ArduPilot	KakuteH7 (4.2.0 & above)

Product Description

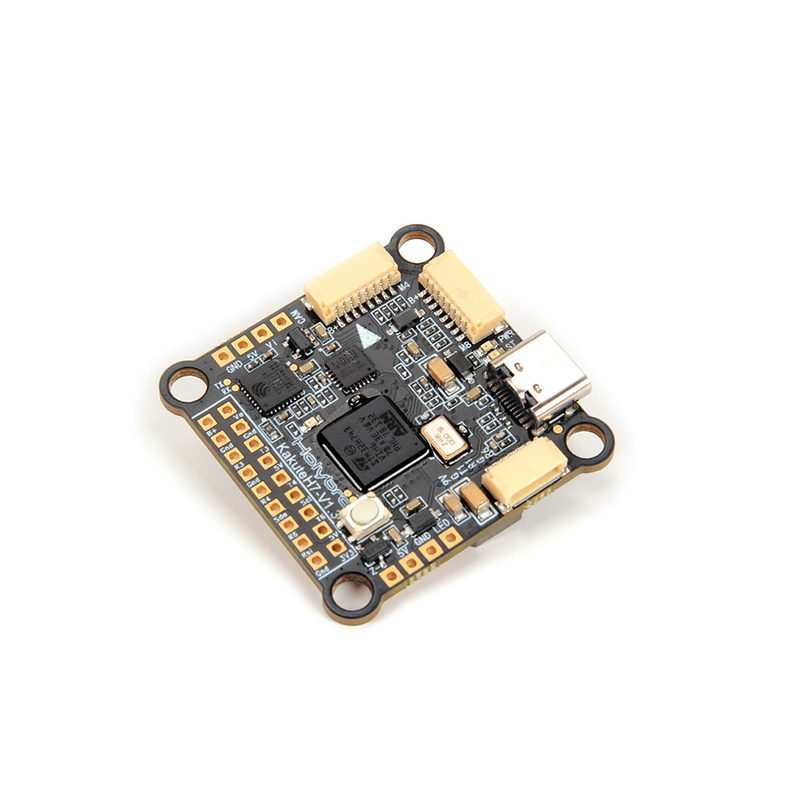

The Kakute H7 v1.3 stack combines the Kakute H7 v1.3 flight controller with compatible Electronic Speed Controllers (ESCs) and a Power Distribution Board (PDB) to form a cohesive, high-performance unit for FPV drones.

Specifications

MCU: STM32H743 32-bit processor running at 480 MHz

IMU: MPU6000

Barometer: BMP280

OSD: AT7456E

Onboard Bluetooth chip: ESP32-C3 SpeedyBee IOS & Android App Compatible

Note: Bluetooth automatically turns off when flight controller is unlocked (arm) and turns on when locked (disarm).

6x UARTs: (1,2,3,4,6,7; UART2 used for Bluetooth telemetry)

9x PWM Outputs: (8 Motor Output, 1 LED)

2x JST-SH1.0 8pin ESC port: (4in1 ESCs, x8/Octocopter compatible)

1x JST-SH1.0 6pin VTX port: (For HD System like Caddx Vista & Air Unit)

Battery input voltage: 7V to 42V

BEC: 5V 2A Cont., 9V 3A Cont

USB: Type-C

Mounting: 30.5 x 30.5mm/Φ4mm hole with Φ3mm Grommets

Dimension: 35x35mm

Weight: 8g

Our Services

1 Year Warranty - Buy with confidence

14-day return policy for unsatisfied customers (contact required before return)

Defective item replacement within 3 months at no extra charge

Post-3-month replacements available (customer pays shipping)

Frequently Asked Questions

Q1: Do you support OEM/ODM?

A1: Yes. We can print your logo on the product.

Q2: About samples.

A2: Samples ready in 7 days (10-20 days for OEM/ODM). Sample fee and shipping charged.

Q3: What is the delivery time?

A3: Regular orders ship within 15 days, OEM/ODM within 25-45 days (quantity dependent).

Q4: What is the minimum order quantity?

A4: No MOQ for wholesale (1 piece accepted), including OEM/ODM.

Q5: What are your payment terms?

A5: L/C.TT100%.

Q6: Can you reduce the shipping cost?

A6: We always choose the cheapest, safest shipping option. Customers may arrange their own shipping.

Q7: Return policy.

A7: Replacement requests must be made within 7 days of receipt. Items must be in original condition with customer paying return shipping.
