Compact Kakute H7 Mini Flight Controller Stacks Long Service Life

Product Details

Brand Name: GS

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: Negotiable

Delivery Time: 6~8

Payment Terms: T/T

Supply Ability: 100

Get Best Price

Product Details

Product Description

Highlight:
                                                Kakute H7 Mini Flight Controller, Compact Mini Flight Controller, Kakute H7 flight controller stack

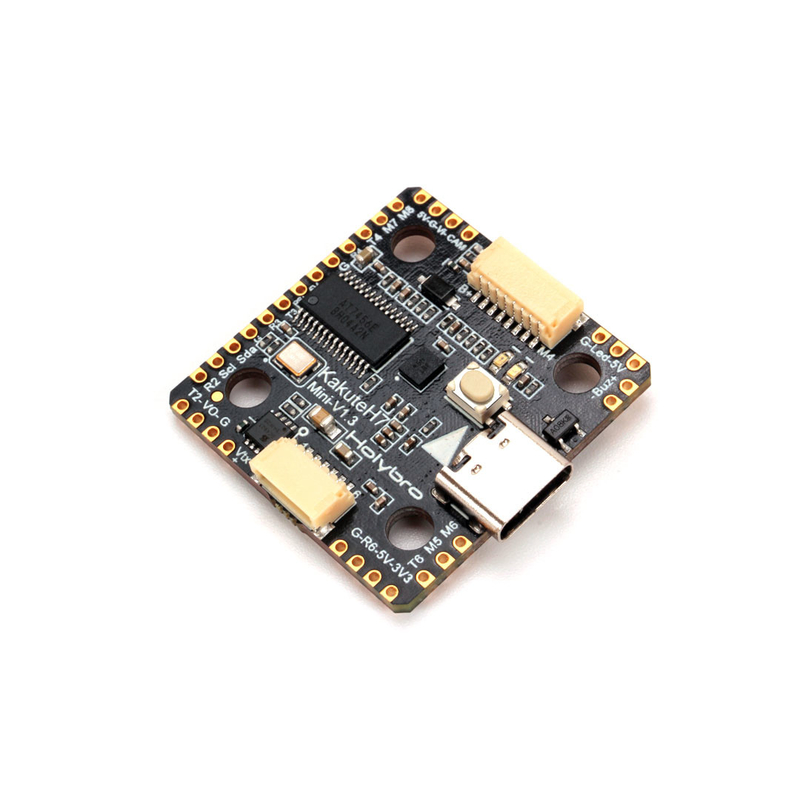

Compact Kakute H7 Mini Flight Controller Stacks Long Service Life

Kakute H7 Mini Flight Controller

The Kakute F722 Stacks are advanced flight controller stacks designed for FPV (First Person View) racing drones and freestyle quadcopters. These stacks combine the Kakute F7 flight controller with various Electronic Speed Controllers (ESCs) and Power Distribution Boards (PDBs) to provide a streamlined and high-performance solution for drone builders.

Specification

MCU STM32H743 32-bit processor running at 480 MHz

IMU BMI270 (Currently shipping)

Barometer BMP280

OSD AT7456E

Onboard Flash 128Mbits

VTX ON/OFF Pit Switch Switch can be enable using USER1 in Betaflight Mode tab. Warning: Do not enable this pit switch if you are using DJI FPV Remote Controller

UARTs 6x (1,2,3,4,6,7)

PWM Outputs 9x (8 Motor Output, 1 LED)

Battery input voltage 2S-6S BEC 5V 2A

Mounting 20 x 20mm, Φ3.6mm hole with M3 & M2 Grommets

Dimension 31x30x6mm

Weight 5.5g

JST-SH1.0_8pin port For 4in1 ESCs

JST-SH1.0_6pin port For DJI/Caddx HD System and other VTX

Our Services

We provide 1 Year Warranty. Buy with confidence.

If you are not satisfied when you receive your item, please return it within 14 days for a replacement or money back. Please contact me before you return it.

If item is defective in 3 months, We will send you a replacement without extra charger, or offer refund after we receive the defective item.

If item is defective after 3 months, you can still send it back to us. We will send you a new one after receiving the defective item. But you have to pay the extra shipping fee.

FAQ

Q1: Do you support OEM/ODM?

A1: Yes. We can print your logo on the product.

Q2: About samples.

A2: Under normal circumstances, samples will be ready within 7 days, and 10-20 days for OEM/ODM orders. Sample fee and shipping will be charged.

Q3: What is the delivery time?

A3: For regular orders, we can ship within 15 days, for OEM/ODM, we can ship within 25-45 days (depending on the quantity). In the event of delays, we will notify you in advance of the status and resolution.

Q4: What is the minimum order quantity?

A4: There is no MOQ for wholesale (1 piece accepted), including OEM/ODM.

Q5: What are your payment terms?

A5: L/C.TT100%.

Q6: Can you reduce the shipping cost?

A6: When calculating the shipping cost for you, we always choose the cheapest and safest express. Although we have partnerships with shipping companies, we can't keep costs down because it's not us who get paid. If you think it's expensive for you. You can always make your own choice.

Q7: Return policy.

A7: If you want to replace the received item, you must contact us within 7 days after receiving the item. Returned items should be in their original condition and you should pay for additional shipping.
