Highlight:
                                                                                                                                                                                                                                                                                                                                                                                    GPS Flight Controller, Helical Flight Controller, Ultralight Flight Controller


SKU:	SKU12018	Application:	Rover (aircraft) Or Base Station
GNSS:	GPS L1C/A GPS L2C GLONASS L1Oz GLONASS L2OFz) BeiDou B1 BeiDou B2Hz) Galileo E1-B/CH Galileo E5b	Antennas Peak Gain (MAX):	2dBi
LNA Gain (typical):	33±2dB	Time-TO-First Fix:	Cold Start:≤25s Hot Start:≤1s
RTK-SurveyIn-Time:	≤5 Minute @2.0mCEP	Antenna Connection Type:	Board: SMA Female Antenna: SMA Male
Baud Rate::	115200 5Hz (default) Can Be Set	Working Voltage::	4.75V~5.25V
Current Consumption:	~250mA	Product Model H-RTK F9P Rover H-RTK F9P Helical H-RTK F9P Base SKU SKU12017 & SKU12025 SKU12018 S:	Board: 34.852.712.9mm Antenna Diameter: 27.5mm Antenna Height: 59mm
IP Rating:	N/A	Weight:	49g

SKU:	SKU12018
Application:	Rover (aircraft) Or Base Station
GNSS:	GPS L1C/A GPS L2C GLONASS L1Oz GLONASS L2OFz) BeiDou B1 BeiDou B2Hz) Galileo E1-B/CH Galileo E5b
Antennas Peak Gain (MAX):	2dBi
LNA Gain (typical):	33±2dB
Time-TO-First Fix:	Cold Start:≤25s Hot Start:≤1s
RTK-SurveyIn-Time:	≤5 Minute @2.0mCEP
Antenna Connection Type:	Board: SMA Female Antenna: SMA Male
Baud Rate::	115200 5Hz (default) Can Be Set
Working Voltage::	4.75V~5.25V
Current Consumption:	~250mA
Product Model H-RTK F9P Rover H-RTK F9P Helical H-RTK F9P Base SKU SKU12017 & SKU12025 SKU12018 S:	Board: 34.852.712.9mm Antenna Diameter: 27.5mm Antenna Height: 59mm
IP Rating:	N/A
Weight:	49g

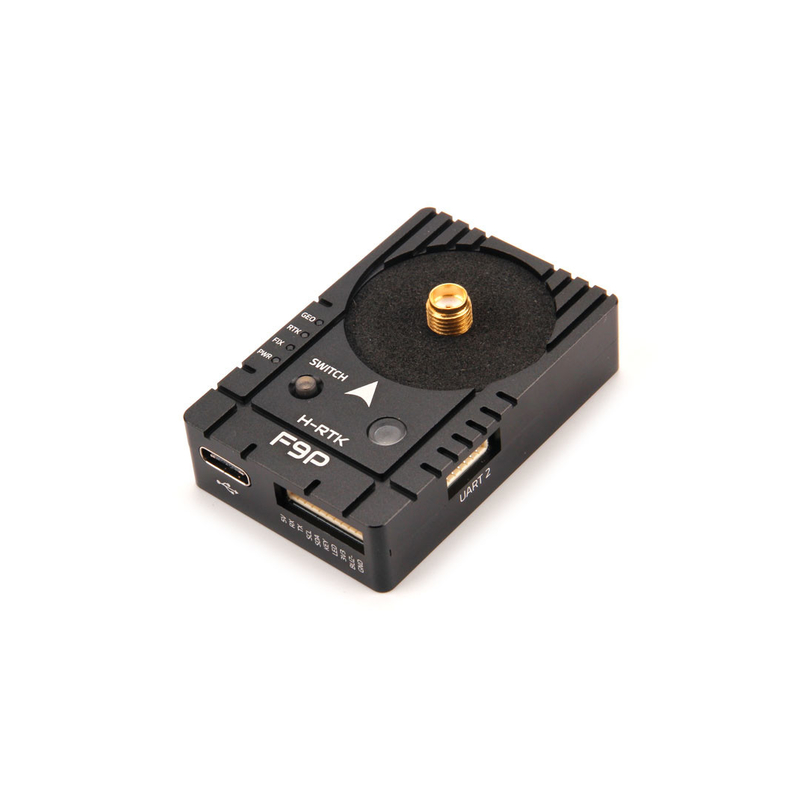

H-RTK F9P Helical Flight Controller

Product Specifications

Attribute	Value
SKU	SKU12018
Application	Rover (aircraft) or base station
GNSS	GPS L1C/A GPS L2C GLONASS L1Oz GLONASS L2OFz) BeiDou B1 BeiDou B2Hz) Galileo E1-B/CH Galileo E5b
Antennas Peak Gain (MAX)	2dBi
LNA Gain (typical)	33±2dB
Time-TO-First Fix	Cold start:≤25s Hot start:≤1s
RTK-SurveyIn-Time	≤5 minute @2.0mCEP
Antenna Connection Type	Board: SMA female Antenna: SMA male
Baud rate	115200 5Hz (default) can be set
Working voltage	4.75V~5.25V
Current Consumption	~250mA
Dimensions	Board: 34.852.712.9mm Antenna Diameter: 27.5mm Antenna height: 59mm
IP Rating	N/A
Weight	49g

Product Features

Helical antenna design offers superior performance compared to lite versions
Dual-purpose functionality for both rover (aircraft) and base station applications
Durable aluminum alloy shell with integrated safety switch
Tri-colored LED indicator for status monitoring
Compatible with open source Pixhawk-Standard Flight Controller

Key Components

u-blox F9P Module: High-precision GNSS module supporting multiple satellite systems with centimeter-level accuracy when used with RTK correction data
H-RTK: High-precision Real-Time Kinematics capability for enhanced GNSS positioning accuracy
Helical Antenna: Compact design with circular polarization ideal for high-precision RTK applications
