Product Details
Brand Name: GS
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: negotiable
Delivery Time: 6~8
Payment Terms: T/T
Supply Ability: 100
|
SKU:
|
SKU12022
|
Application:
|
Base Station Only
|
GNSS:
|
GPS L1C/A GPS L2C GLONASS L1Oz GLONASS L2OFz) BeiDou B1 BeiDou B2Hz) Galileo E1-B/CH Galileo E5b
|
Antennas Peak Gain (MAX):
|
5.5dBi
|
LNA Gain (typical):
|
40±2dB
|
Time-TO-First Fix:
|
Cold Start:≤24s Hot Start:≤1s
|
RTK-SurveyIn-Time:
|
≤5 Minute @1.5mCEP
|
Data And Update Rate:
|
RAW: 20Hz Max RTK: 8Hz Max Moving Base RTK: 5Hz Max
|
Port:
|
Port 1: GH1.25 10-pin Port 2: USB Type-c Port 3: UART 2 (GH1.25 6pin)
|
Cable Length:
|
SMA-TNC: 5m
|
Antenna Connection Type:
|
Board: SMA Female Antenna: TNC Female Male-male SMA-TNC Cable Length: 5m (included)
|
Baud Rate::
|
115200 5Hz (default) Can Be Set
|
Working Voltage::
|
4.75V~5.25V
|
Current Consumption:
|
~250mA
|
Product Model H-RTK F9P Rover H-RTK F9P Helical H-RTK F9P Base SKU SKU12017 & SKU12025 SKU12018 S:
|
Board: 34.8*52.7*12.9mm Antenna Diameter: 152mm Antenna Height: 62.2mm
|
IP Rating:
|
N/A
|
Weight:
|
469g
|
|
SKU:
|
SKU12022
|
|
Application:
|
Base Station Only
|
|
GNSS:
|
GPS L1C/A GPS L2C GLONASS L1Oz GLONASS L2OFz) BeiDou B1 BeiDou B2Hz) Galileo E1-B/CH Galileo E5b
|
|
Antennas Peak Gain (MAX):
|
5.5dBi
|
|
LNA Gain (typical):
|
40±2dB
|
|
Time-TO-First Fix:
|
Cold Start:≤24s Hot Start:≤1s
|
|
RTK-SurveyIn-Time:
|
≤5 Minute @1.5mCEP
|
|
Data And Update Rate:
|
RAW: 20Hz Max RTK: 8Hz Max Moving Base RTK: 5Hz Max
|
|
Port:
|
Port 1: GH1.25 10-pin Port 2: USB Type-c Port 3: UART 2 (GH1.25 6pin)
|
|
Cable Length:
|
SMA-TNC: 5m
|
|
Antenna Connection Type:
|
Board: SMA Female Antenna: TNC Female Male-male SMA-TNC Cable Length: 5m (included)
|
|
Baud Rate::
|
115200 5Hz (default) Can Be Set
|
|
Working Voltage::
|
4.75V~5.25V
|
|
Current Consumption:
|
~250mA
|
|
Product Model H-RTK F9P Rover H-RTK F9P Helical H-RTK F9P Base SKU SKU12017 & SKU12025 SKU12018 S:
|
Board: 34.8*52.7*12.9mm Antenna Diameter: 152mm Antenna Height: 62.2mm
|
|
IP Rating:
|
N/A
|
|
Weight:
|
469g
|
| Attribute | Value |
|---|---|
| SKU | SKU12022 |
| Application | Base station only |
| GNSS | GPS L1C/A GPS L2C GLONASS L1Oz GLONASS L2OFz) BeiDou B1 BeiDou B2Hz) Galileo E1-B/CH Galileo E5b |
| Antennas Peak Gain (MAX) | 5.5dBi |
| LNA Gain (typical) | 40±2dB |
| Time-To-First Fix | Cold start: ≤24s Hot start: ≤1s |
| RTK-SurveyIn-Time | ≤5 minute @1.5mCEP |
| Data and Update Rate | RAW: 20Hz Max RTK: 8Hz Max Moving Base RTK: 5Hz Max |
| Port | Port 1: GH1.25 10-pin Port 2: USB Type-c Port 3: UART 2 (GH1.25 6pin) |
| Cable Length | SMA-TNC: 5m |
| Antenna Connection Type | Board: SMA female Antenna: TNC female Male-male SMA-TNC cable length: 5m (included) |
| Baud rate | 115200 5Hz (default) can be set |
| Working voltage | 4.75V~5.25V |
| Current Consumption | ~250mA |
| Dimensions | Board: 34.8*52.7*12.9mm Antenna Diameter: 152mm Antenna height: 62.2mm |
| IP Rating | N/A |
| Weight | 469g |

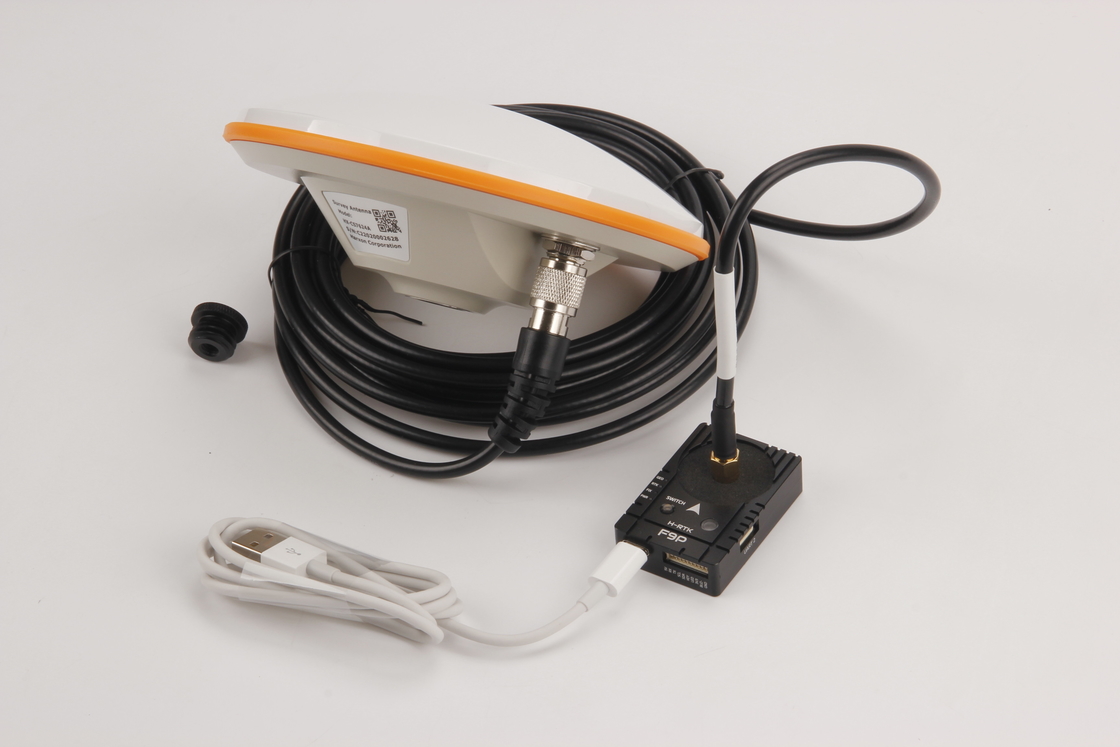

The H-RTK F9P Base is a high-precision GNSS module designed specifically for base station applications in RTK (Real-Time Kinematic) systems. This cost-effective solution delivers exceptional performance while maintaining a lightweight design.
