Product Details
Brand Name: GS
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: negotiable
Delivery Time: 6~8
Payment Terms: T/T
Supply Ability: 100
|
GNSS Receiver:
|
Ublox NEO M9N
|
Number Of Concurrent GNSS:
|
Up To 4 GNSS (GPS, Galileo, GLONASS, BeiDou)
|
Processor:
|
STM32G4 (170MHz, 512K FLASH)
|
Compass:
|
BMM150 Or IST8310
|
Frequency Band:
|
GPS: L1C/A GLONASS: L10F Beidou: B1I Galileo: E1B/C
|
GNSS Augmentation System:
|
SBAS: WAAS, EGNOS, MSAS, QZSS
|
Navigation Update:
|
5Hz Default(10Hz MAX)
|
Accuracy:
|
2.5m
|
Speed Accuracy:
|
0.05 M/s
|
Max # Of Satellites:
|
22+
|
Communication Protocol:
|
DroneCAN @ 1 Mbit/s
|
Supports Autopilot FW:
|
PX4, Ardupilot
|
Port Type:
|
GHR-04V-S
|
Antenna:
|
25 X 25 X 4 Mm Ceramic Patch Antenna
|
Power Consumption:
|
Less Than 200mA @ 5V
|
Voltage:
|
4.7-5.2V
|
Operating Temperature:
|
-40~80℃
|
Size:
|
Diameter: 54mm Thickness: 14.5mm
|
Weight:
|
36g
|
Cable Length:
|
26cm
|
Other Notes:
|
- LNA MAX2659ELT+ RF Amplifier - Rechargeable Farah Capacitance - Low Noise 3.3V Regulator
|
|
GNSS Receiver:
|
Ublox NEO M9N
|
|
Number Of Concurrent GNSS:
|
Up To 4 GNSS (GPS, Galileo, GLONASS, BeiDou)
|
|
Processor:
|
STM32G4 (170MHz, 512K FLASH)
|
|
Compass:
|
BMM150 Or IST8310
|
|
Frequency Band:
|
GPS: L1C/A GLONASS: L10F Beidou: B1I Galileo: E1B/C
|
|
GNSS Augmentation System:
|
SBAS: WAAS, EGNOS, MSAS, QZSS
|
|
Navigation Update:
|
5Hz Default(10Hz MAX)
|
|
Accuracy:
|
2.5m
|
|
Speed Accuracy:
|
0.05 M/s
|
|
Max # Of Satellites:
|
22+
|
|
Communication Protocol:
|
DroneCAN @ 1 Mbit/s
|
|
Supports Autopilot FW:
|
PX4, Ardupilot
|
|
Port Type:
|
GHR-04V-S
|
|
Antenna:
|
25 X 25 X 4 Mm Ceramic Patch Antenna
|
|
Power Consumption:
|
Less Than 200mA @ 5V
|
|
Voltage:
|
4.7-5.2V
|
|
Operating Temperature:
|
-40~80℃
|
|
Size:
|
Diameter: 54mm Thickness: 14.5mm
|
|
Weight:
|
36g
|
|
Cable Length:
|
26cm
|
|
Other Notes:
|
- LNA MAX2659ELT+ RF Amplifier - Rechargeable Farah Capacitance - Low Noise 3.3V Regulator
|
| Attribute | Value |
|---|---|
| GNSS Receiver | Ublox NEO M9N |
| Number of Concurrent GNSS | Up to 4 GNSS (GPS, Galileo, GLONASS, BeiDou) |
| Processor | STM32G4 (170MHz, 512K FLASH) |
| Compass | BMM150 or IST8310 |
| Frequency Band | GPS: L1C/A GLONASS: L10F Beidou: B1I Galileo: E1B/C |
| GNSS Augmentation System | SBAS: WAAS, EGNOS, MSAS, QZSS |
| Navigation Update | 5Hz Default(10Hz MAX) |
| Accuracy | 2.5m |
| Speed Accuracy | 0.05 m/s |
| Max # of Satellites | 22+ |
| Communication Protocol | DroneCAN @ 1 Mbit/s |
| Supports Autopilot FW | PX4, Ardupilot |
| Port Type | GHR-04V-S |
| Antenna | 25 x 25 x 4 mm ceramic patch antenna |
| Power consumption | Less than 200mA @ 5V |
| Voltage | 4.7-5.2V |
| Operating Temperature | -40~80℃ |
| Size | Diameter: 54mm Thickness: 14.5mm |
| Weight | 36g |
| Cable Length | 26cm |
| Other Notes | LNA MAX2659ELT+ RF Amplifier - Rechargeable Farah capacitance - Low noise 3.3V regulator |

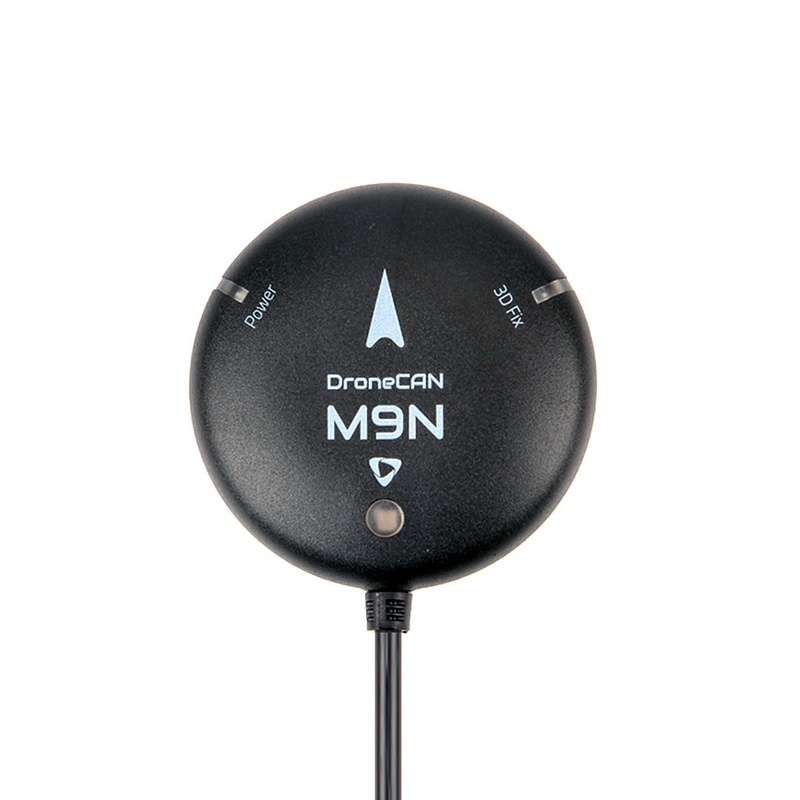

The DroneCAN M9N GPS module is a high-precision GPS receiver designed for drones and UAVs (Unmanned Aerial Vehicles). Featuring the u-blox M9N GNSS chipset, it delivers centimeter-level accuracy when used with Real-Time Kinematic (RTK) correction services, making it ideal for applications requiring precise positioning such as mapping, surveying, precision agriculture, and autonomous navigation.
Integration involves connecting to the drone's flight controller, configuring satellite signal reception, and optionally implementing RTK corrections for enhanced precision. This module is preferred in professional and commercial drone applications where accuracy and reliability are critical.
