Product Details
Brand Name: GS
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: negotiable
Delivery Time: 6~8
Payment Terms: T/T
Supply Ability: 100
|
Intended Application:
|
Rover (aircraft) Only
|
GNSS Receiver:
|
U-blox ZED-F9P High Precision GNSS Module
|
Antenna:
|
Ceramic Patch Antenna With 20dB LNA
|
Processor:
|
STM32G473
|
Magnetometer:
|
BMM150 Or IST8310
|
Positioning Accuracy:
|
3D FIX: 1.5 M / RTK: 0.01 M
|
Communication Protocol:
|
DroneCAN 1Mbit/s
|
Antennas Peak Gain (MAX):
|
L1: 4.0dBi L2:1.0 DBi
|
Time-TO-First Fix:
|
Cold Start: ≤29s Hot Start: ≤1s
|
Navigation Update Rate:
|
RAW: 20Hz Max RTK: 8Hz Max
|
Cable Length:
|
27cm Or 50cm
|
Antenna Connection Type:
|
N/A
|
Working Voltage:
|
4.75V~5.25V
|
Current Consumption:
|
~250mA
|
|
Intended Application:
|
Rover (aircraft) Only
|
|
GNSS Receiver:
|
U-blox ZED-F9P High Precision GNSS Module
|
|
Antenna:
|
Ceramic Patch Antenna With 20dB LNA
|
|
Processor:
|
STM32G473
|
|
Magnetometer:
|
BMM150 Or IST8310
|
|
Positioning Accuracy:
|
3D FIX: 1.5 M / RTK: 0.01 M
|
|
Communication Protocol:
|
DroneCAN 1Mbit/s
|
|
Antennas Peak Gain (MAX):
|
L1: 4.0dBi L2:1.0 DBi
|
|
Time-TO-First Fix:
|
Cold Start: ≤29s Hot Start: ≤1s
|
|
Navigation Update Rate:
|
RAW: 20Hz Max RTK: 8Hz Max
|
|
Cable Length:
|
27cm Or 50cm
|
|
Antenna Connection Type:
|
N/A
|
|
Working Voltage:
|
4.75V~5.25V
|
|
Current Consumption:
|
~250mA
|
| Attribute | Value |
|---|---|
| Intended Application | Rover (aircraft) only |
| GNSS Receiver | U-blox ZED-F9P high precision GNSS module |
| Antenna | Ceramic Patch Antenna with 20dB LNA |
| Processor | STM32G473 |
| Magnetometer | BMM150 or IST8310 |
| Positioning accuracy | 3D FIX: 1.5 m / RTK: 0.01 m |
| Communication Protocol | DroneCAN 1Mbit/s |
| Antennas Peak Gain (MAX) | L1: 4.0dBi L2:1.0 dBi |
| Time-TO-First Fix | Cold start: ≤29s Hot start: ≤1s |
| Navigation Update Rate | RAW: 20Hz Max RTK: 8Hz Max |
| Cable Length | 27cm or 50cm |
| Antenna Connection Type | N/A |
| Working voltage | 4.75V~5.25V |
| Current Consumption | ~250mA |

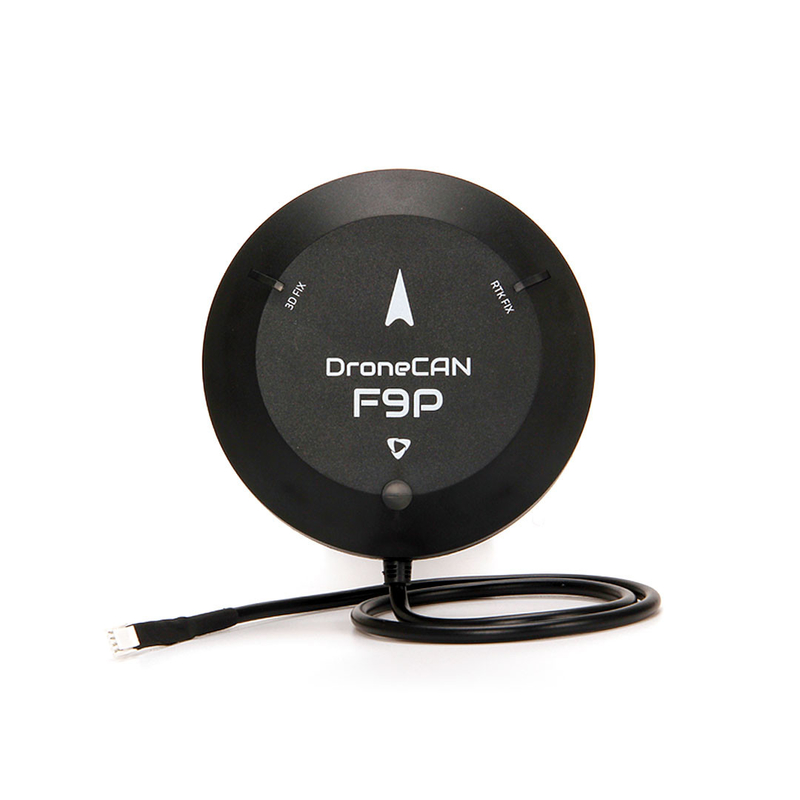

The DroneCAN H-RTK F9P Rover is a high-precision GNSS (Global Navigation Satellite System) receiver designed for use in UAVs (unmanned aerial vehicles), robotics, and other applications requiring accurate positioning data. It is based on the u-blox ZED-F9P module, which supports multi-band GNSS signals, providing centimeter-level positioning accuracy.
The DroneCAN-F9P uses a u-blox ZED-F9P module, a BMM150 compass, and a tri-colored LED indicator, and is equipped with the STM32G4 processor running at 170 MHz with 512 KByte Flash and 96KByte RAM. It supports DroneCAN firmware upgrade via the DroneCAN GUI Tool. It is compatible with the open source Pixhawk series flight controller.
