Product Details
Brand Name: GS
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: negotiable
Delivery Time: 6~8
Payment Terms: T/T
Supply Ability: 100
|
Current Consumption:
|
~250mA
|
Intended Application:
|
Rover (aircraft) Or Base Station
|
GNSS Receiver:
|
U-blox ZED-F9P High Precision GNSS Module
|
Antenna:
|
Helical Antenna With 36dB LNA
|
Processor:
|
STM32G473
|
Magnetometer:
|
BMM150 Or IST8310
|
Positioning Accuracy:
|
3D FIX: 1.5 M / RTK: 0.01 M
|
Communication Protocol:
|
DroneCAN 1Mbit/s
|
Antennas Peak Gain (MAX):
|
L1: 2dBi L2: 2dBi
|
Time-TO-First Fix:
|
Cold Start: ≤25s Hot Start: ≤1s
|
Navigation Update Rate:
|
RAW: 20Hz Max RTK: 8Hz Max Moving Base RTK: 5Hz Max
|
Cable Length:
|
N/A
|
Antenna Connection Type:
|
Board: SMA Female Antenna: SMA Male
|
Working Voltage:
|
4.75V~5.25V
|
|
Current Consumption:
|
~250mA
|
|
Intended Application:
|
Rover (aircraft) Or Base Station
|
|
GNSS Receiver:
|
U-blox ZED-F9P High Precision GNSS Module
|
|
Antenna:
|
Helical Antenna With 36dB LNA
|
|
Processor:
|
STM32G473
|
|
Magnetometer:
|
BMM150 Or IST8310
|
|
Positioning Accuracy:
|
3D FIX: 1.5 M / RTK: 0.01 M
|
|
Communication Protocol:
|
DroneCAN 1Mbit/s
|
|
Antennas Peak Gain (MAX):
|
L1: 2dBi L2: 2dBi
|
|
Time-TO-First Fix:
|
Cold Start: ≤25s Hot Start: ≤1s
|
|
Navigation Update Rate:
|
RAW: 20Hz Max RTK: 8Hz Max Moving Base RTK: 5Hz Max
|
|
Cable Length:
|
N/A
|
|
Antenna Connection Type:
|
Board: SMA Female Antenna: SMA Male
|
|
Working Voltage:
|
4.75V~5.25V
|
| Attribute | Value |
|---|---|
| Current Consumption | ~250mA |
| Intended Application | Rover (aircraft) or Base station |
| GNSS Receiver | U-blox ZED-F9P high precision GNSS module |
| Antenna | Helical Antenna with 36dB LNA |
| Processor | STM32G473 |
| Magnetometer | BMM150 or IST8310 |
| Positioning accuracy | 3D FIX: 1.5 m / RTK: 0.01 m |
| Communication Protocol | DroneCAN 1Mbit/s |
| Antennas Peak Gain (MAX) | L1: 2dBi L2: 2dBi |
| Time-TO-First Fix | Cold start: ≤25s Hot start: ≤1s |
| Navigation Update Rate | RAW: 20Hz Max RTK: 8Hz Max Moving Base RTK: 5Hz Max |
| Antenna Connection Type | Board: SMA female Antenna: SMA male |
| Working voltage | 4.75V~5.25V |

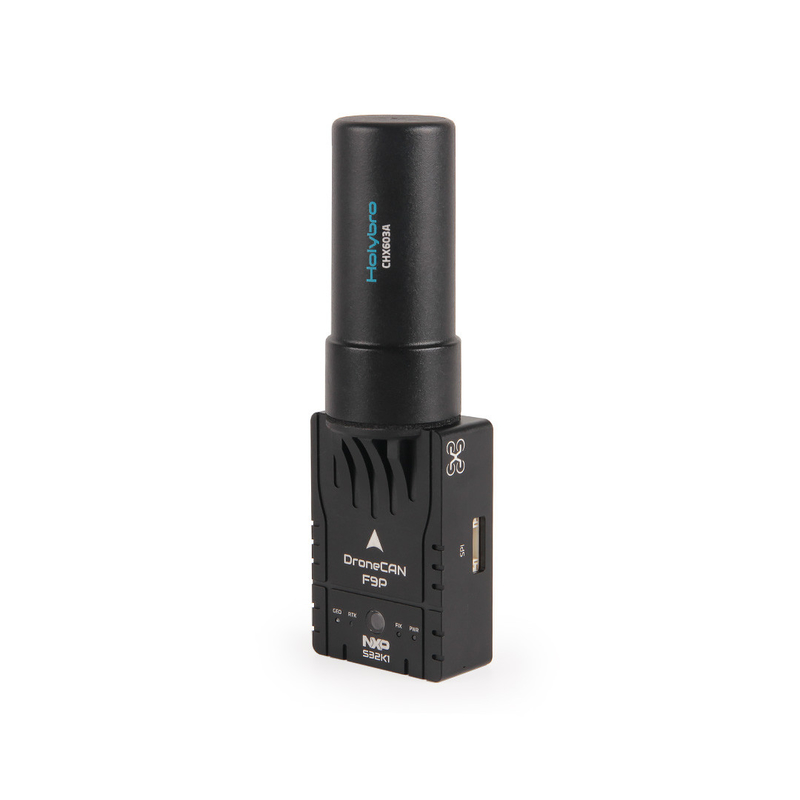

The DroneCAN H-RTK F9P Helical NXP S32K1 is a high-precision GNSS module featuring the u-blox ZED-F9P receiver, helical antenna, and NXP S32K1 microcontroller for robust data processing and communication. Designed for applications requiring centimeter-level positioning accuracy in UAVs, robotics, and surveying.
A1: Yes. We can print your logo on the product.
A2: Samples ready in 7 days (10-20 days for OEM/ODM). Sample fee and shipping charged.
A3: Regular orders ship in 15 days, OEM/ODM in 25-45 days. Delays communicated in advance.
A4: No MOQ - wholesale orders accepted from 1 piece, including OEM/ODM.
A5: L/C or TT 100% payment.
A6: We always select the most economical shipping option. Customers may choose their preferred carrier.
A7: Returns must be initiated within 7 days. Items must be in original condition with customer responsible for return shipping.
