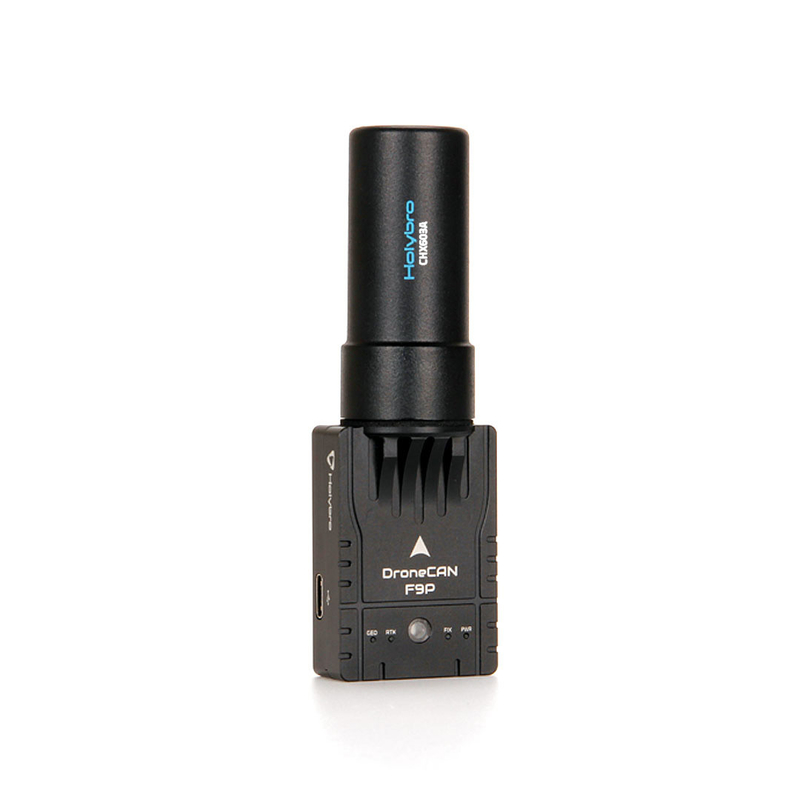

DroneCAN H-RTK F9P Helical

Product Details

Brand Name: GS

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: negotiable

Delivery Time: 6~8

Payment Terms: T/T

Supply Ability: 100

Get Best Price

Chat now

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                    High Accuracy Flight Controller, Compact Flight Controller, Flight Controller High Performance


Intended Application:	Rover (aircraft) Or Base Station	GNSS Receiver:	U-blox ZED-F9P High Precision GNSS Module
Antenna:	Helical Antenna With 36dB LNA	Processor:	STM32G473
Magnetometer:	BMM150 Or IST8310	Positioning Accuracy:	3D FIX: 1.5 M / RTK: 0.01 M
Communication Protocol:	DroneCAN 1Mbit/s	Antennas Peak Gain (MAX):	L1: 2dBi L2: 2dBi
Time-TO-First Fix:	Cold Start: ≤25s Hot Start: ≤1s	Navigation Update Rate:	RAW: 20Hz Max RTK: 8Hz Max Moving Base RTK: 5Hz Max
Cable Length:	N/A	Antenna Connection Type:	Board: SMA Female Antenna: SMA Male
Working Voltage:	4.75V~5.25V	Current Consumption:	~250mA

Intended Application:	Rover (aircraft) Or Base Station
GNSS Receiver:	U-blox ZED-F9P High Precision GNSS Module
Antenna:	Helical Antenna With 36dB LNA
Processor:	STM32G473
Magnetometer:	BMM150 Or IST8310
Positioning Accuracy:	3D FIX: 1.5 M / RTK: 0.01 M
Communication Protocol:	DroneCAN 1Mbit/s
Antennas Peak Gain (MAX):	L1: 2dBi L2: 2dBi
Time-TO-First Fix:	Cold Start: ≤25s Hot Start: ≤1s
Navigation Update Rate:	RAW: 20Hz Max RTK: 8Hz Max Moving Base RTK: 5Hz Max
Cable Length:	N/A
Antenna Connection Type:	Board: SMA Female Antenna: SMA Male
Working Voltage:	4.75V~5.25V
Current Consumption:	~250mA

DroneCAN H-RTK F9P Helical

Product Specifications

Attribute	Value
Intended Application	Rover (aircraft) or Base station
GNSS Receiver	U-blox ZED-F9P high precision GNSS module
Antenna	Helical Antenna with 36dB LNA
Processor	STM32G473
Magnetometer	BMM150 or IST8310
Positioning accuracy	3D FIX: 1.5 m / RTK: 0.01 m
Communication Protocol	DroneCAN 1Mbit/s
Antennas Peak Gain (MAX)	L1: 2dBi L2: 2dBi
Time-TO-First Fix	Cold start: ≤25s Hot start: ≤1s
Navigation Update Rate	RAW: 20Hz Max RTK: 8Hz Max Moving Base RTK: 5Hz Max
Antenna Connection Type	Board: SMA female Antenna: SMA male
Working voltage	4.75V~5.25V
Current Consumption	~250mA

Product Overview

The DroneCAN H-RTK F9P Helical is an advanced GNSS module designed for high-precision positioning in UAVs and robotic applications. This module integrates the u-blox ZED-F9P receiver with a helical antenna, offering multi-band GNSS capabilities and RTK support for professional and industrial use.

Key Features

High Precision: Utilizes the u-blox ZED-F9P receiver supporting multi-band GNSS signals with centimeter-level RTK accuracy
RTK Capabilities: Real-Time Kinematic positioning corrects satellite signal errors in real-time
Multi-Band GNSS: Receives signals from GPS, GLONASS, Galileo, and BeiDou constellations
Helical Antenna: High-performance design with superior multi-path rejection and consistent performance
DroneCAN Interface: Robust communication protocol for efficient data transfer and system integration
Robust Design: Built to withstand harsh environmental conditions
Compact Form Factor: Lightweight design ideal for UAV integration

The module features a u-blox ZED-F9P module, BMM150 compass, tri-colored LED indicator, and STM32G4 processor (170 MHz with 512KB Flash and 96KB RAM). It supports firmware upgrades via DroneCAN GUI Tool and is compatible with Pixhawk series flight controllers.

Our Services

1 Year Warranty included with purchase
14-day return policy for refund or replacement (contact required before return)
3-month free replacement for defective items
Post-3-month replacement available (customer responsible for return shipping)

Frequently Asked Questions

Q1: Do you support OEM/ODM?

A1: Yes. We can print your logo on the product.

Q2: About samples.

A2: Samples available in 7 days (10-20 days for OEM/ODM). Sample fee and shipping apply.

Q3: What is the delivery time?

A3: Regular orders ship in 15 days, OEM/ODM in 25-45 days (quantity dependent).

Q4: What is the minimum order quantity?

A4: No MOQ - wholesale orders accepted from 1 piece.

Q5: What are your payment terms?

A5: L/C or TT100% accepted.

Q6: Can you reduce the shipping cost?

A6: We always select the most economical shipping option available.

Q7: Return policy.

A7: Returns must be initiated within 7 days of receipt. Items must be in original condition.
