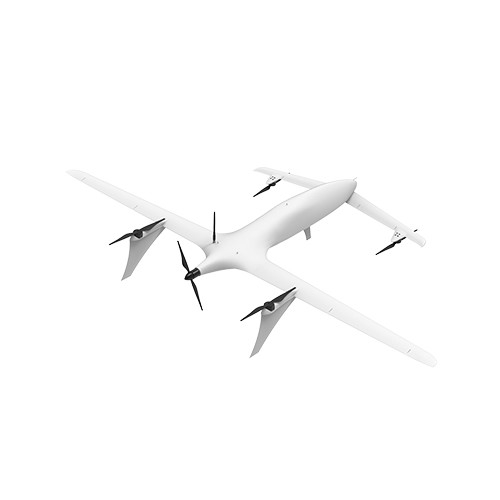

XUANWU Fixed Wing Drone VTOL Tandem Wing 150min Endurance 3kg Payload

Product Details

Place of Origin: China

Brand Name: GS

Model Number: XW

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: Negotiable

Delivery Time: 6~8

Payment Terms: T/T

Supply Ability: 500

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                150min Endurance Fixed Wing Drone VTOL, 150min long endurance vtol uav, 3kg Payload  Fixed Wing Drone VTOL


Length:	1660 Mm	Height:	215 Mm
Wingspan:	Front1440mm/rear 2860mm	Payload:	3kg
Take-off Weight:	15 Kg	Level Cruising Speed:	22 M/s
Endurance:	150 Min	Climb Rate:	4 M/s ( Fixed Wing )
Altitude:	5000 M	Temperature:	-20℃-50℃
Wind Resistance:	Take-off And Landing Level 5; Cruising Level 6	Payload Cabin Size:	3000x150x100(LWH)mm

Length:	1660 Mm
Height:	215 Mm
Wingspan:	Front1440mm/rear 2860mm
Payload:	3kg
Take-off Weight:	15 Kg
Level Cruising Speed:	22 M/s
Endurance:	150 Min
Climb Rate:	4 M/s ( Fixed Wing )
Altitude:	5000 M
Temperature:	-20℃-50℃
Wind Resistance:	Take-off And Landing Level 5; Cruising Level 6
Payload Cabin Size:	3000x150x100(LWH)mm

XUANWU Fixed Wing Drone VTOL Tandem Wing 150min Endurance 3kg Payload

Xuanwu Fixed Wing VTOL Drone

XW UAV Platform is a type of tandem layout vertical take-off and landing fixed wing uav, ofwhich thefuselage adopts aviation carbon fiber composite material with high strength and lightweight, The four motolseats and wings are integrated, which not only reduce the structuraweight brought by the vtol arm, but alsomake the transportation and assembly of the uay more convenient.

High High aerodynamic efficiency of the tandem fixed wing and multi-rotor mixed design layout, cantake-off and land vertically and has the advantages of unlimited site conditions, high aerodynamic efficiency,small air resistance and long flight time.

Specifications

Model	Xuanwu VTOL Drone
Flight time	Up to 150 minutes
Application	Mapping, Inspection, Delivery, Surveillance
Material	Carbon fiber composite

FAQ

What is the endurance of the Xuanwu VTOL drone?

It can fly up to 150 minutes in ideal conditions.

Is it capable of vertical takeoff and landing?

Yes, it supports full VTOL operation using tandem wings.

What material is used in the body?

The fuselage is made of carbon fiber composite.

What type of missions is it suitable for?

Ideal for mapping, inspection, delivery, and surveillance in complex environments.
