Product Details
Place of Origin: China
Brand Name: GS
Model Number: qinglong
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Delivery Time: 6~8
Payment Terms: T/T
Supply Ability: 500
|
Length:
|
2022 Mm
|
Height:
|
696 Mm
|
Wingspan:
|
Front 2820 Mm Rear 3744 Mm
|
Engine:
|
60 Cc Double Cvlinder Or Electric Motor
|
Payload:
|
10 Kg /electric 5kg
|
Take-off Weight:
|
35 Kg
|
Level Cruising Speed:
|
24-40 M/s( Fixed Wing )
|
Endurance:
|
10 H(take-off Weight 35kg,payload 8kg)/electric 2.5h
|
Climb Rate:
|
4 M/s ( Fixed Wing )
|
Altitude:
|
5000 M
|
Temperature:
|
-20℃-50℃
|
Wind Resistance:
|
Take-off Level 5/ Cruising Level 6
|
Oil Cabin:
|
6-10L(flight Test Data )
|
|
Length:
|
2022 Mm
|
|
Height:
|
696 Mm
|
|
Wingspan:
|
Front 2820 Mm Rear 3744 Mm
|
|
Engine:
|
60 Cc Double Cvlinder Or Electric Motor
|
|
Payload:
|
10 Kg /electric 5kg
|
|
Take-off Weight:
|
35 Kg
|
|
Level Cruising Speed:
|
24-40 M/s( Fixed Wing )
|
|
Endurance:
|
10 H(take-off Weight 35kg,payload 8kg)/electric 2.5h
|
|
Climb Rate:
|
4 M/s ( Fixed Wing )
|
|
Altitude:
|
5000 M
|
|
Temperature:
|
-20℃-50℃
|
|
Wind Resistance:
|
Take-off Level 5/ Cruising Level 6
|
|
Oil Cabin:
|
6-10L(flight Test Data )
|

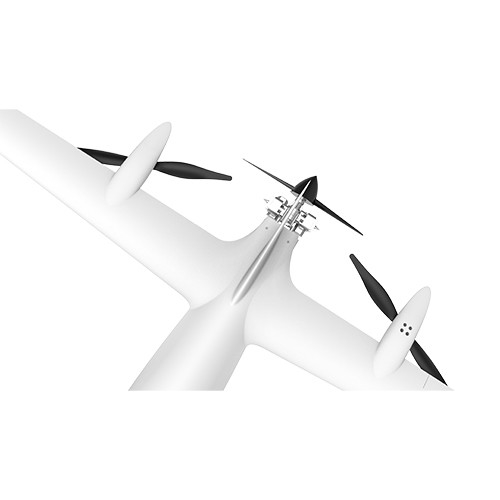

Combined design of tandem wing and multi-rotor, Qinglong can take-off and landingvertically, which don’t need special runway and large scale take-off and landing site. Be-cause of the high aerodynamic efficient layout, Qinglong’s flight time can reach over 10hours;
Cruising engine propeller is set in the tail of the fuselage to build a aerodynamic shape.which decreases the air resistance while increases the thrust force. Rear engine designleaves more space for large payload.
| Wingspan | 2022 mm |
|---|---|
| Length | Custom |
| Material | Toray 3K Carbon Fiber + Aviation Aluminum |
| Flight Mode | VTOL (Vertical Takeoff and Landing) |
| Max Flight Time | Up to 90 minutes |
| Payload Capacity | Up to 3 kg |
| Control Range | 30 km (line-of-sight) |
This VTOL UAV is ideal for mapping, surveillance, logistics, environmental monitoring, and remote inspections.
Yes. It supports autonomous mission planning through ground station software and RTK-based navigation.
Yes. The payload bay is modular and supports a wide range of sensors and devices.
The aircraft structure is wind-resistant up to level 6, ensuring stable flight in moderate outdoor conditions.
